High Lifter 6" Portal Gear Lift With 45% Single Idler PGL-645-GEN1

NOTES:

Want lift plus power and performance? High Lifter engineered a gearing setup for a 6'' portal with 45% gear reduction. You can run a larger tire size between a 33 to 39 inches and have the torque and horsepower you need. The 45% gear reduction is a robust set of portals giving height and power in any terrain. Mud Riding geared to get you out of the thickest mud holes and 6 inches of height to pass over anything that comes in your way. Rock Climbing 45% gear reduction makes that rocky terrain seem easy. You'll have the power to ease right over rocks and boulders, plus added lift to run big tires to go places your friends can't.

Why is this 6€ kit better than our competitor?

Forged Gear Boxes

• Strongest boxes on the market because forging produces a tougher piece of metal
• Forging is stronger than both cast and billet aluminum
• Competitors use cast aluminum and billet aluminum boxes
• These portal boxes are extremely robust and give you more worry-free miles than any other portal

Gear Box Venting

• Customers asked for box venting and we give you the option
• Our box design offers a plug for venting with an optional easy to install kit that will be available soon
• Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

• High density Kevlar fiber gaskets plus no additional sealant is needed
• Gasket material is creep resistant plus oil and coolant resistant

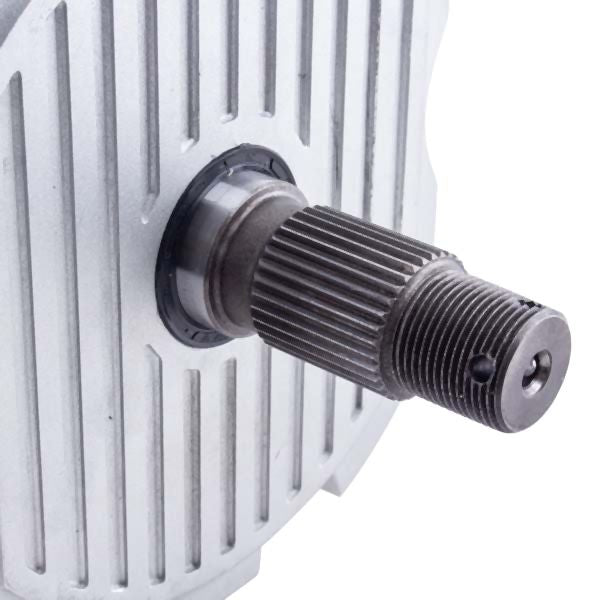

Seals

• Two oil seals on the spindle shaft for 100% more sealing area
• Dual seals prevent water intrusion and oil leaks
• True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

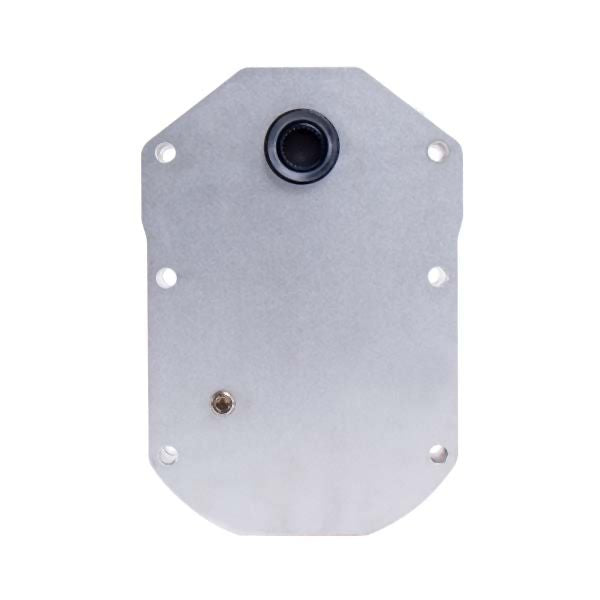

Backing Plate

• These are the strongest backing plates on the market
• 5/16€ steel plate with Bent flanges for strength and durability
• Welded gusset brackets and designed to factory off-set
• Works with all control arms that are built to factory hub specifications

13€ Rotor

• Precision ground stainless steel rotors (this is a big deal for brake performance)
• Access holes for ease of assembly and disassembly
• Slotted rotor allows for heat dissipation and cooling

Gear Profile

• Alloy steel heat treating process increases overall internal and external strength
• CNC precision ground machining ensures excellent fitment and increased strength
• Controlled gear lapping for ease of installation and a quieter performance

Brand: High Lifter
Part Number: PGL-645-GEN1

Fitment:

• 2016-2022 Polaris General 1000 Deluxe EPS
• 2022 Polaris General 1000 Deluxe Ride Command Edition
• 2016-2020 Polaris General 1000 EPS
• 2018-2022 Polaris General 1000 Premium EPS
• 2018 Polaris General 1000 Ride Command Edition EPS
• 2021-2022 Polaris General 1000 Sport
• 2020-2021 Polaris General 4 1000 Deluxe EPS
• 2020 Polaris General 4 1000 EPS
• 2017-2018 Polaris General 4 1000 EPS
• 2021 Polaris General 4 1000 Premium EPS
• 2015-2017 Polaris RZR 4 900 EPS
• 2015-2019 Polaris RZR 900 Trail EPS 50 inch
• 2020 Polaris RZR 900 Trail Fox Edition LE EPS
• 2015-2016 Polaris RZR 900 XC Edition
• 2017 Polaris RZR 900 XC Edition EPS
• 2016-2020 Polaris RZR S 1000 EPS
• 2015 Polaris RZR S 900
• 2018-2020 Polaris RZR S 900
• 2016-2017 Polaris RZR S 900 BASE
• 2015-2017 Polaris RZR S 900 EPS
• 2020 Polaris RZR S 900 Premium
• 2019-2020 Polaris RZR S4 1000 EPS
• 2021 Polaris RZR Trail 570 Premium
• 2020-2021 Polaris RZR Trail 900 Premium
• 2021 Polaris RZR Trail 900 Sport
• 2021 Polaris RZR Trail 900 Ultimate
• 2021 Polaris RZR Trail S 1000 Premium
• 2021 Polaris RZR Trail S 1000 Ultimate
• 2021 Polaris RZR Trail S 900 Premium
• 2021 Polaris RZR Trail S 900 Sport

Note: Image is for reference only, actual product may vary slightly.
