High Lifter 6" Portal Gear Lift With 60% Dual Idler PGL-660DI-GEN1

NOTES:

What are the Dual Idlers with 60% Reduction Kit? High Lifter has engineered is a gearing setup that allows us to place two idler gears in the portal gear box. Our competitor only has a single gear option with their greatest reduction at 45%. The dual idler gears spread the load between twice as many teeth on the gears, which doubles the area and reduces stress by half allowing more abuse. Like any other portal kit there will be a reduction in top speed when running the 6' Dual 60% gears. This kit is for riders who are looking for torque and power. The dual 60% is perfect for the hardcore mud rider that wants to hit the holes hard and come out on the other side!

What does the 60% Dual Idler Gear Lift offer?

• High Lifter improved the portal design by adding a second idler gear in the gear box
• The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
• You gain more reliable torque transfer
• If you run a 40€ tire or larger, this is the ideal gear ratio and the dual idler gears are almost a must
• Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears€¦
• 60% Gearing extends brake life by needing brakes less often due to greatly improved engine braking
• Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don€™t have a need to run fast, a lower ratio performs better and give you the power you want!

Why is this 6€ kit better than our competitor?

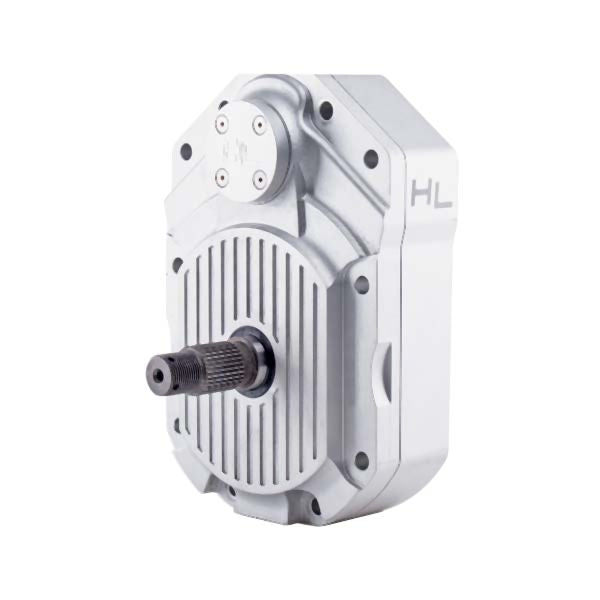

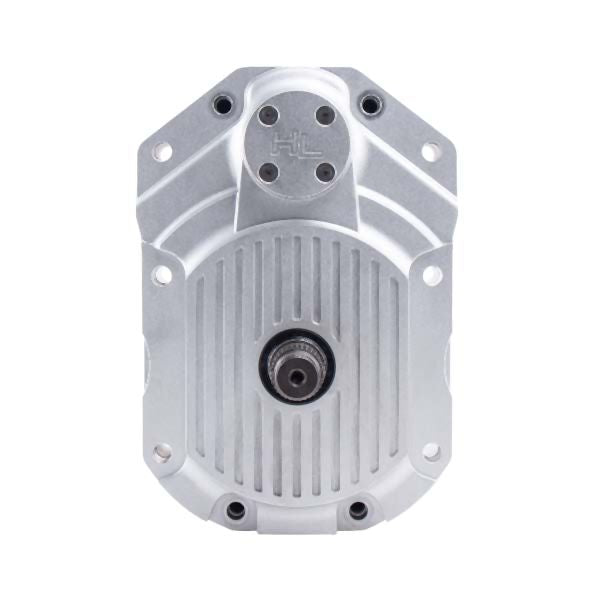

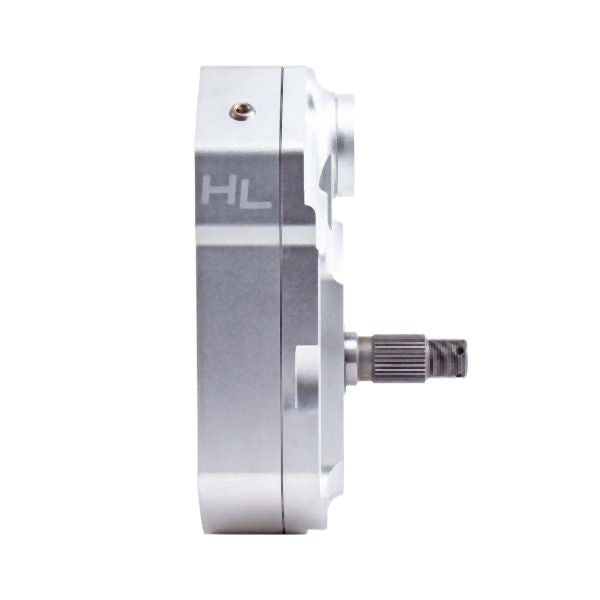

Forged Gear Boxes

• Strongest boxes on the market because forging produces a tougher piece of metal
• Forging is stronger than both cast and billet aluminum
• Competitors use cast aluminum and billet aluminum boxes
• These portal boxes are extremely robust and give you more worry-free miles than any other portal

Gear Box Venting

• Customers asked for box venting and we give you the option
• Our box design offers a plug for venting with an optional easy to install kit that will be available soon
• Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

• High density Kevlar fiber gaskets plus no additional sealant is needed
• Gasket material is creep resistant plus oil and coolant resistant

Seals

• Two oil seals on the spindle shaft for 100% more sealing area
• Dual seals prevent water intrusion and oil leaks

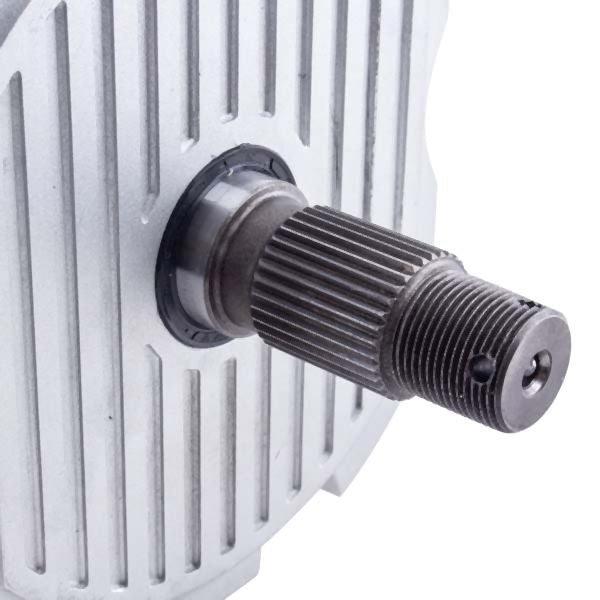

• True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

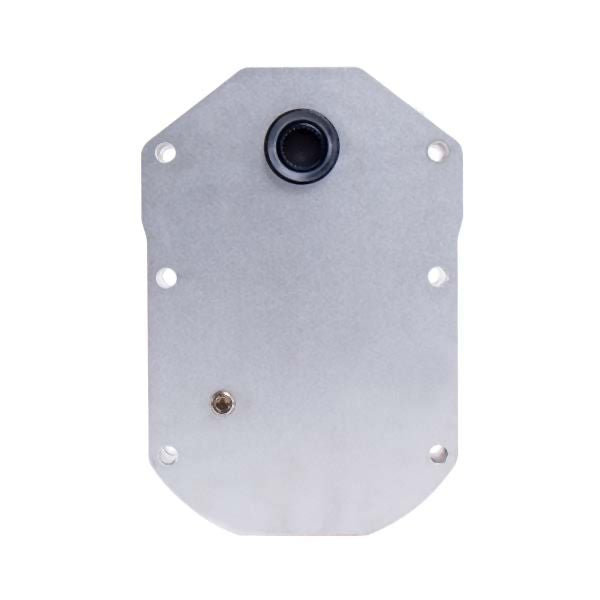

Backing Plate

• These are the strongest backing plates on the market
• 5/16€ steel plate with Bent flanges for strength and durability
• Welded gusset brackets and designed to factory off-set
• Works with all control arms that are built to factory hub specifications

13€ Rotor

• Precision ground stainless steel rotors (this is a big deal for brake performance)
• Access holes for ease of assembly and disassembly
• Slotted rotor allows for heat dissipation and cooling

Gear Profile

• Alloy steel heat treating process increases overall internal and external strength
• CNC precision ground machining ensures excellent fitment and increased strength
• Controlled gear lapping for ease of installation and a quieter performance

Brand: High Lifter
Part Number: PGL-660DI-GEN1

Fitment:

• 2016-2022 Polaris General 1000 Deluxe EPS
• 2022 Polaris General 1000 Deluxe Ride Command Edition
• 2016-2020 Polaris General 1000 EPS
• 2018-2022 Polaris General 1000 Premium EPS
• 2018 Polaris General 1000 Ride Command Edition EPS
• 2021-2022 Polaris General 1000 Sport
• 2020-2021 Polaris General 4 1000 Deluxe EPS
• 2020 Polaris General 4 1000 EPS
• 2017-2018 Polaris General 4 1000 EPS
• 2021 Polaris General 4 1000 Premium EPS
• 2015-2017 Polaris RZR 4 900 EPS
• 2015-2020 Polaris RZR 4 XP 1000 EPS
• 2015-2019 Polaris RZR 900
• 2017-2018 Polaris RZR 900 EPS
• 2015-2019 Polaris RZR 900 Trail EPS 50 inch
• 2015-2016 Polaris RZR 900 Trail EPS
• 2020 Polaris RZR 900 Trail Fox Edition LE EPS
• 2015-2016 Polaris RZR 900 XC Edition
• 2015-2017 Polaris RZR 900 XC Edition EPS
• 2016-2020 Polaris RZR S 1000 EPS
• 2015-2020 Polaris RZR S 900
• 2016-2017 Polaris RZR S 900 BASE
• 2015-2019 Polaris RZR S 900 EPS
• 2020 Polaris RZR S 900 Premium
• 2019-2020 Polaris RZR S4 1000 EPS
• 2018 Polaris RZR S4 900 EPS
• 2021-2023 Polaris RZR Trail 570 Premium
• 2020 Polaris RZR Trail 900
• 2020-2023 Polaris RZR Trail 900 Premium
• 2021-2023 Polaris RZR Trail 900 Sport
• 2021-2023 Polaris RZR Trail 900 Ultimate
• 2021-2023 Polaris RZR Trail S 1000 Premium
• 2021-2023 Polaris RZR Trail S 1000 Ultimate
• 2016-2020 Polaris RZR Trail S 1000
• 2020 Polaris RZR Trail S 900
• 2020-2021 Polaris RZR Trail S 900 Premium
• 2021-2023 Polaris RZR Trail S 900 Sport
• 2016-2017 Polaris RZR XP Turbo EPS
• 2018-2019 Polaris RZR XP Turbo EPS DYNAMIX Edition
• 2018 Polaris RZR XP Turbo EPS Fox Edition
• 2015 Polaris RZR XP 1000 Desert Edition EPS
• 2019 Polaris RZR XP 1000 DYNAMIX Edition EPS
• 2014-2020 Polaris RZR XP 1000 EPS
• 2015 Polaris RZR XP 1000 FOX Edition EPS
• 2017 Polaris RZR XP 1000 Gold Matte Metallic LE EPS
• 2015-2021 Polaris RZR XP 1000 High Lifter Edition EPS
• 2020 Polaris RZR XP 1000 Limited Edition
• 2021 Polaris RZR XP 1000 Premium
• 2018-2019 Polaris RZR XP 1000 Ride Command Edition EPS
• 2021 Polaris RZR XP 1000 Sport
• 2018-2021 Polaris RZR XP 1000 Trails and Rock Edition EPS
• 2018-2021 Polaris RZR XP 4 Turbo
• 2016-2017 Polaris RZR XP 4 Turbo EPS
• 2018-2019 Polaris RZR XP 4 Turbo EPS DYNAMIX Edition
• 2018 Polaris RZR XP 4 Turbo EPS Fox Edition
• 2019 Polaris RZR XP 4 1000 DYNAMIX Edition EPS
• 2015-2020 Polaris RZR XP 4 1000 EPS
• 2016-2021 Polaris RZR XP 4 1000 High Lifter Edition EPS
• 2020 Polaris RZR XP 4 1000 Limited Edition
• 2020-2021 Polaris RZR XP 4 1000 Premium
• 2018-2019 Polaris RZR XP 4 1000 Ride Command Edition EPS
• 2021 Polaris RZR XP 4 1000 Sport
• 2018-2021 Polaris RZR XP Turbo

Note: Image is for reference only, actual product may vary slightly.
