Dakota Digital 1966-69 Lincoln Continental Analog Gauges Silver Blue VHX-66L-S-B

Dakota Digital

  • $802.75
    Unit price per
  • Save $42.25


Free Ground Shipping Orders $50+
Easy Returns Secure Payments Great Shopping Experience

Description

1966-69 Lincoln Continental VHX Instruments

from Dakota Digital

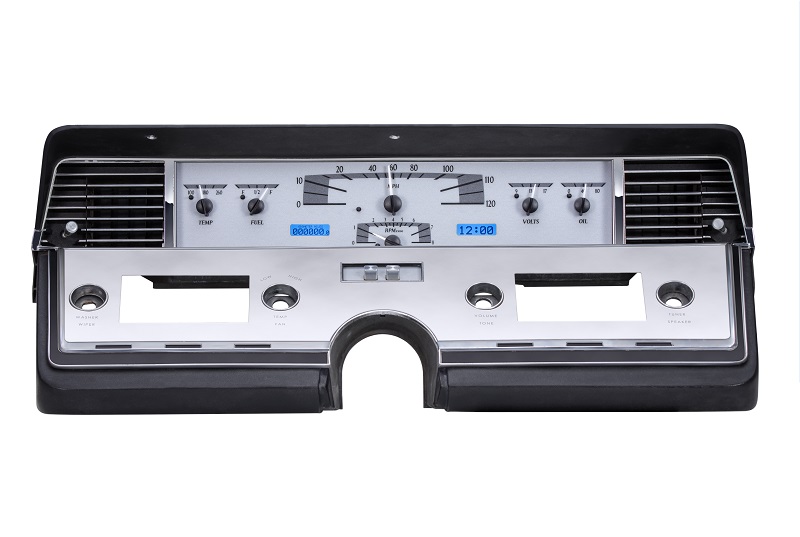

VHX-66L-S-B with SILVER ALLOY style and BLUE backlighting



Large by huge with a healthy dose of luxury and class, 1966- 69 Lincolns (does not fit '69 Mark III) have become a favorite among car crafters. This direct fit (with some modification to the interior of the stock instrument cluster) analog instrument system perfectly fills out the three rectangle gauge bezels with six needles as well as dual LCD message centers. Choose from Black or Silver Alloy face styling, and ask not what your Lincoln can do for you, but rather what you can do for your Lincoln.

This system requires permanent modification to the inside of the stock instrument cluster, providing clearance for the new instrumentation.  Please review the installation mounting manual for specifics.

Fits into stock bezel (bezel shown in any pic is NOT included, shown for illustrative purposes only).

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

MHX-66L-S-B Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.

VHX System Includes:

Analog Gauges

Speedometer - 0-120 MPH (optional metric version 0-195 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)

Lighting:

Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

Built-In Indicators:

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

 **Not all OEM indicator lamp functions will be replaced.

  • If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces Ford and/ or GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required.

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton - Dakota Digital instruments are programmed and operated by the push of
