Dakota Digital 1967 68 Chevy Camaro Firebird Gauge System Cluster VFD3-67C-CAM
Dakota Digital 1967 - 1968 Chevy Camaro / Firebird Digital Instrument System - VFD3-67C-CAM
Dakota Digital Series III instrumentsystems offer the latest technologies and features for your customvehicle. High brightness vacuum fluorescent displays provide a lifetimeof trouble free use while offering increased accuracy and features!

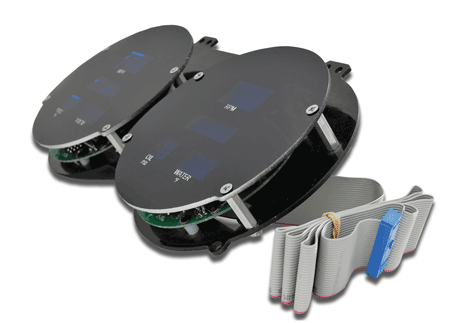

Full 6 Gauge Instrument System fits into OEM bezel for 1967- 68 Chevy Camaro / Pontiac Firebird.
Fits directly into existing stock bezel (bezel is NOT included, Sold Separately Below).
*Bezel/ Trim/ Facia not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
VFD3-67C-CAM - Kit mounts into stock housing, or reproduction housing available below.
System is available in MPH and degrees Fahrenheit or KM/H and degrees Celsius (metric MFD3 version). If you want to order the metric MFD3- version, please just let us know when you make your order. There is no additional cost, though it may take approx 1-3 weeks to build the metric version.
Please scroll through the listing below for more information on the VFD3 system.
The following item is available for purchase separately in our store (not included):
ICM-67C-CAM - Reproduction Front Dash Carrier. Black with Chrome accent rings, available for purchase separately in our store.
And Much More! (more features listed below)
Speedometer0-255 MPH (optional metric version: 0-255 km/h)Digital Message Centers
Oil Temperature0-99 PSI
Water Temperature0-300°F (optional metric version 0-150°C)
Standard ColorsBlue or Teal
Standard DisplaysOdometer (One Time User Settable, Million Mile)Dual (A/B) Trip Meter (0-9,999.9)Built-In Indicators
Performance Meters0-60 MPH Timer (0-100 km/h)1/4 mile time1/4 mile end speed (trap speed)High speed recallHigh RPM recall
GaugesSpeedometer (0-255 MPH/kmh) opposite scale of main speedometer.
IndicatorsTurn Signals (Left/Right)High BeamCheck EngineParking BrakeCruise Control (On / On & Engaged, when vehicle is equipped)Gear Position (Optional GSS-2000 sensor is required, sold separately, GSS-2000 is NOT included)4 x 4 (When vehicle is equipped)Wait to Start (When vehicle is equipped)
1/8" NPT, ground isolated sensor with a 10ft harness.
Oil Pressure1/8" NPT, solid state sensor with a 10ft harness.
Cable Drive Speed Sensor/GeneratorReplaces Ford and/or GM style speedometer cables with a 10ft harness.
BushingsEach kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Push ButtonDakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
Brand: Dakota Digital
Part Number: VFD3-67C-CAM
