Dakota Digital 84-87 Buick Regal Grand National Analog Gauge Kit VHX-84B-REG-S-W
1984 - 87 Buick Regal and Grand National VHX Instruments
1984 1985 1986 1987
from Dakota DigitalVHX-84B-REG-S-W with SILVER ALLOY style and WHITE backlighting

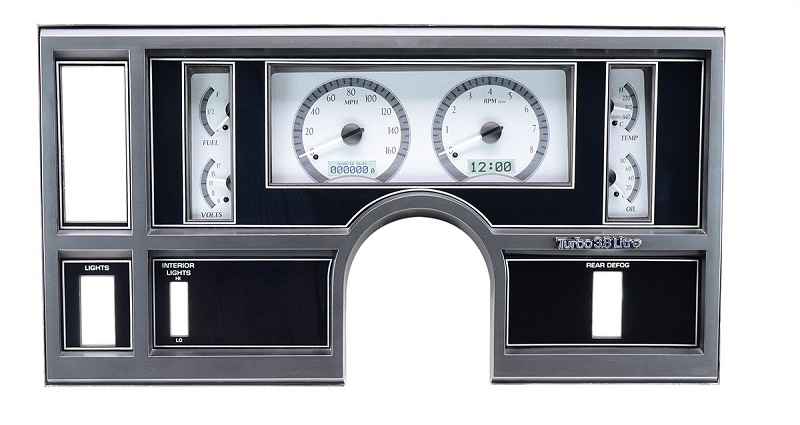

Now you can expand your Buick Regal dashboard without cutting it up! Six analog instruments with twin message centers fill out the stock instrument housing for boosted T-Type cars and Grand Nationals. BIM boost expansion module (BIM-03-2) and boost sender (SEN-09-6) are available for purchase separately if you want to add the boost reading to your gauge system.
Bezel shown in any pics is NOT included. This listing is for the gauge system only, which fits into the stock bezel.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
For the Grand National the Boost gauge is displayed in the digital readout underneath either the Speedometer or Tachometer. BIM boost expansion module (BIM-03-2) and boost sender (SEN-09-6) are available for purchase separately if you want to add the boost reading to your gauge system. They are NOT included with the system.
* Requires the use of the factory bezel. Bezel is NOT included.
VHX System Includes:
Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC
Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.Digital Message Center
Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)
0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall
Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)
Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.
Turn Signals (Left/ Right)
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.
Cable Drive Speed Sensor/Generator - Replaces GM styl
Brand: Dakota Digital
Part Number: VHX-84B-REG-S-W
