Dakota Digital Universal 6 Round Analog Gauge Instrument System Kit VHX-1060 New

Dakota Digital

  • $945.25
    Unit price per

Ask a Question

5 Star Service Easy Returns Secure Payments
Free ground shipping orders $50+


Universal 6 Gauge Round Kit VHX Instruments

from Dakota Digital

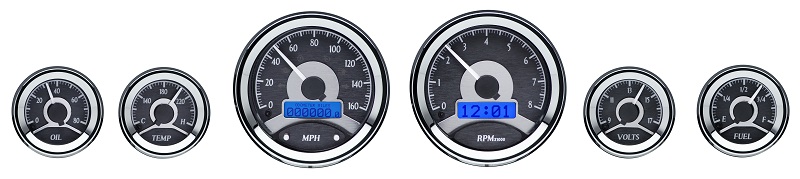

VHX-1060  6 gauge round kit.

  • Speedometer
  • Tachometer
  • Oil Pressure
  • Water Temperature
  • Fuel Level
  • Volts

Speedometer and Tachometer: Cutout 3-3/8"
Oil Pressure, Water Temperature, Fuel Level, Volts: Cutout 2-1/16"

Not available as individual gauges.

These 3-3/8” and 2-1/16” housings are industry standard sizes, so they easily fit many aftermarket panels, although offering all of the integration and flexibility of their VHX systems!

The satellite (oil pressure, water temp, voltmeter and fuel level) gauges connect directly to the speedometer with included telephone style cables, making installation quite simple.

More info about this system and pics are available below, please scroll down through the listing. This listing is for ONE VHX gauge system with your choice of 1) black alloy or silver alloy style and 2) blue or red or white backlighting color. Please let us know your choice when you make your purchase (you can send us a message or include a note with your payment):

1) VHX-1060-K-B (black alloy style/blue backlighting)

2) VHX-1060-K-R (black alloy style/red backlighting)

3) VHX-1060-K-W (black alloy style/white backlighting)

4) VHX-1060-S-B (silver alloy style/blue backlighting)

5) VHX-1060-S-R (silver alloy style/red backlighting)

6) VHX-1060-S-W (silver alloy style/white backlighting)

Metric MHX-1060 system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build. If you want the metric system, just include a note with your payment or send us a message.

VHX System Includes:

Analog Gauges

Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall


Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)


Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

Built-In Indicators:

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.


Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message
