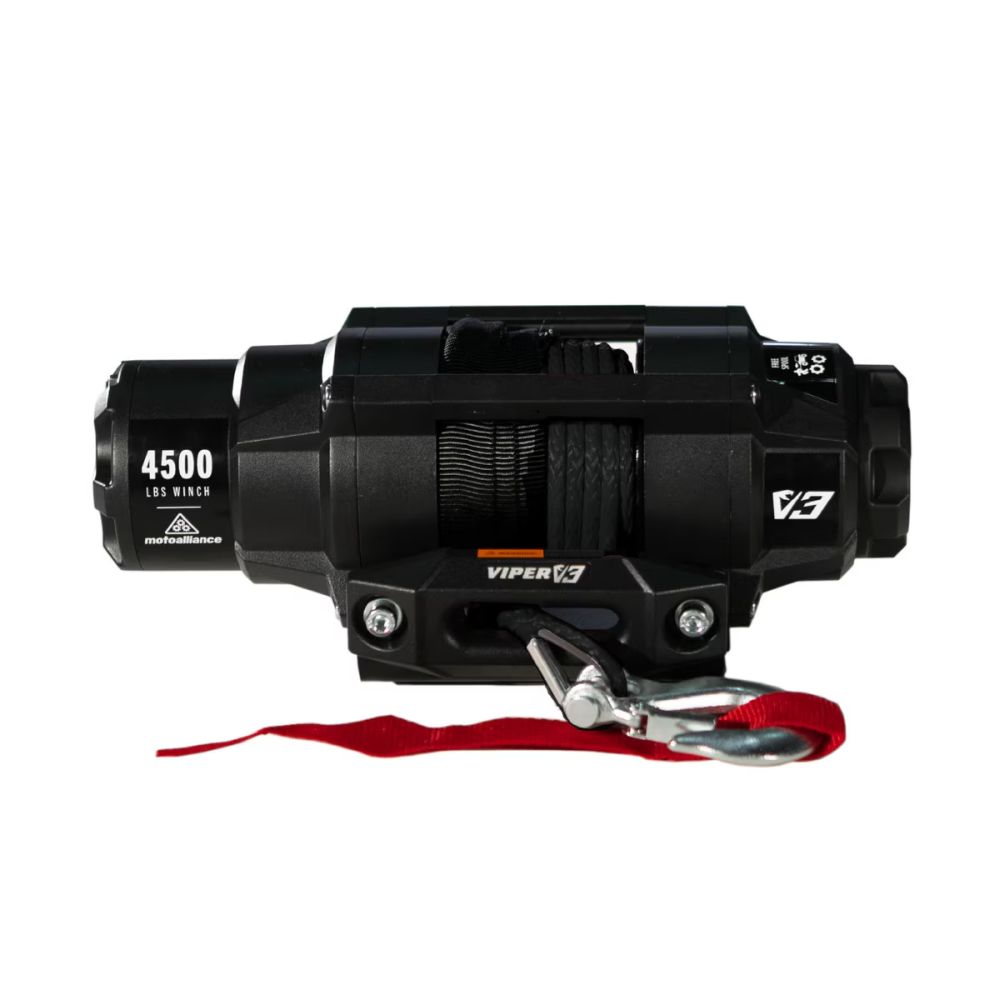

Viper 4500lbs V3 Winch Black Rope With Mount For Yamaha Kodiak 400 2003-2006
Customer Ratings
Viper 4500lbs V3 Winch Black Rope With Mount For Yamaha Kodiak 400 2003-2006
Viper 4500lbs V3 Winch Black Rope With Mount For Yamaha Kodiak 400 2003-2006
The VIPER V3 boasts a modern cutting-edge look that is a great match for next-gen machines, and the tight footprint with recessed terminals allows installation in even the tightest of spaces.
The V3 sealed with an IP67 waterproof rating, constructed with durable corrosion-resistant aluminum, and made with military-grade raw materials for exceptional durability and performance. Every V3 comes with a wireless remote switch to make winching operations safer and more convenient.
The V3 has also been designed to impress in every component -- from the high contrast decals, the matte finish on the winch body and laser-etched fairlead, to the multiple synthetic rope colors to match your machine.
The VIPER V3 is a great choice for discerning riders who love to push their machines to the limits while having a rugged, great-looking winch to rescue them out of sticky situations.
Features:- IP67 Waterproof Rating
- Wireless Remote System with unique frequency
- Planetary metal gear train and permanent magnet motor
- Automatic brake
- Limited One Year Warranty (6 Month Warranty on Rope)
- 40' x ?" diameter Synthetic Cable
- Aluminum Hawse Fairlead
- Wireless Remote Switch
- Contactor & Wiring
- Clevis Hook
- Rocker Handlebar Switch
- Hand Saver Strap
- Vehicle Mount
- Installation Hardware and Instructions
- Cable - Synthetic, 5,400lb max load rating
- Motor - 12V DC, Sealed permanent magnet
- Gearing / Gear Ratio - 3-Stage planetary
- Brake - Automatic, 100% load holding
- Clutch - Sliding Ring Gear
- Wiring - 6 gauge (English)
- Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
- Mounting Bolt Pattern - 3.0 inch x 6.6 inch (76mm x 169.42mm)
- 15 (L) x 4.75 (H) x 4.6 (D) inches
- 18 lbs
Brand: Viper
Part Numbers:
1x MA11926
1x V34500_BK
The Included Mount Will Fit:
- Yamaha Big Bear 400 2007-2012
- Yamaha Bruin 350 2004-2009
- Yamaha Grizzly 350 2007-2014
- Yamaha Grizzly 400 2007-2008
- Yamaha Grizzly 450 2007-2014
- Yamaha Kodiak 400 2003-2006
- Yamaha Kodiak 450 2003-2014
Note: Image is for reference only, actual product may vary slightly.
