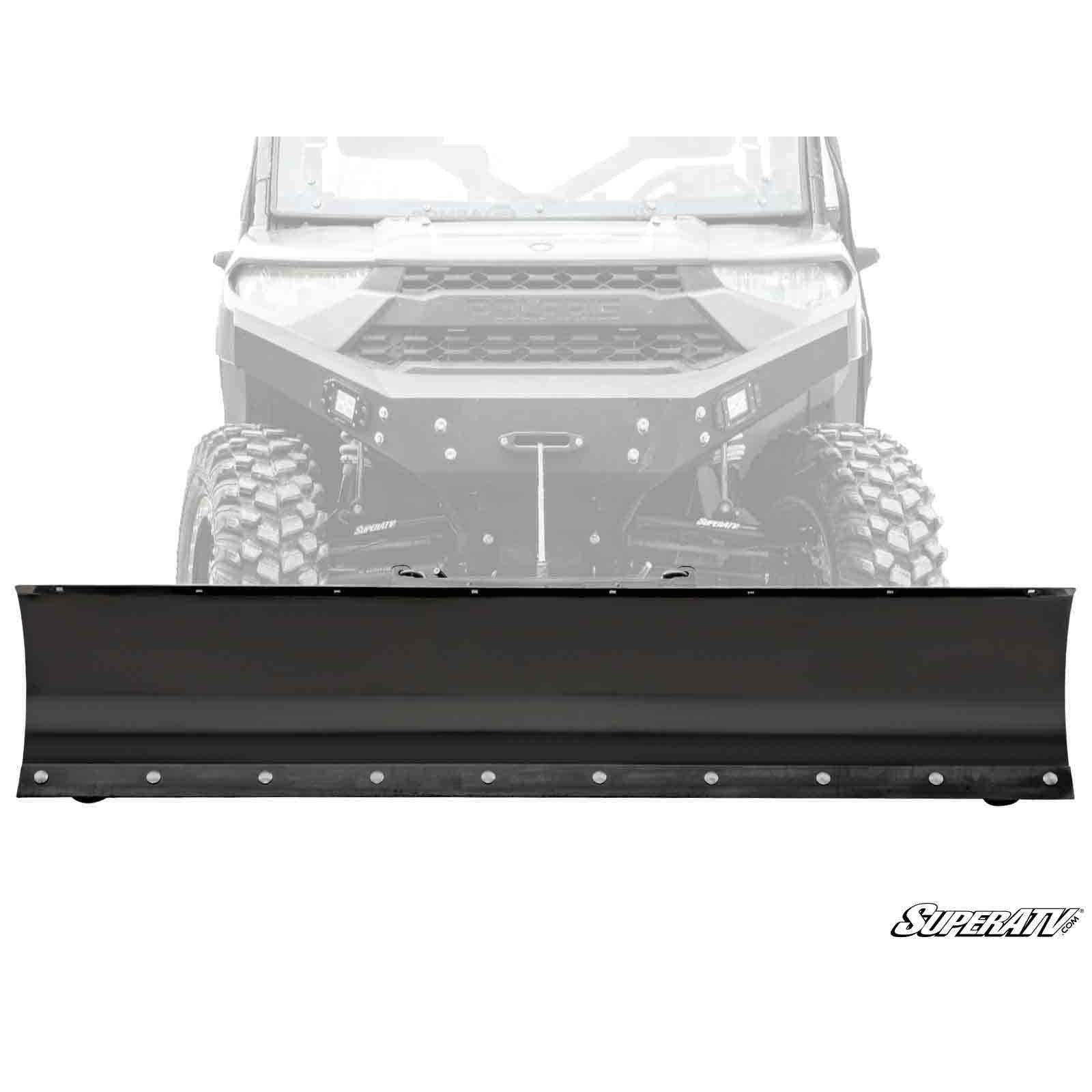

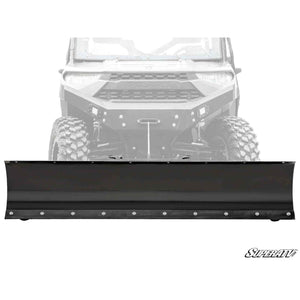

Put Your Ranger to Work
Packing up your Polaris Ranger Midsize 570 for the winter is a big mistake. Instead, get SuperATV’s Plow Pro Snow Plow and put your Ranger 570 to work. When snow piles on, this 72” blade with adjustable plowing angles will make short work of it. The mount bolts on fast and uses a quick connect so it’s easy to attach and remove your blade right when you need it. It’s the best way to do winter.

Built to Last
Every Polaris Ranger 570 midsize snow plow blade takes a beating. That’s why we built ours like a tank. The blade is made with 10-gauge steel, and the cutting edge uses a 4-gauge advanced steel alloy. With reinforcing ribs on the back, it’s made to scrape through hard snow and ice winter after winter. It even has shock-absorbing springs and a tilt-forward design so that curb you didn’t see won’t break you down. Plus, the whole thing is powder coated for year-round corrosion resistance.

• 10-gauge steel blade
• 4-gauge leading edge
• Flip-forward design
• Two 4-gauge vertical ribs support high-impact areas
• 10-guage horizontal support reinforces the leading edge

Easily Adjustable
With seven operating angles between 0 and 30 degrees, you’ll have no problem getting the right angle to clear your driveway. It’s easy to change your angle anytime, and the winch-operated blade moves smoothly to make plowing go faster. Plus, you can adjust your tilt angle to accommodate up to a 3” lift.

• Seven adjustable plowing angles:
• 0°, 10°, 20°, & 30° left or right of center
• 52° to 65° adjustable attack angle
• Height-adjustable skid shoes

Quick Installation
The mounting plate bolts onto your machine using included hardware and no required drilling. The plate stays out of the way so you can keep it on all winter long. It uses a quick connect to allow you to mount your blade in minutes whenever you need it and remove it easily to keep it stored the rest of the time.

Upgrade to Our Deluxe Accessory Kit
Add our deluxe accessory kit to your winch for more convenience and functionality. It includes side shields, plow markers, a deflector, and a plow angle actuator. Our 3/16” steel side shields help keep your plowing line clean. The 23” plow markers make the edges of your plow visible. The 1/8” LDPE deflector keeps snow from coming over the top of the blade. The plow angle actuator controls the plow angle with a dash-mounted switch and an 1,800 lb. actuator—stay warm in your cab and get the perfect plowing angle.

NOTE: A winch is required to operate this snow plow.

Kit Includes:

• 72” snow plow blade
• Quick-connect snow plow mount
• Snow plow frame

Deluxe Accessory Kit Includes:

• (2) Snow plow side shields
• Deflector and marker kit
• Plow angle actuator kit

• 10-gauge steel blade
• 4-gauge steel leading edge
• 72” wide blade
• 16.25” scoop
• Seven adjustable plowing angles:
• 0°, 10°, 20°, & 30° left or right of center
• 52° to 65° adjustable attack angle accommodates stock and lifted machines up to 3”
• Two 4-gauge vertical ribs support high-impact areas
• 10-guage horizontal support reinforces the leading edge
• Height-adjustable skid shoes
• Bolt-on quick-connect mount is easy to install
• Winch-operated frame
• Powder-coated mounting components are weather resistant

Deluxe Accessory Kit Features:

• Side shields use 3/16” steel plating
• Plow markers are 23” tall
• Deflector made with 1/8” LDPE
• Plow angle actuator has a 7-7/8” stroke
• Capable of 1,800 pounds of force
• Actuator turns plow blade up to 30 degrees left or right of center
• Sealed actuator uses IP67 rated solenoid and water-resistant connectors
• 3/4” chrome-plated cylinder shaft
• Easy to install—hardware and color instructions included

• Polaris Ranger Midsize 570 : 2014+

NOTE:

• Machines with more than 3” of lift require our Plow Pro Snow Plow drop bracket: SPB-DB-001
• Compatible with OEM front bumper only
