RMStator Stator RM01026
Customer Ratings
RMStator Stator RM01026
RMStator Stator RM01026

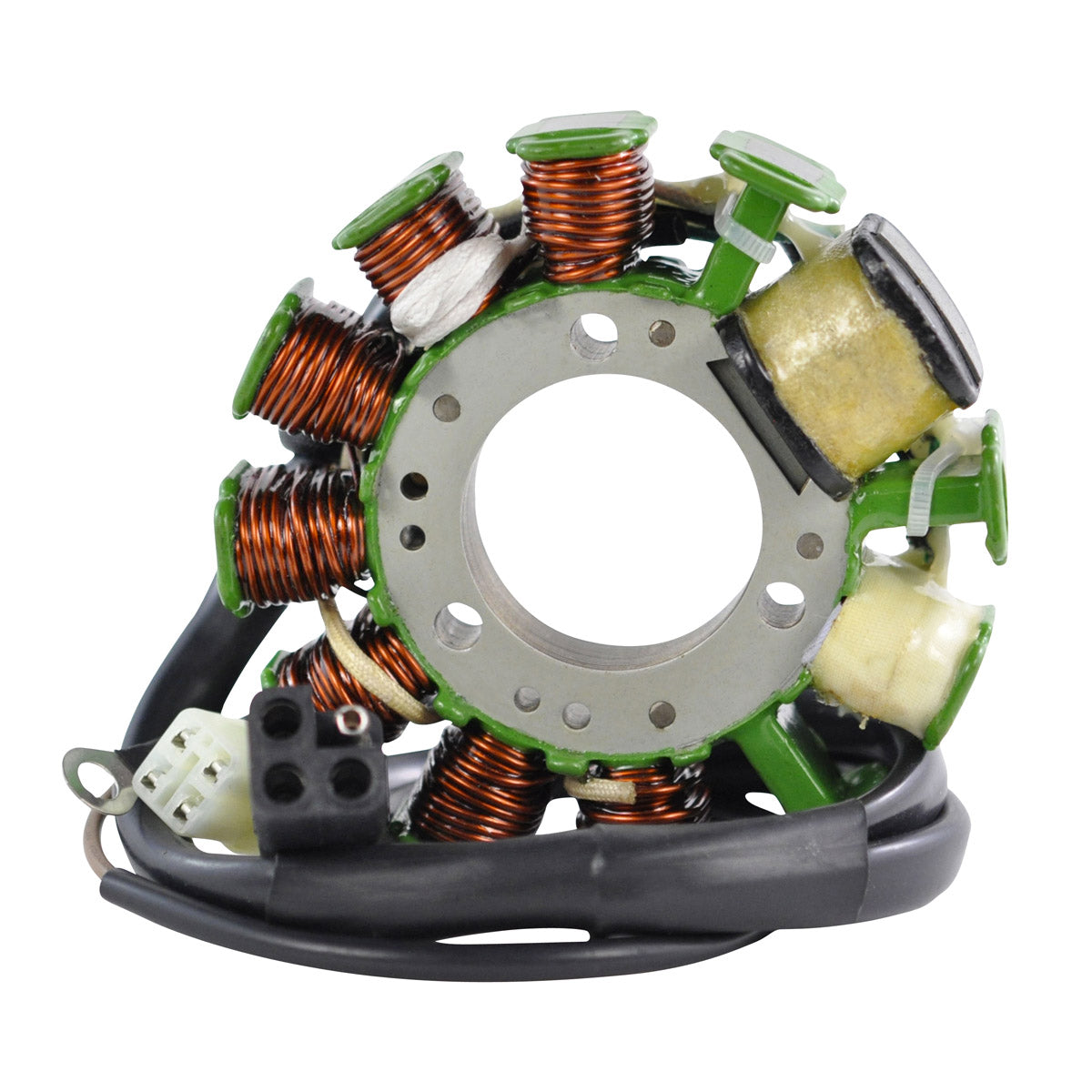

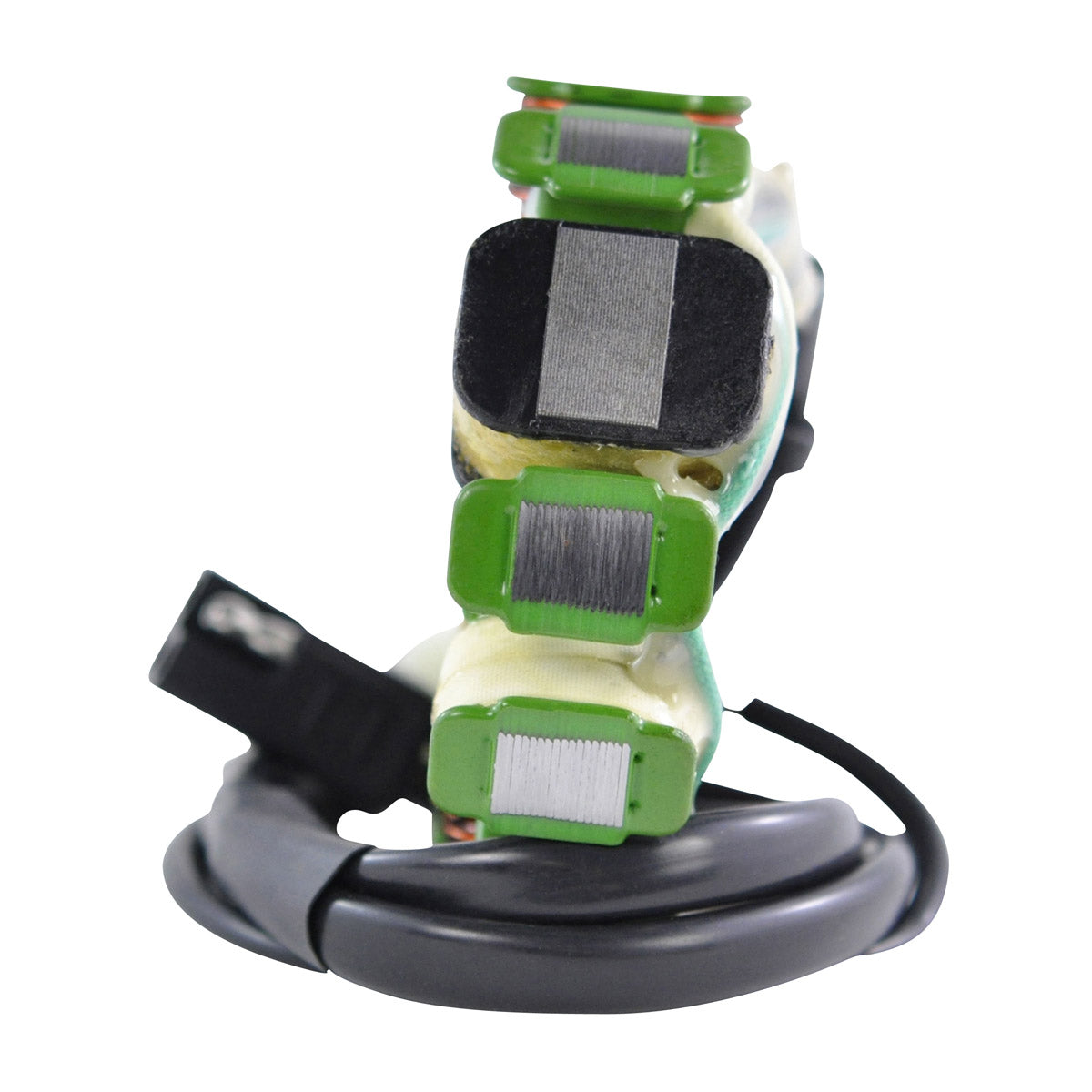

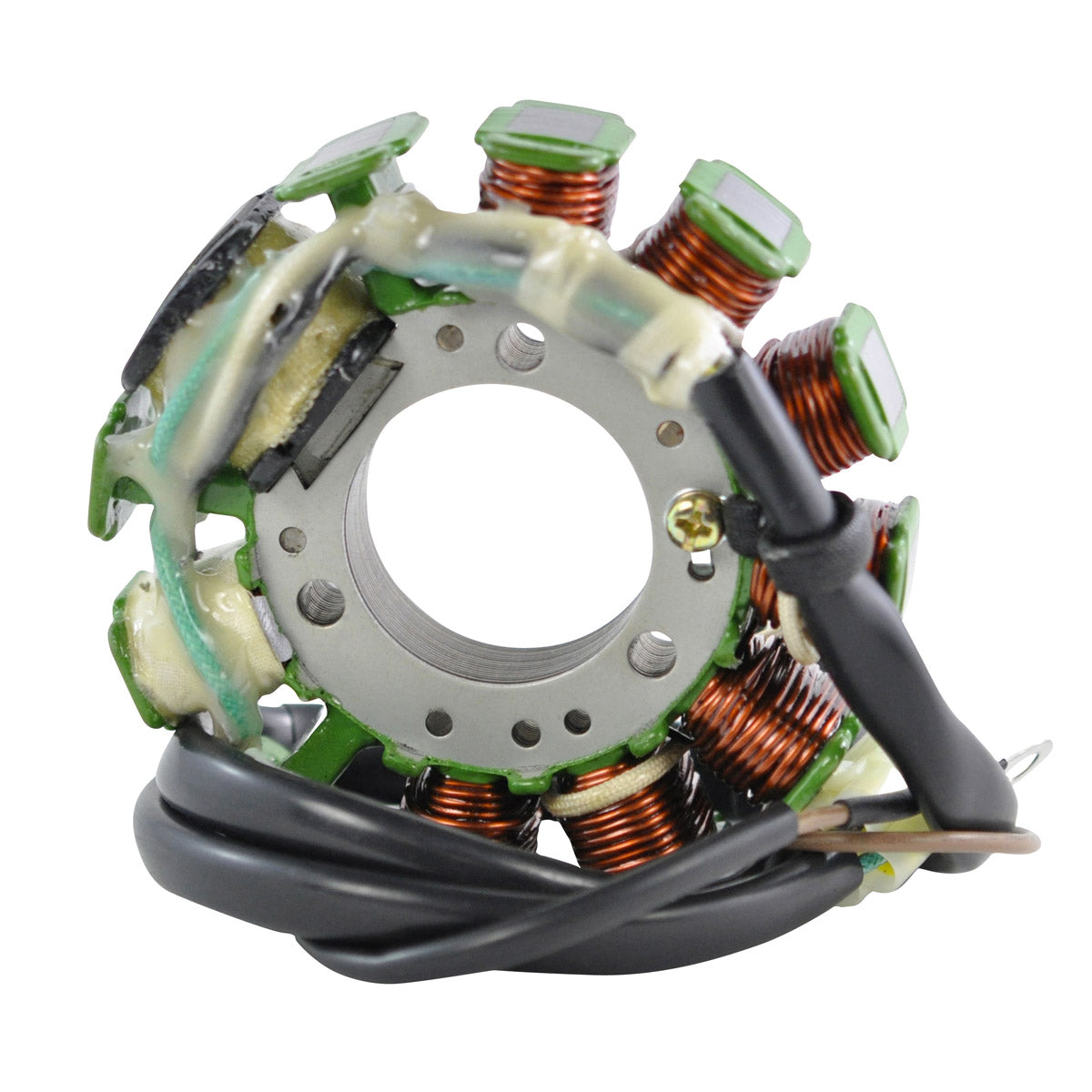

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

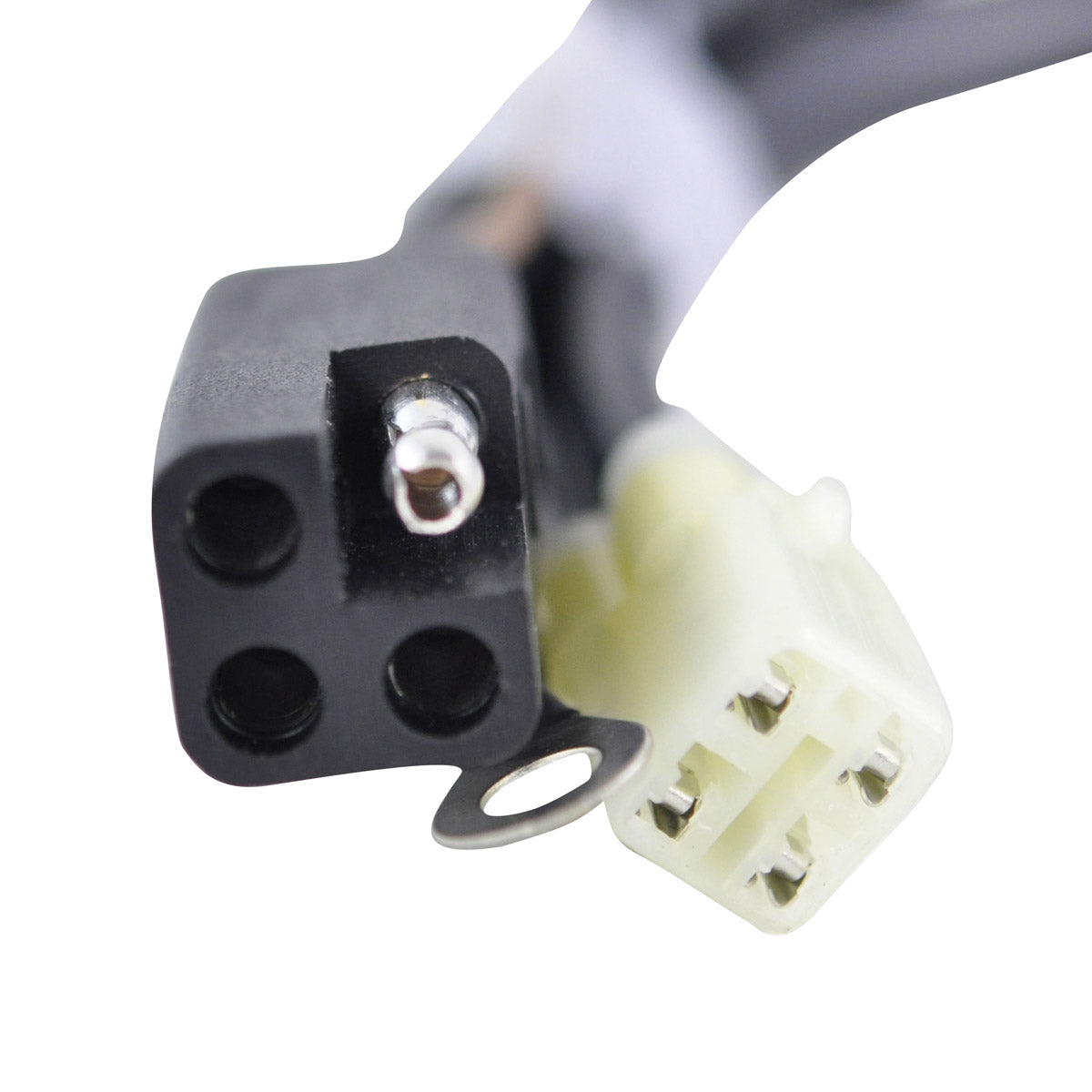

- Connector included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 34 mm
Exterior diameter : 93 mm
Thickness : 15 mm
Length of wires stator to plug : 275 mm
Other specifications :
Number of wires : 8
Number of plugs : 3
Number of pins : 9
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.1 ohms +/-20%
Source 1 : Green to Black = 25 ohms +/-20%
Source 2 : Green to White = 447 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01026
Fitment:
- 1998-1999 Arctic Cat Pantera 800 Carb L/C
- 1998-1999 Arctic Cat Thundercat 1000 Carb L/C
- 1993-1997 Arctic Cat Thundercat 900 Carb L/C
- 1998-1999 Arctic Cat Thundercat Mountain Cat 1000 Carb L/C
- 1994-1997 Arctic Cat Thundercat Mountain Cat 900 Carb L/C
- 1995-1999 Arctic Cat ZRT 800 Carb L/C
Note: Image is for reference only, actual product may vary slightly.
