RMStator Stator RM01301
Customer Ratings
RMStator Stator RM01301
RMStator Stator RM01301

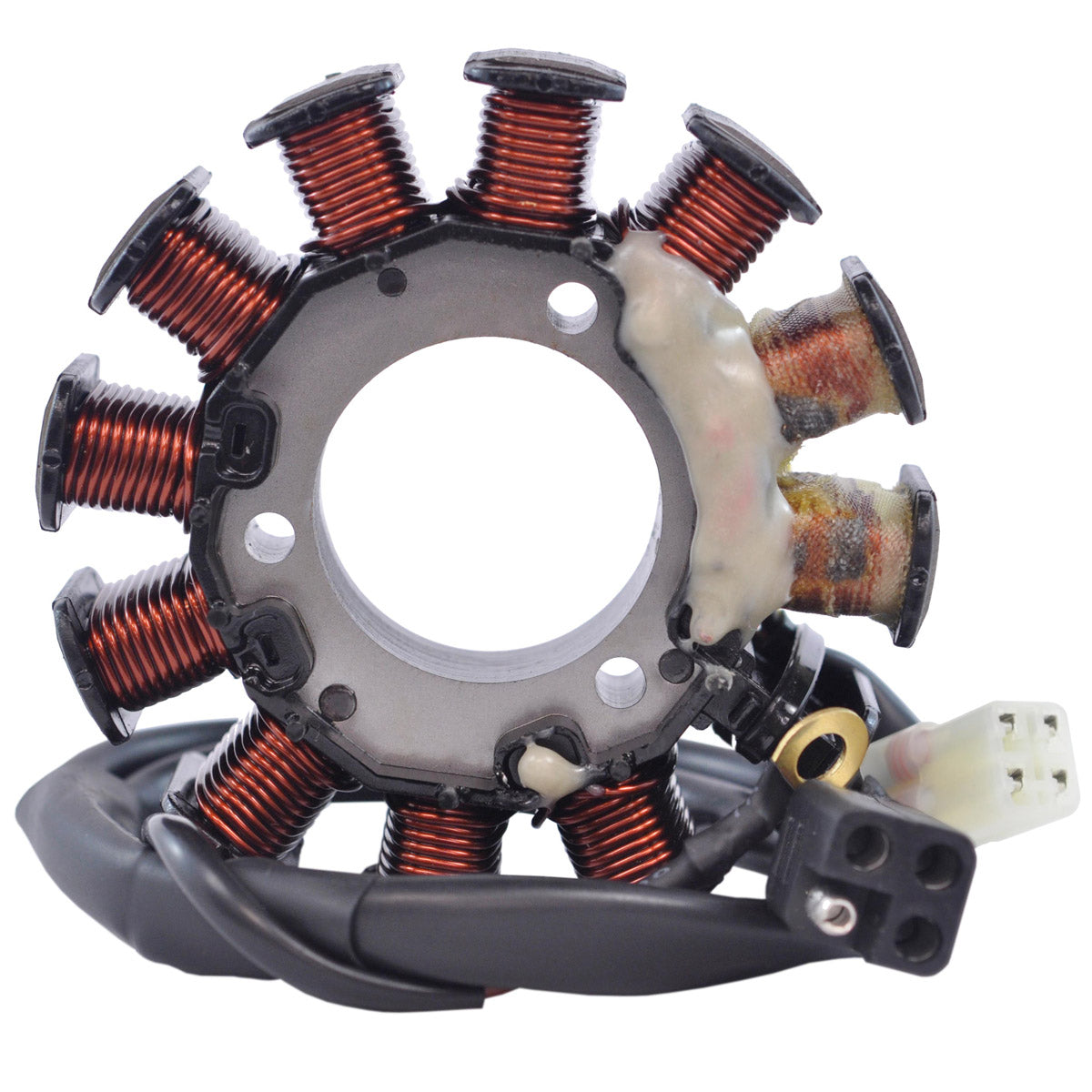

Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials
- Highest grade of copper windings, resistant to 200 degrees Celsius
- The quality exceeds the OEM equipment
- Connector included
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Wire to wire resistance
Alternator : Yellow to Yellow = 0.8 ohms +/- 20%
Source 1 : Green to Black = 16 ohms +/- 20 %
Source 2 : Green to Brown = 16 ohms +/- 20 %
Dimension
Interior diameter : 38 mm
Exterior diameter : 99 mm
Thickness : 20 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01301
Fitment:
- 2015-2018 Arctic Cat Bearcat 2000 LT EFI L/C
- 2004-2008 Arctic Cat Bearcat 570 Carb F/C
- 2014 Arctic Cat Bearcat 570 Carb F/C
- 2009-2014 Arctic Cat Bearcat 570 XT Carb F/C
- 2014 Arctic Cat Bearcat 570 XTE Carb F/C
- 2009-2014 Arctic Cat F570 Carb F/C
- 2015-2020 Arctic Cat Lynx 2000 Carb L/C
- 2005 Arctic Cat M5 141in Carb L/C
- 2001-2002 Arctic Cat Mountain Cat 1000 Carb L/C
- 2002-2004 Arctic Cat Mountain Cat 570 Carb F/C
- 2000-2001 Arctic Cat Pantera 1000 Carb L/C
- 2002-2007 Arctic Cat Panther 570 Carb F/C
- 2004-2005 Arctic Cat Sabercat 500 Carb L/C
- 2004-2005 Arctic Cat Sabercat 500 LX Carb L/C
- 2009-2014 Arctic Cat T570 Carb F/C
- 2000-2002 Arctic Cat Thundercat 1000 Carb L/C
- 2000 Arctic Cat Thundercat Mountain Cat 1000 Carb L/C
- 2001-2003 Arctic Cat Z 440 Sno Pro Carb F/C
- 2002-2007 Arctic Cat Z 570 Carb F/C
- 2002-2003 Arctic Cat Z 570 ESR Carb F/C
- 2004-2007 Arctic Cat Z 570 LX Carb F/C
- 2002 Arctic Cat Z 570 SS Carb F/C
- 2000-2001 Arctic Cat ZRT 800 Carb L/C
Note: Image is for reference only, actual product may vary slightly.
