RMStator Regulator Stator + Regulator Kit RM23016
Customer Ratings
RMStator Regulator Stator + Regulator Kit RM23016
RMStator Regulator Stator + Regulator Kit RM23016

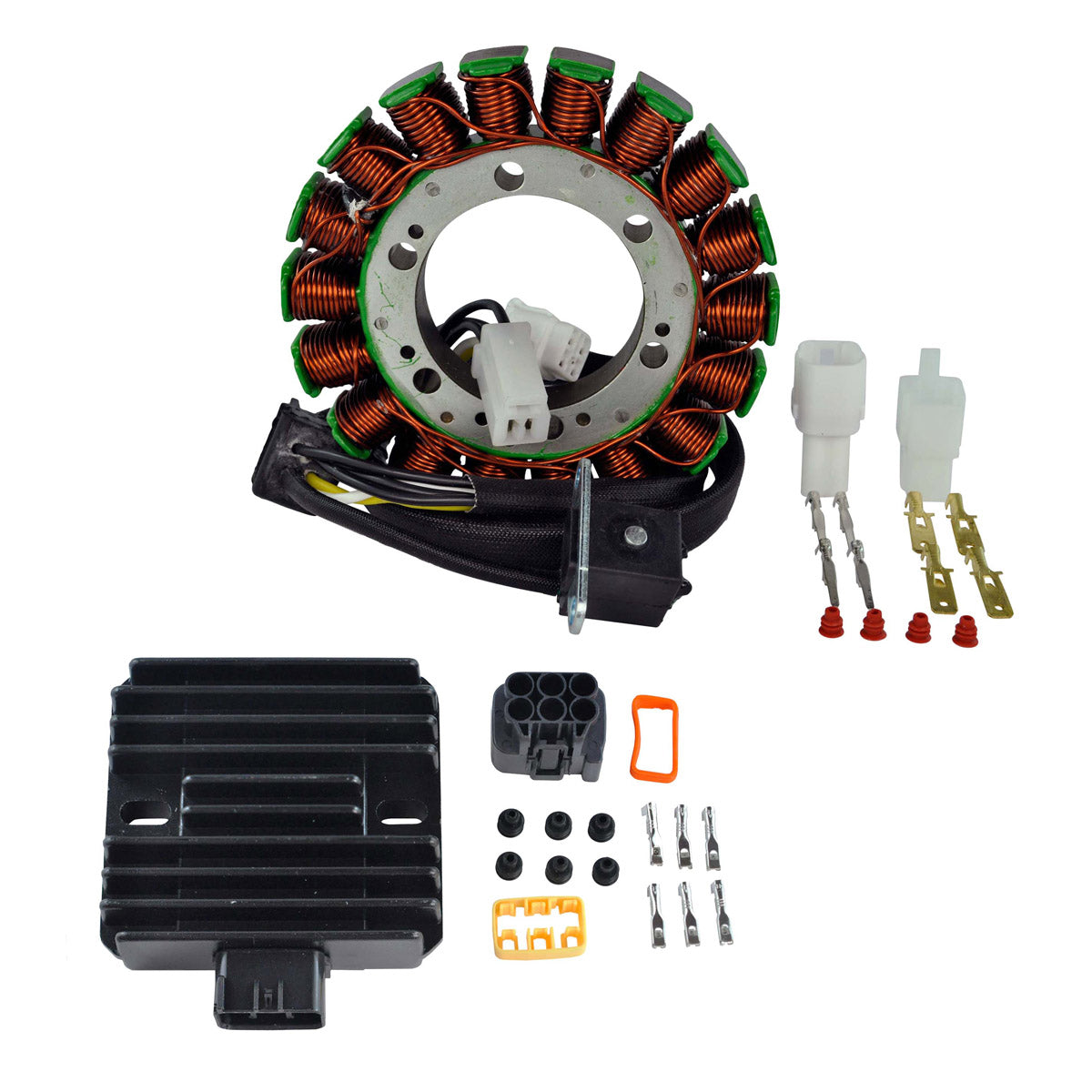

Brand New Aftermarket Generator Stator + Voltage Regulator Rectifier Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Brand new generator stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Rubber grommet included
Brand new voltage regulator rectifier
- No assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
- Connector included
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Technical Data
Generator Stator
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm
Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7
Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%
Dimensions:
Width : 93mm
Length : 27mm
Height: 102mm
Fixation holes center to center : 72mm
Other specifications :
Number of plugs : 1
Number of pins : 6
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM23016
Fitment:
- 2005-2008 Arctic Cat 650 4x4 H1 Automatic
- 2010-2011 Arctic Cat 650 4x4 H1 Automatic
- 2010 Arctic Cat 650 4x4 H1 MudPro Automatic
- 2007-2009 Arctic Cat 650 4x4 H1 TRV Automatic
- 2007 Arctic Cat 650 4x4 TBX Automatic
- 2009 Arctic Cat 650 4x4 TBX Automatic
- 2006-2009 Arctic Cat Prowler 650 4x4 H1 Automatic
- 2002-2007 Suzuki Eiger 400 LTA400 2x4
- 2002-2007 Suzuki Eiger 400 LTF400 2x4 Manual
Note: Image is for reference only, actual product may vary slightly.
