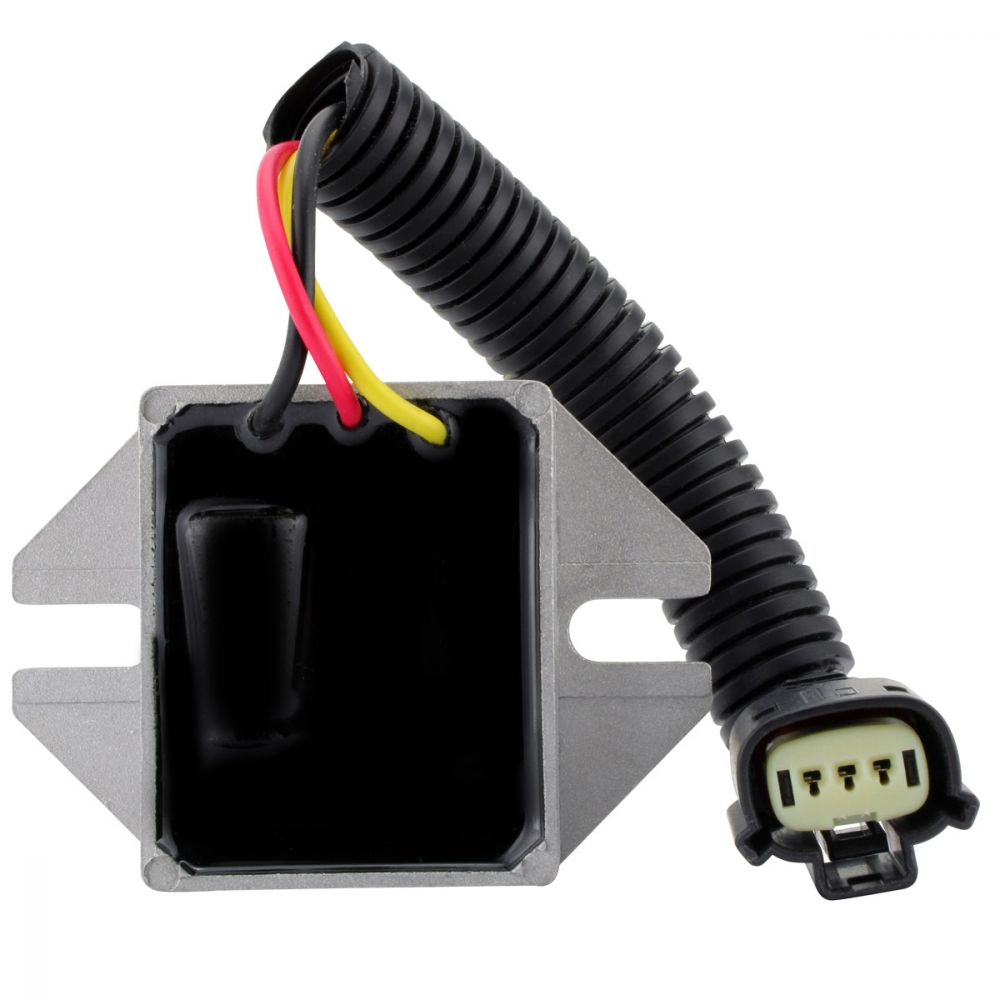

RMStator Regulator RMS020-107512
Customer Ratings
RMStator Regulator RMS020-107512
RMStator Regulator RMS020-107512
Brand new aftermarket Mosfet voltage regulator rectifier
We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.
All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part
Technical Data
Dimensions:
Width: 55 mm
Length: 81 mm
Height: 22 mm
Wires length: 140 mm
Distance between fixation holes center to center: 65 mm
Other specifications:
Number of plugs: 1
Number of pins: 3
Number of wires: 3
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS020-107512
Fitment:
- 2018-2022 Arctic Cat ZR 200
- 2018 Yamaha SnoScoot 200
- 2019-2022 Yamaha SnoScoot 200 ES
Note: Image is for reference only, actual product may vary slightly.
