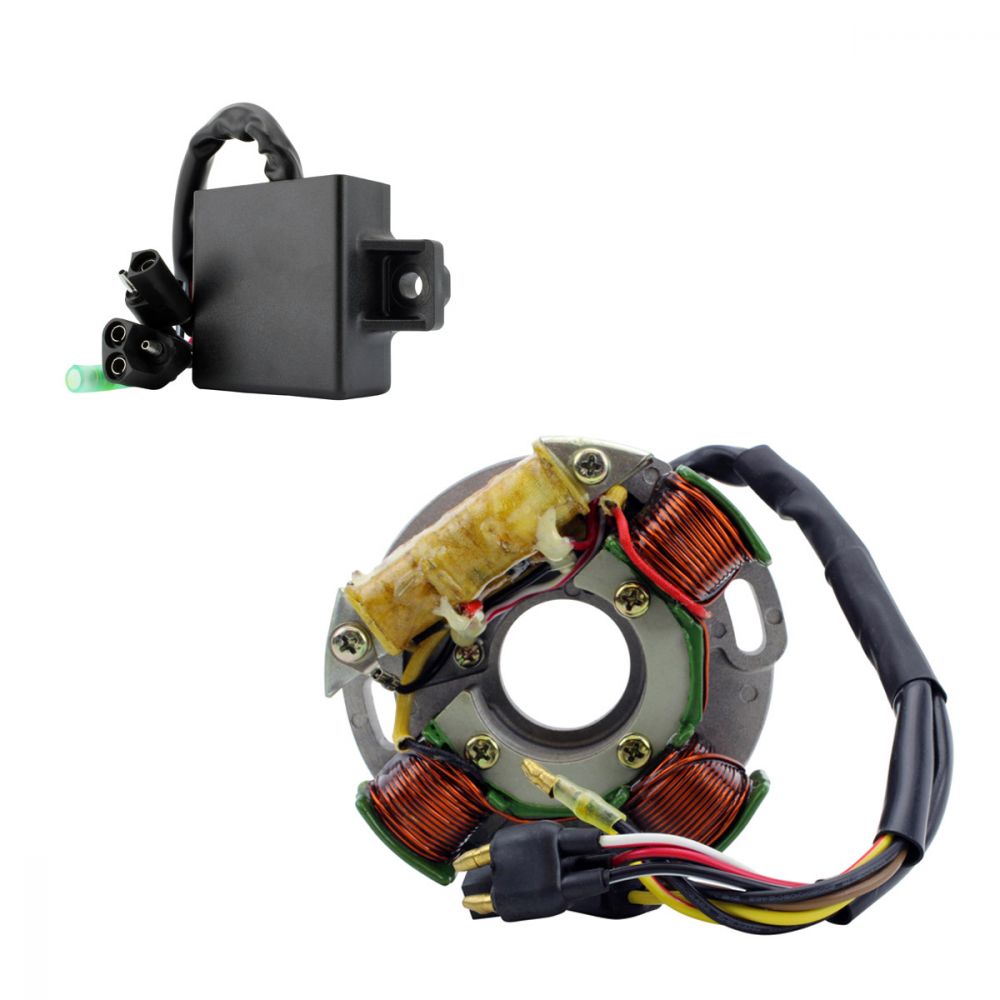

RMStator Stator and CDI Box Kit RMS900-108218

Brand new aftermarket stator + CDI Box

• All product shipped are tested
• *All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connector included
• Back Plate included

Note : There are 2 possible stators for the OEM 3005-346, please compare your original part with our picture.

• Our PeakRPM CDI Box provides the optimal output for your ride
• Enjoy fast & easy installation with our plug & play OEM design
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

Technical Data

Stator :

Dimensions :

Interior diameter: 40 mm
Exterior diameter: 113 mm
Thickness: 18 mm
Length of wires stator to plug: 240 mm

Other specifications :

Number of wires: 8
Number of plugs: 2
Number of pins: 8

Wire to wire resistance :

Alternator: Yellow to Yellow = 0.5 ohms +/-20%
Source: Black/Red to Black/White = 200 ohms +/-20%
Source 2: White/Red to Black/Red = 20 ohms +/-20%

Dimensions:
Height: 40.5 mm
Length: 65 mm
Width: 93 mm
Distance between fixation holes: 74 mm

Other specifications:

Number of plugs: 3
Number of pins: 6

Please note: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this; we recommend that you rule everything else out before replacing the CDI box.

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-108218

Fitment:

• 1995-1996 Arctic Cat Bearcat 340 Carb F/C
• 1995-1997 Arctic Cat Bearcat 440 Carb F/C
• 1994 Arctic Cat Cheetah 340 Carb F/C
• 1994 Arctic Cat Cheetah 440 Carb F/C
• 1986-1990 Arctic Cat Cheetah 500 FC Carb
• 1986-1988 Arctic Cat Cheetah 530 LC Carb
• 1989 Arctic Cat Cougar Mountain Cat 500 Carb F/C
• 1985-1990 Arctic Cat Cougar 500 Carb F/C
• 1987-1988 Arctic Cat El Tigre 5000 Carb L/C
• 1984-1988 Arctic Cat El Tigre 6000 LC Carb
• 1989 Arctic Cat El Tigre EXT Mountain Cat 530 Carb L/C
• 1991 Arctic Cat El Tigre EXT Mountain Cat 530 Carb L/C
• 1989-1991 Arctic Cat El Tigre EXT 530 Carb L/C
• 1989-1993 Arctic Cat Jag AFS 440 Carb F/C
• 1987-1990 Arctic Cat Jag 340 Carb F/C
• 1990-1991 Arctic Cat Jag 340 Mountain Cat Carb F/C
• 1992 Arctic Cat Jag 440 Carb F/C
• 1993 Arctic Cat Jag 440 Deluxe Carb F/C
• 1985-1988 Arctic Cat Jag 440 Carb F/C
• 1994-1996 Arctic Cat Jag 440 Carb F/C
• 1993-1994 Arctic Cat Jag 440 Z Carb F/C
• 1991-1993 Arctic Cat Lynx 340 Carb F/C
• 1992-1993 Arctic Cat Lynx 340 Mountain Cat Carb F/C
• 1985 Arctic Cat Pantera 440 Carb F/C
• 1986-1988 Arctic Cat Pantera 440 Carb L/C
• 1985 Arctic Cat Panther 440 Carb F/C
• 1989-1997 Arctic Cat Panther 440 Carb F/C
• 1990-1991 Arctic Cat Panther 440 Mountain Cat Carb F/C
• 1986-1988 Arctic Cat Panther 500 Carb F/C
• 1994-1996 Arctic Cat Puma 340 Carb F/C
• 1987-1992 Arctic Cat Super Jag 440 Carb F/C
• 1995-1997 Arctic Cat Z 440 Carb F/C

Note: Image is for reference only, actual product may vary slightly.
