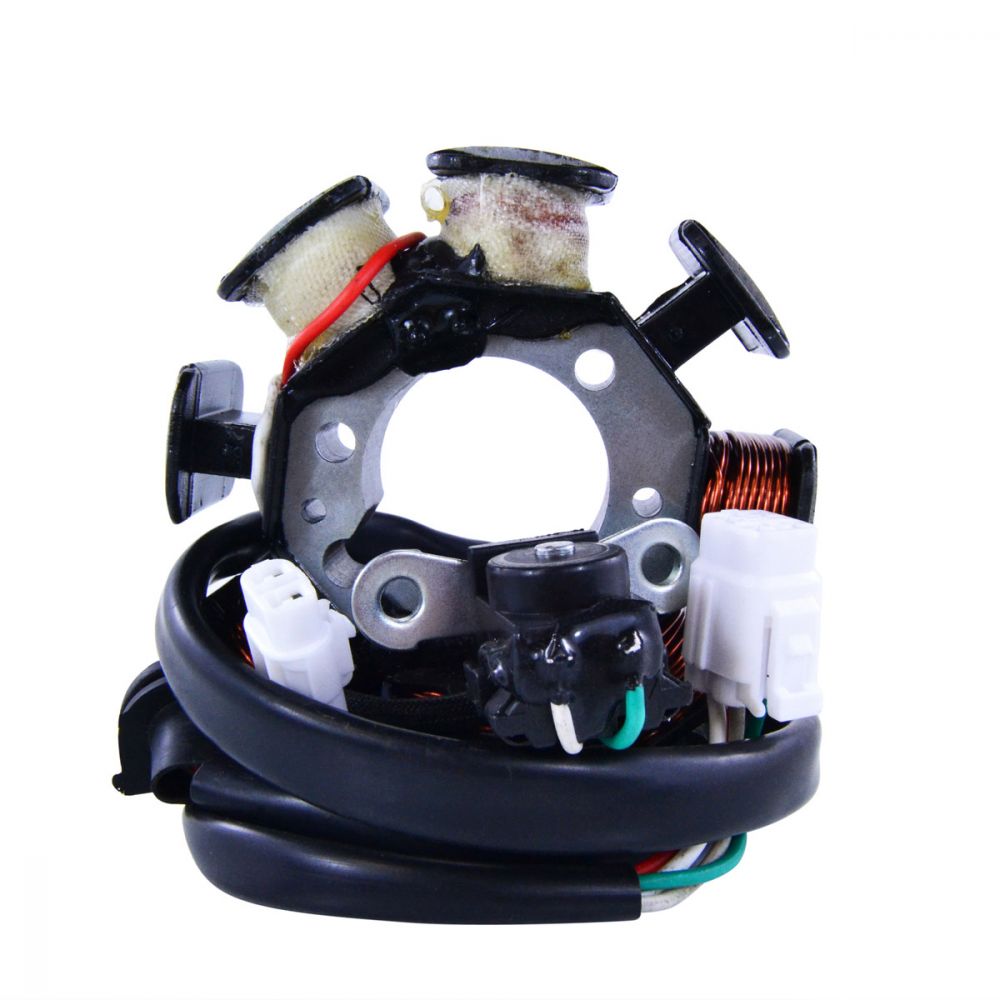

RMStator Stator And Mosfet Regulator Rectifier with Flywheel and Puller Tool With Puller Kit
Customer Ratings
RMStator Stator And Mosfet Regulator Rectifier with Flywheel and Puller Tool With Puller Kit
RMStator Stator And Mosfet Regulator Rectifier with Flywheel and Puller Tool With Puller Kit
Brand New Kit Stator + Mosfet Voltage Regulator Rectifier + Flyhweel + Puller
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All products are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- M50 x 1.5 right hand internal thread
- Includes crankshaft thread protector cap
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
Technical Data
Stator
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm
Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7
Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%
Dimensions:
Exterior Diameter: 143.40mm
Interior Diameter: 120.50mm
Interior Diameter Center Housing: 20.25mm
Exterior Diameter Center Housing: 33.45mm
Thickness (exterior): 50.95mm
Thickness (interior): 41.60mm
Dimensions :
Width : 93mm
Length : 102mm
Height: 27mm
Fixation holes center to center : 72mm
Other specifications :
Number of plugs : 1
Number of pins : 6
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-100232
Fitment:
- 2006-2008 Arctic Cat 650 4x4 H1 Automatic
- 2010-2011 Arctic Cat 650 4x4 H1 Automatic
- 2006-2008 Arctic Cat Prowler 650 4x4 H1 Automatic
Note: Image is for reference only, actual product may vary slightly.
