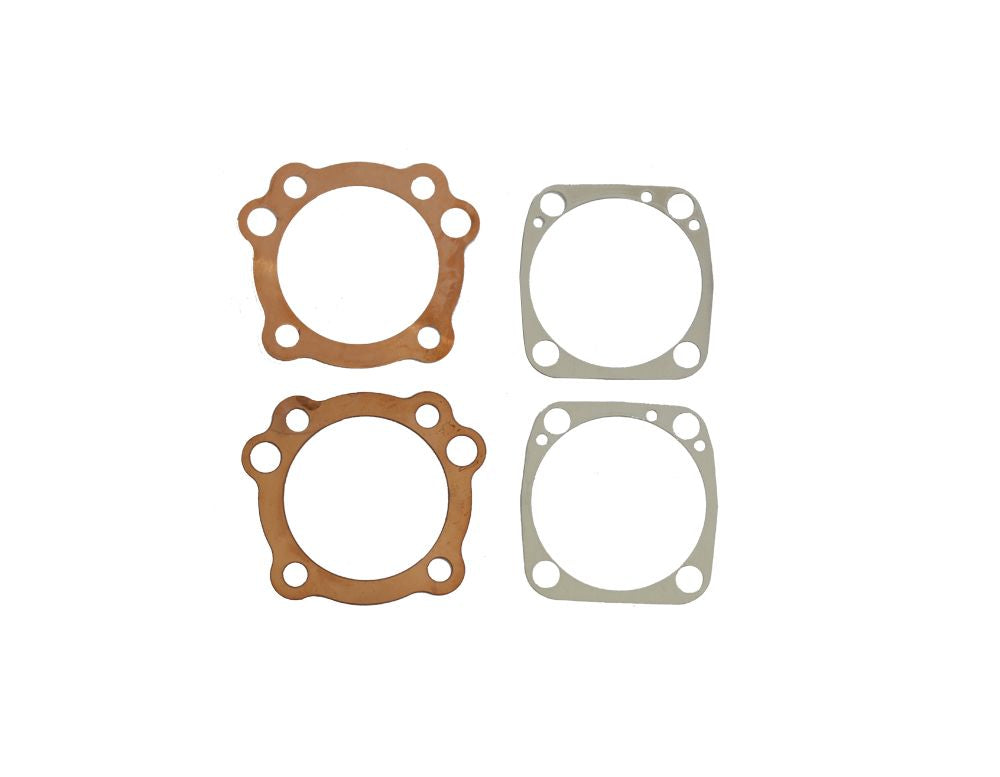

Athena Head and Base Gasket Kit 3 3/4'' Copper (Big Bore) P400195006017
This gasket kit includes the two head gaskets and the two cylinder base, specifically designed for:
- Evolution Big Twin 84-99
The cylinder base gaskets included in this kit are "Type A" gaskets.
There are two types of cylinder base gaskets for Evolution models:
- Type A: it was introduced on the 1984 Evolution Big Twin models; it can be used on all of the 84-99 1340cc Evolution models and follows the contours of the cylinder base perfectly. This gasket fits also 86-22 Evolution XL even if sticking out at the cylinder base. Silicone beaded base gaskets may have issues because of this.
- Type B: it introduced on Evolution XL Sportster models in 1986; it fits all Evolution XL models, but also all 84-99 Evolution 1340cc models although the Big Twin cylinder base is a bit larger than the gasket. The 'type B' is the only gasket type that the OE manufacturer supplied from 1986 onwards for both Evolution Big Twin and Evolution XL Sportster models.
Both type 'A' and type 'B' have identical inner bore diameter, oil hole and stud hole locations. Gaskets for front and rear cylinder are identical. The only difference between the 'A' and 'B' gaskets is the outside perimeter.
The cylinder head gaskets included are made of copper while cylinder base gaskets are made of aluminum.
Athena offers the widest range of replacement engine gaskets available on the market, boasting over 40 years of experience in the field.
Athena's gasket kits are entirely engineered in Italy with a strong base of internal know-how. Each piece is produced following strict parameters imposed by manufacturers and the use of latest generation lasers guarantees perfect cutting quality.
Athena performs surface treatments to compensate irregularities and follows material stress relieving processes to improve sealing in the most critical areas.
Top End Gasket Kit includes all the gaskets needed to overhaul the head and the thermal part of the engine.
Find the gasket that best suits your motorbike by consulting the compatibility tables.
Description:
- High endurance and reliability
- Perfect compatibility with any listed application
- Unbeatable quality-price ratio
Brand: Athena
Part Number: P400195006017
Note: Image is for reference only, actual product may vary slightly.
