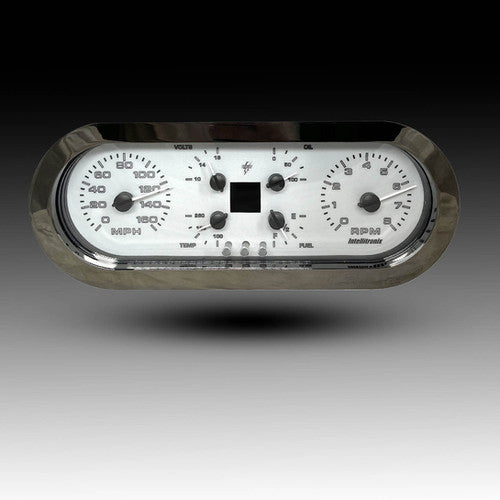

Intellitronix Analog Aurora Multi Gauge Set With White Faceplate AUR1001

Experience the fusion of aesthetics and functionality with the AURORA - a color changeable universal analog panel. This is not just a dashboard; it's a statement that speaks volumes about your love of your vehicle.

An incredible touch for any fab/resto-mod project and a direct fit replacement for the Chevy II Nova, the Aurora features a white polycarbonate subsurface overlay with a brush stroke finish and your choice of chrome or black chrome bezel. Speed, oil pressure, and temperature senders are included.

With 30 standard color options, every gauge and needle is fully adjustable. Includes a preprogrammed demo mode and 20 custom themes (themes 1–15 are pre-established; themes 16–20 are available for custom editing).

AMERICAN MADE – LIFETIME WARRANTY

Dimensions: 13 3/8"" x 1 5/8"" x 5 3/8""

Includes 6 Analog Needle Gauges:

• Speedometer
• Tachometer
• Fuel Gauge
• Voltmeter
• Oil Pressure Gauge
• Water Temperature Gauge

1.27" Color TFT Screen Display

• Digital readout can be selected from any of the 6 needle gauges, plus: clock, odometer, trip meter, check engine, turn signals, high beam, parking brake, high speed recall, 0–60 time, and 1/4 mile time
• Can display a gear indicator with an optional gear indicator kit (sold separately)

Menu Functions

• Demo program
• Adjustable brightness
• Dash color
• Text color
• Custom dash themes
• Needle colors
• MPH calibration
• Cylinder selection
• Fuel ohms selection

Gauge Specifications

Speedometer

• Reads up to 160 MPH
• Works with any mechanical or electronic transmission
• Optional GPS speedometer sender available separately
• Comes standard with GM speed sensor unless specified otherwise

Tachometer

• Reads 0–8000 RPM in 100 RPM increments
• Selectable cylinder modes (1–16)

Voltmeter

• Adjustable calibration
• Reads 10.0V–18.0V

Oil Pressure

• Reads 0–100 PSI

Water Temperature

• Reads 100–260°F

Fuel Level

• Select from common fuel ranges or enter a custom range

Additional Features

• Automatic nighttime dimming
• Easy install
• Lifetime warranty

Accessories Included

• All required sending units are included
• Comes standard with GM speed sensor unless specified otherwise

GPS Option

The Intellitronix GPS Speedometer Sending Unit offers high-accuracy readings with a simple 3-wire hookup and is compatible with standard 4000, 8000, or 16000 pulse-per-mile speedometers. Built-in GPS technology eliminates speed inaccuracies caused by tire changes or gear ratios for unmatched precision.

Gear Shift Indicator (Optional)

For automatic transmissions only.

Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your truck to the next level.

Brand: Intellitronix
Part Number: AUR1001

Note: Image is for reference only, actual product may vary slightly.
