Intellitronix LED Create-a-Dash Universal Bargraph Gauge Kit With Black Faceplate

Intellitronix LED Create-a-Dash Universal Bargraph Gauge Kit With Black Faceplate

CREATE-A-DASH BARGRAPH was created for those looking to build a fully custom digital dash while retaining the accuracy, reliability, and signature bargraph styling of Intellitronix gauges.

Each kit includes everything needed to design and install a personalized dashboard layout. You can cut, mount, and arrange the gauges to match your factory layout or create an entirely new design for virtually any vehicle—classic or modern.

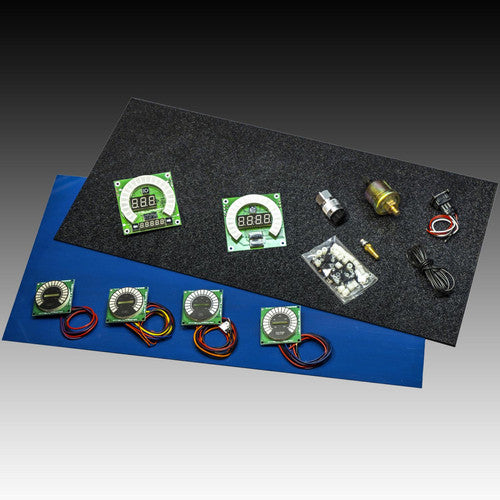

Kit Includes

• 12" x 24" ABS plastic back panel (trimmable)
• 12" x 24" tinted Plexiglas sheet (trimmable)
• Mounting hardware
• All required sending and sensor units

Gauge Features

• Signature LED bargraph design
• Microprocessor-controlled accuracy
• Automatic night dimming
• Lifetime Warranty on all gauges

Gauge Specifications

Speedometer / Tachometer Combo

• Gauge size: 3-7/16" x 3-7/16"
• Speedometer: Reads up to 255 MPH
• Odometer and trip meter
• One-button calibration (independent of tire size, gear ratio, or transmission)
• 0–60 MPH time
• 1/4 mile elapsed time
• High-speed recall
• Compatible with PCM, electric VSS transmissions, or included electronic sender S9013

Tachometer

• Reads 0–9900 RPM
• 100 RPM increments

Fuel Level Gauge

• Displays Empty to Full in 1/4 increments
• Selectable ohms ranges: 0–90, 73–10, 10–180, and 240–33

Voltmeter

• 12–16 volt range
• No sending unit required

Water Temperature Gauge

• 160° to 240°F range
• Sending unit included
• Note: A 1/2" bushing is included by default; request a 3/8" bushing at checkout if needed

Oil Pressure Gauge

• 0–80 PSI range
• Oil pressure sender S8868 included

Indicators

• Turn signal indicators
• High beam indicator

Available LED Colors

• White
• Red
• Blue
• Green
• Teal

Speedometer Reading Options

• Order in MPH or KPH

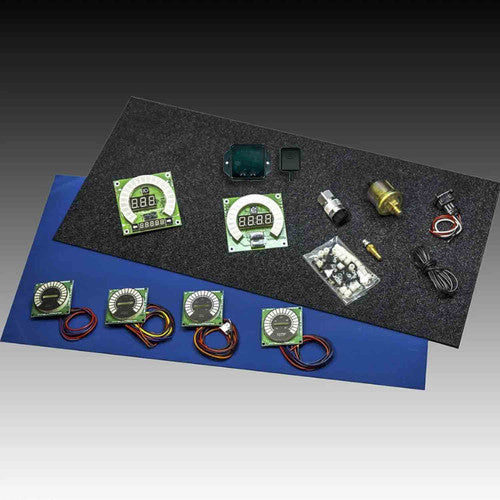

Optional Upgrades

GPS Speedometer Sending Unit

• Simple 3-wire hookup
• Works with 4000, 8000, or 16000 PPM speedometers
• Built-in GPS eliminates speed errors from tire or gear changes

Universal Gauge Harness

• 8' length
• Color-coded wiring
• Quick-connects for easy gauge removal
• Includes connectors for water temperature, oil pressure, tachometer, voltmeter, fuel level, speedometer, dash lights, turn indicators, and high beam indicator

LS Swap Kit

• Includes 12mm and 16mm bushings
• Includes 10K 1/2-watt resistor
• Designed for GM LS engine swaps

Easy Install, Lifetime Warranty, and unmatched customization — CREATE-A-DASH BARGRAPH is the perfect solution for builders who demand precision, flexibility, and a clean, professional digital dash.
