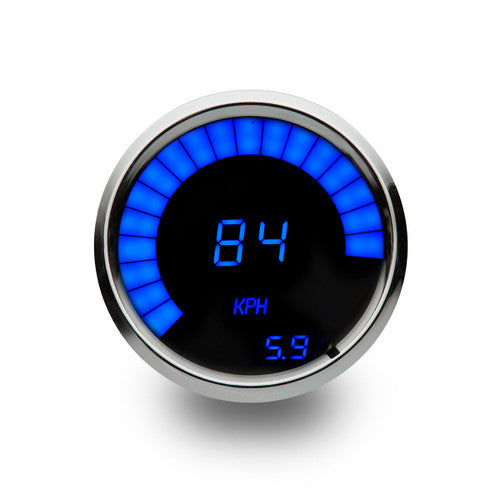

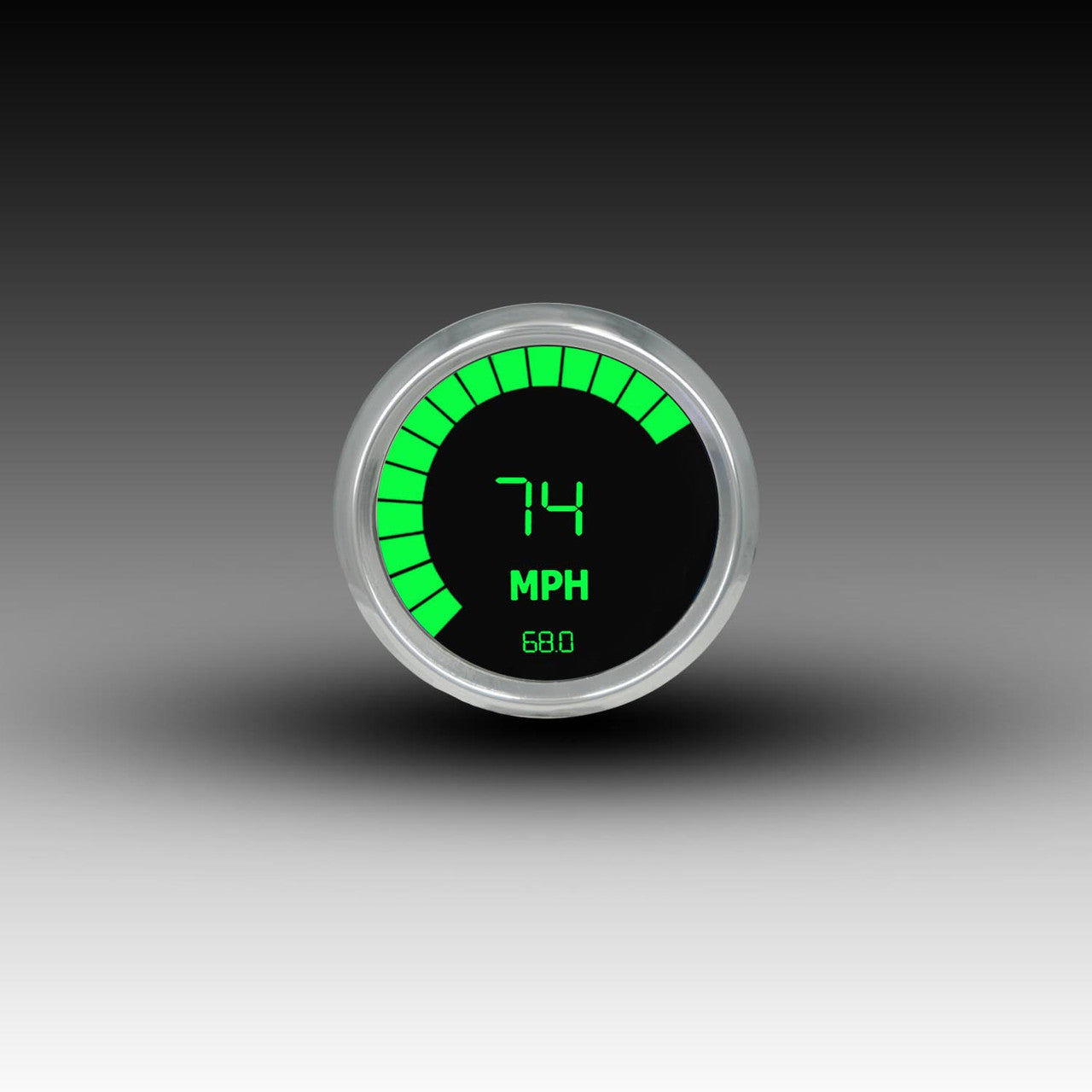

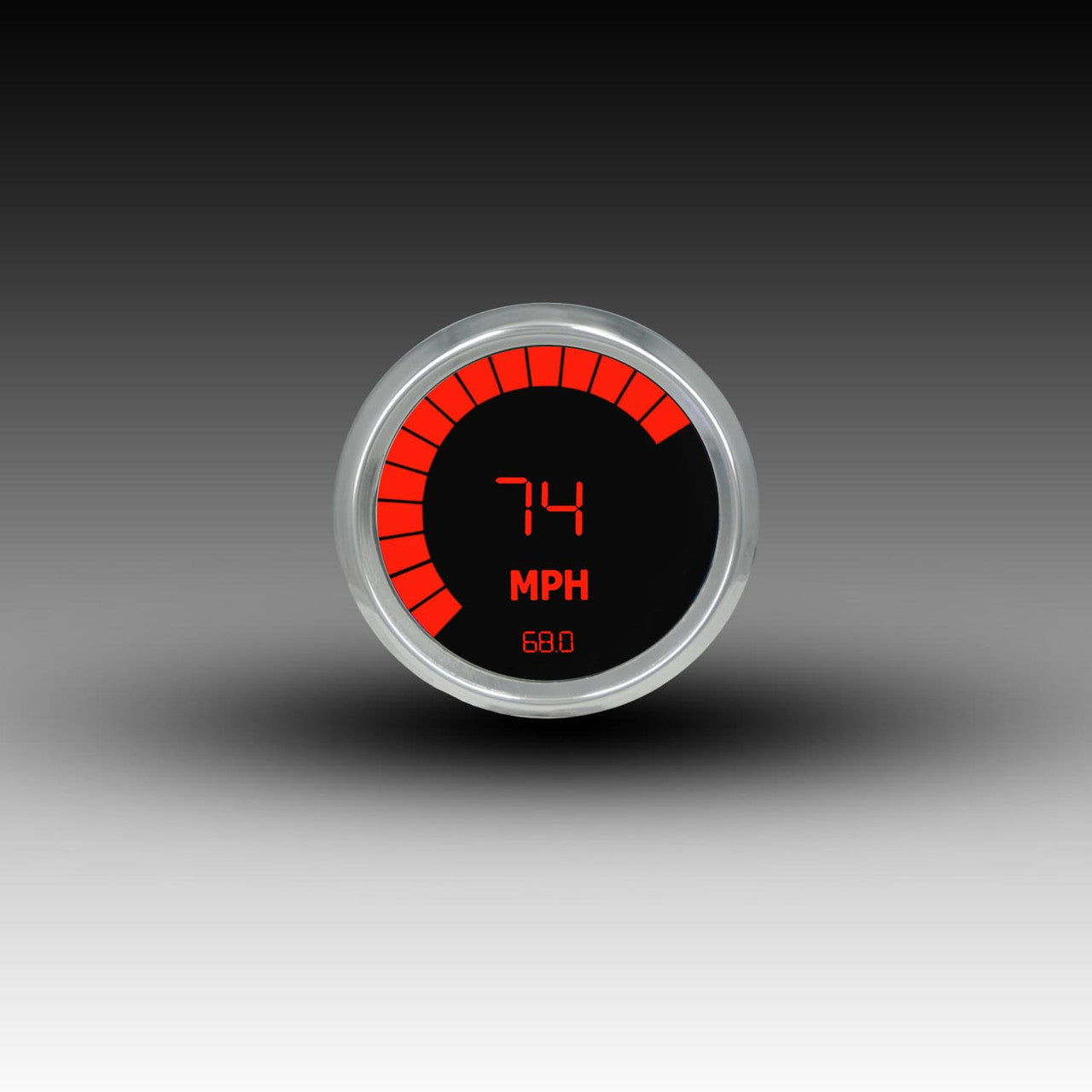

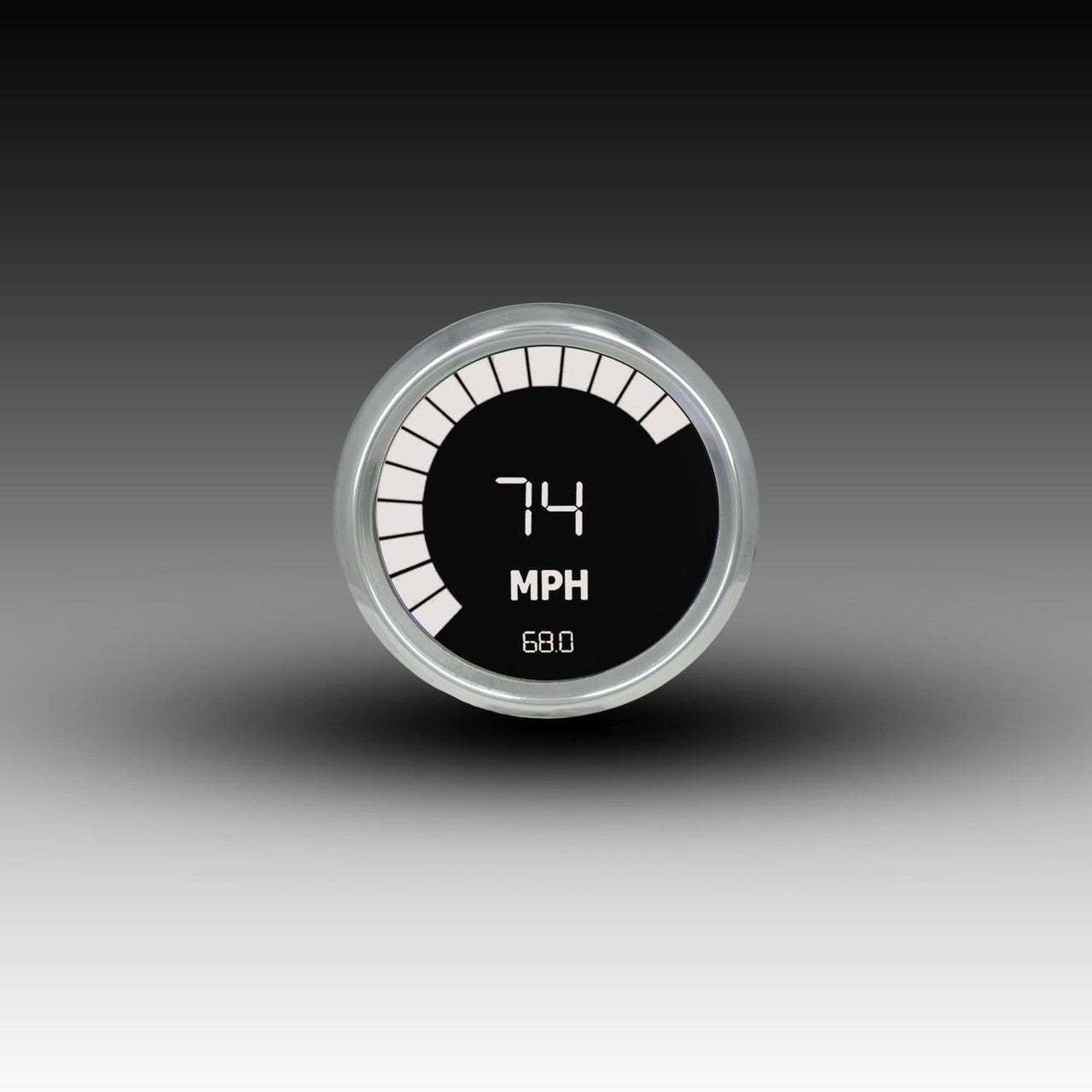

LED Digital Bargraph Programmable Memory Speedometer-Tachometer
The LED Digital Bargraph Programmable Memory Speedometer-Tachometer is microprocessor-controlled and features top speed recall with readings up to 255 MPH. This Intellitronix memory speedometer-tachometer combines multiple performance functions into one advanced digital gauge, delivering accurate, super bright, and intelligent operation.
Programmable features include 0–60 MPH time, 1/4 mile elapsed time recall, high-speed recall, odometer, and trip odometer. One-button calibration allows adjustment for different tire sizes, wheel sizes, and gear ratios. The unit works with any mechanical or electronic transmission.
The built-in tachometer reads engine speed from 0 to 9900 RPM in 100 RPM increments.
Other features include:
- 3 3/8" diameter and 1 1/2" deep
- Automatic nighttime dimming
- In-dash mounting hardware included
- Absolute brightest LEDs available
- Sending unit not included
If your vehicle uses a magneto ignition system, connect the tachometer signal wire to the negative side of the coil. Do not connect the tachometer terminal to the positive or high-voltage side of the ignition coil. Many tachometers, shift lights, or RPM-activated switches will not read directly from a magneto, and a Magneto Signal Converter may be required.
Intellitronix is the leader in daylight-readable gauges and has been manufacturing digital gauges since 1981. No other gauge compares in brightness.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
Note: Image is for reference only, actual product may vary slightly.
