Intellitronix LED Digital Bargaph Gauge Panel With Black Faceplate For 73-87 Chevrolet Truck
Intellitronix LED Digital Bargaph Gauge Panel With Black Faceplate For 73-87 Chevrolet Truck

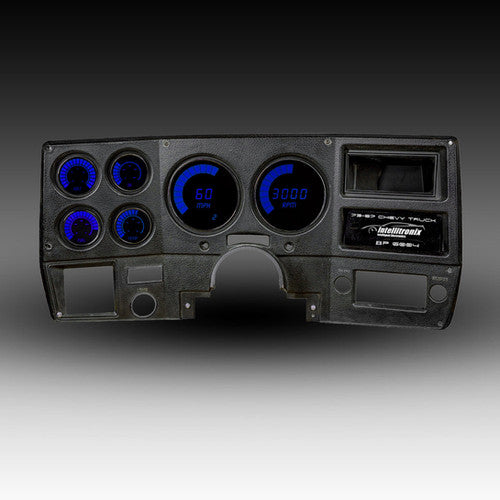

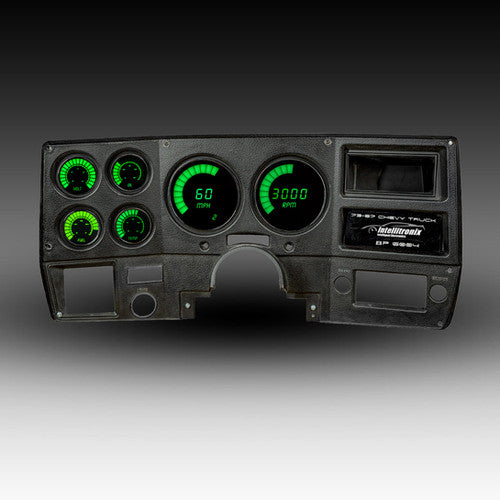

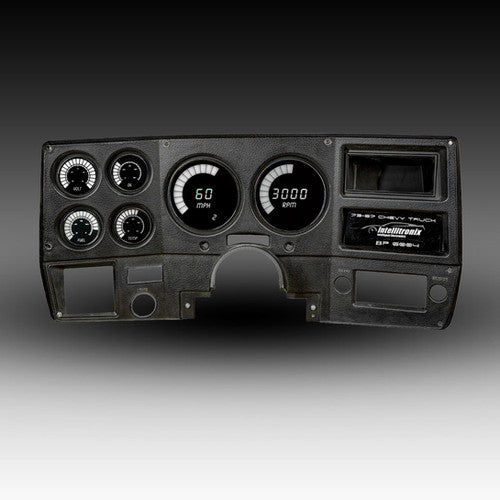

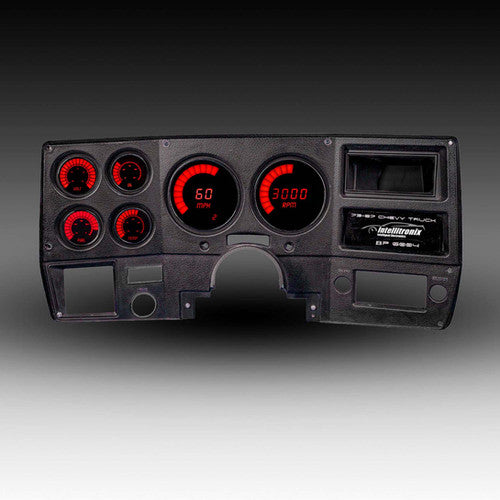

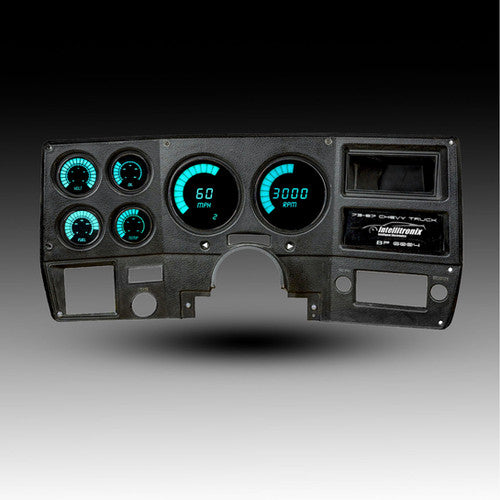

Dress up your 1973–87 Chevy Truck with the state-of-the-art 73–87 Chevy Truck LED Digital Bargraph Direct Fit Panel Replacement from Intellitronix.
The modernized dash kit comes complete with direct fit printed circuit board, custom fit smoked plexiglass faceplate, universal temperature & oil pressure sending units.
Features
-
Speedometer: Reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapse time, and high speed recall, all with the push of a button.
Tachometer: Displays 0-9999 RPM In 9999, 9990, 9900 RPM Increments and is programmable for 4-6-8-cylinder engines.
Water Temperature: Displays 100-300°F range and sending unit is included. If you need a 3/8" bushing, please note on your order, because we send the more common 1/2"" bushing--otherwise, you will have to supply the bushing on your own.
Oil Pressure: Reads 0-100 PSI and sending unit S8868 is included.
Voltmeter: Reads 7.0-18.0 volts range
Fuel Level: Reads 0-99% range in 1% increments and is programmable for 73-10-20, 220-20, 0-90, 10-180 ohms.
The panel includes turn signals, high beam, brake, and 4-wheel drive indicator.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
If using factory equipment, GPS (S9020) will be required for speed signal
NOTE: BEZEL NOT INCLUDEDNOTE:DOES NOT WORK WITH A CAN BUS SYSTEM DIRECTLYIncludes Speedometer Sending Unit - S9020

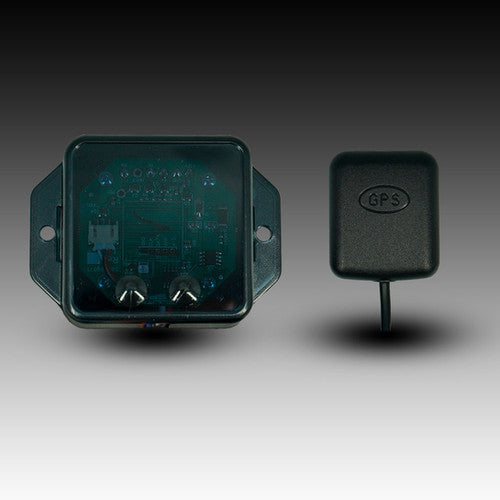

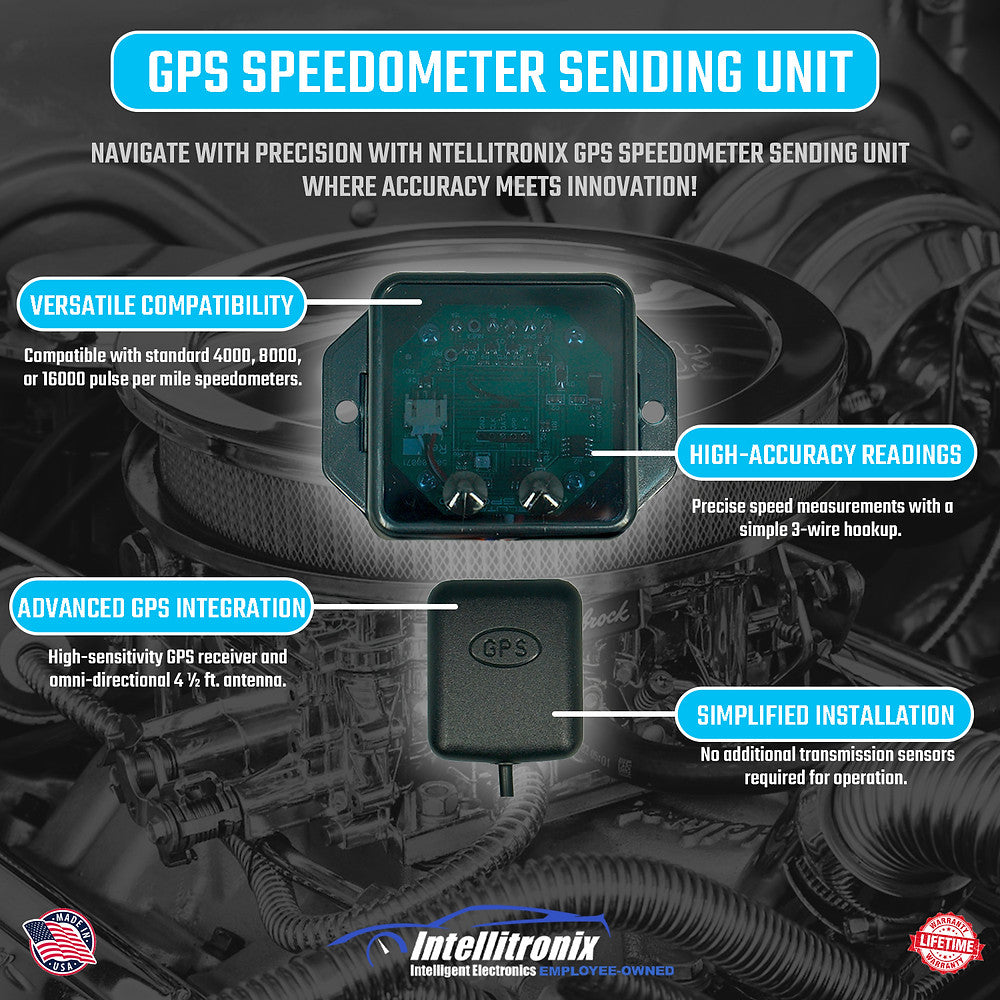

The Intellitronix GPS Speedometer Sending Unit is designed to provide an accurate speed signal using satellite tracking, bypassing the transmission or computer signal. It is compatible with all Intellitronix speedometers and supports multiple pulse-per-mile options for flexible installation.
Features
- Control module dimensions: 2.5" x 2.5"
- Antenna dimensions: 1" x 1"
- 12V analog square wave output
- Pulse options: 4000, 8000, or 16000 pulses per mile
- Programmable option with Intellitronix speedometers
- Includes 4 1/2 ft antenna
- Bypasses transmission/computer and picks up speed signal via satellite signal
- Compatible with ALL Intellitronix speedometers
Fitment:
- 1973-1987 Chevrolet Truck
- 1973-1987 General Motors Truck
Note: Image is for reference only, actual product may vary slightly.
