Intellitronix LS Engine Ignition Coil Set of 8 IGCL001-LS

LS Ignition Coils – IGCL001-LS

Intellitronix high-output LS Ignition Coils are engineered for high-performance LS ignition systemsand racing applications. Designed specifically for V8 LS-based engines, these coils are compatiblewith Buick, Cadillac, Chevrolet, GMC, H2 Hummer, and Pontiac vehicles equipped with Gen III/IV Chevysmall block LS engines.

These high-output ignition coils deliver increased voltage for improved combustion and overallengine performance. They are a direct replacement for factory coils and mount in the original stocklocation, making installation quick and hassle-free. With lower primary resistance, higher RPMcapability, and significantly greater output than OEM coils, these are a serious upgrade for anyLS-powered vehicle.

Features:

• Direct replacement for factory LS ignition coils
• High-output design for improved spark energy
• Lower primary resistance and higher RPM capability than stock coils
• Mounts in factory stock location
• Designed for Gen III / Gen IV LS engines

Technical Specifications:

• Resistance: 0.500 ohms – 2.00K ohms
• Voltage Output: Up to 40,000 volts
• Turns Ratio: 75: 1
• Inductance: 2.70 mH
• Peak Current: 220 mA
• Spark Duration: 300 microseconds

Package Includes:

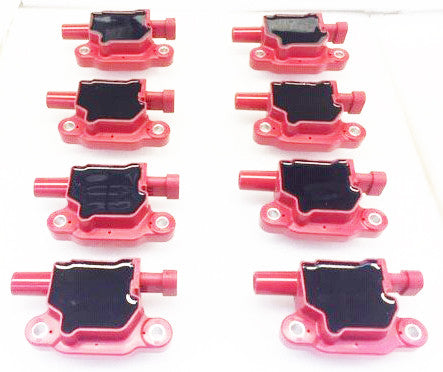

• Set of 8 LS Ignition Coils

Easy installation, factory lifetime warranty, and proven performance make these LS ignition coilsan excellent upgrade for any high-performance LS engine.

Brand: Intellitronix
Part Number: IGCL001-LS

Note: Image is for reference only, actual product may vary slightly.
