Intellitronix Universal LED Analog Gauge Cluster Set With Black Faceplate

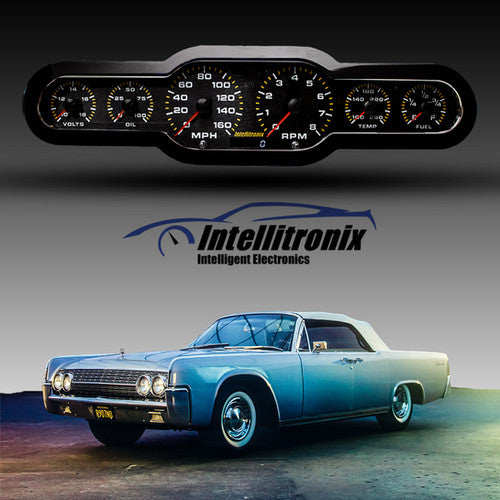

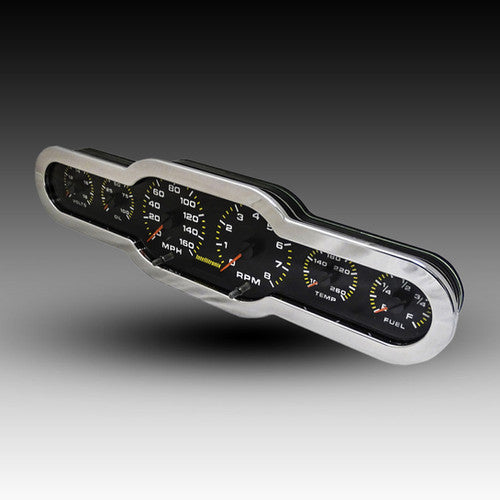

The clean, sleek, classic design of the 6-Gauge 2D Analog Universal Panel comes with Intellitronix signature black polycarbonate subsurface with brush stroke finish, making it an unforgettable show stopping dash. The 6-Gauge 2D Analog Universal Panel comes equipped with speedometer, tachometer for 8-, 6-, and 4-cylinder engines, fuel level, voltmeter, oil pressure, and water temperature gauges, as well as a digital clock, turn signal indicators, and high beam indicator with chromed bezel.

Works with any mechanical or electronic transmissions, or you can purchase separately a GPS speedometer sender from Intellitronix.

Automatic nighttime dimming.

Speedometer: Reads up to 160 MPH and includes one button calibration, regardless of tire size, gear ratio, or transmission. Features include odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time, all with the push of a button.

Tachometer: Reads from 0 to 8000 in 100 RPM increments.

Water Temperature: reads from 100-260 degrees Fahrenheit.

Fuel Level: User programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders, reading from 0-99.

Voltmeter: With high and low voltage reads from 10.0 to 18.0 volt range.

Oil Pressure Gauge: Reads from 0-100 psi.

The oil pressure sending unit is included.

Dimensions: 17" length x 4 3/4" height x 2 3/4" width.

Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your vehicle to the next level.

ACCESSORIES

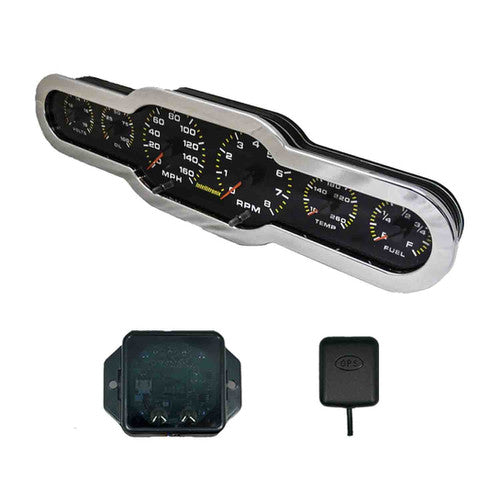

All required sending and sensor units are included.

The oil pressure sending unit is included.

The speedometer sender is included. If you need a Ford sending unit, please add a note at checkout and a Ford sending unit will be included; otherwise, the GM/Mopar/VW unit will be supplied.

The water temperature sending unit is included. Please add a note at checkout if you need a 3/8" bushing, as the standard 1/2" bushing is supplied; otherwise, you will have to supply the correct bushing on your own.

Brand: Intellitronix
Part Number: AP20002

Note: Image is for reference only, actual product may vary slightly.
