Baja Designs Roof Rack Rail Light Kit S1 Series Work/Scene Pattern Clear Lens 447862
Customer Ratings
Baja Designs Roof Rack Rail Light Kit S1 Series Work/Scene Pattern Clear Lens 447862
Baja Designs Roof Rack Rail Light Kit S1 Series Work/Scene Pattern Clear Lens
Give your van the best camp lighting solution with our 2019-On Mercedes Sprinter Van S1 Roof Rack Rail Kit. This kit comes with 4 S1s in a work scene lens pattern, mounting brackets, wiring and all the necessary hardware for an easy install.
Note: This kit was only tested on the OEM roof rack rails.
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications (Per Light):
- Lumens: 2,375 Utilizing 1 LED
- Wattage/Amps: 20W / 1.45A
- Dimensions: 2.1 inch x 2.1 inch x 2.1 inch
- Safe Voltage Range: 9-28V
- Weight: 0.4 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

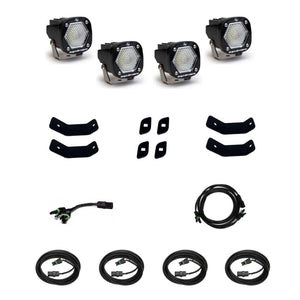

Includes:
- x4 S1 LED Lights in Work Scene
- x8 Mounting Brackets
- x1 Toggle Switch Style Wiring Harnesses
- x4 10 foot Extensions
- x2 55 inch Splitters
- x1 Wiring Splitter
- All necessary hardware
Application:
Mercedes Sprinter Van 2019-On
Patterns:
Work/Scene: Excellent work light or scene light with an extremely smooth circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
0Brand: Baja Designs
Part Number: 447862
Fitment:
- Mercedes-Benz Sprinter 1500 Base 2019-2024
- Mercedes-Benz Sprinter 2500 Base 2019-2024
- Mercedes-Benz Sprinter 3500 Base 2019-2024
- Mercedes-Benz Sprinter 3500XD Base 2019-2024
Note: Image is for reference only, actual product may vary slightly.
