Baja Designs Roof Light Bar Kit XL Linkable Series Multi Pattern Clear Lens

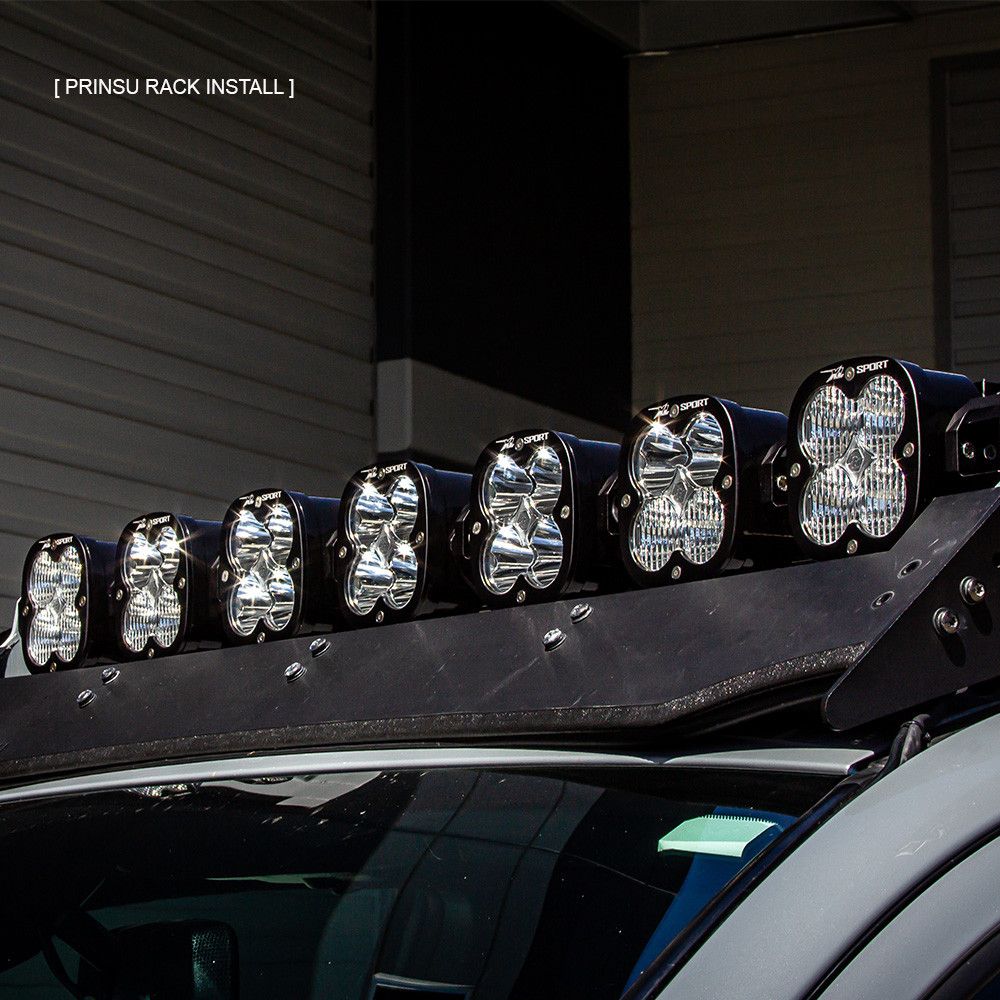

So you've got a Prinsu rack and you want to mount an LED light bar? We've got you covered! The Prinsu racks come with the option for a 40 inch light bar cutout, for users with this option we've created a turn key kit that includes everything you need to get a performance based lighting solution.

This kit utilizes our 7 Light XL Linkable kit that provides you with a crisp 22,050 lumens. In terms of hardware and accessories we include brackets that are proprietary to Prinsu's rack design, all required hardware, a relay harness for the XL Linkable, and Rock Guards.

This is an all inclusive kit that will compliment your Prinsu rack along with giving you some serious night time lighting performance.

Note: If you did not purchase a rack with the 40 inch Light Bar cutout option we have included instructions on how to cut your existing panel.

Baja Designs Features:

• Satisfactions Guarantee - 30 Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It.
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:

• Lumens: 22,050 Utilizing 28 LEDs
• Wattage/Amps: 182W / 14A
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

Application:

Any Prinsu Rack
Includes:

• x3 XL Sport Spot LED Light
• x2 XL Sport Driving/Combo LED Light
• x2 XL Sport Wide Cornering LED Light
• x7 XL Sport Rock Guards
• Pre-load Center Bracket
• Prinsu Specific Brackets (304 Stainless Steel)
• XL Linkable Harness
• Adjustability:

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction

Brand: Baja Designs
Part Number: 447745

Fitment:

• Toyota 4Runner 40th Anniversary Edition 2023-2024
• Toyota 4Runner Limited 2023-2024
• Toyota 4Runner SR5 2023-2024
• Toyota 4Runner SR5 Premium 2023-2024
• Toyota 4Runner TRD Off-Road 2023-2024
• Toyota 4Runner TRD Off-Road Premium 2023-2024
• Toyota 4Runner TRD Pro 2023-2024
• Toyota 4Runner TRD Sport 2023-2024
• Toyota FJ Cruiser Base 2007-2014
• Toyota FJ Cruiser Core 2007-2014
• Toyota FJ Cruiser Premium 2007-2014
• Toyota FJ Cruiser Trail Teams Special Edition 2007-2014
• Toyota FJ Cruiser TRD Special Edition 2007-2014
• Toyota Tacoma Base 2005-2023
• Toyota Tacoma Base Prerunner 2005-2023
• Toyota Tacoma Edicion Especial 2005-2023
• Toyota Tacoma Limited 2005-2023
• Toyota Tacoma Nightshade 2005-2023
• Toyota Tacoma Pre Runner 2005-2023
• Toyota Tacoma Sport 2005-2023
• Toyota Tacoma SR 2005-2023
• Toyota Tacoma SR5 2005-2023
• Toyota Tacoma SR5 Prerunner 2005-2023
• Toyota Tacoma Trail 2005-2023
• Toyota Tacoma Trail Special Edition 2005-2023
• Toyota Tacoma TRD Off-Road 2005-2023
• Toyota Tacoma TRD Pro 2005-2023
• Toyota Tacoma TRD Sport 2005-2023
• Toyota Tacoma TRD Sport Prerunner 2005-2023
• Toyota Tacoma X-Runner 2005-2023
• Toyota Tundra 1794 2007-2021
• Toyota Tundra 1794 Edition 2007-2021
• Toyota Tundra Base 2007-2021
• Toyota Tundra Limited 2007-2021
• Toyota Tundra Nightshade 2007-2021
• Toyota Tundra Platinum 2007-2021
• Toyota Tundra SR 2007-2021
• Toyota Tundra SR5 2007-2021
• Toyota Tundra Trail 2007-2021
• Toyota Tundra TRD Off-Road 2007-2021
• Toyota Tundra TRD Off-Road Premium 2007-2021
• Toyota Tundra TRD Pro 2007-2021
• Toyota Tundra TRD Sport 2007-2021
• Toyota Tundra TRD Sport Premium 2007-2021

Note: Image is for reference only, actual product may vary slightly.
