Baja Designs A-Pillar Light Kit Pair Squadron Sport Series Spot Pattern Clear Lens Toggle Wiring 447696
Customer Ratings
Baja Designs A-Pillar Light Kit Pair Squadron Sport Series Spot Pattern Clear Lens Toggle Wiring 447696
Baja Designs A-Pillar Light Kit Pair Squadron Sport Series Spot Pattern Clear Lens Toggle Wiring
With the Ford, F150 (21-On) A Pillar Kit being an easy bolt on application, this makes it simple to put our Squadron Pros on your vehicle. Whether this kit is for camp lighting or cruising down a dark road, this kit will give all the output you need.

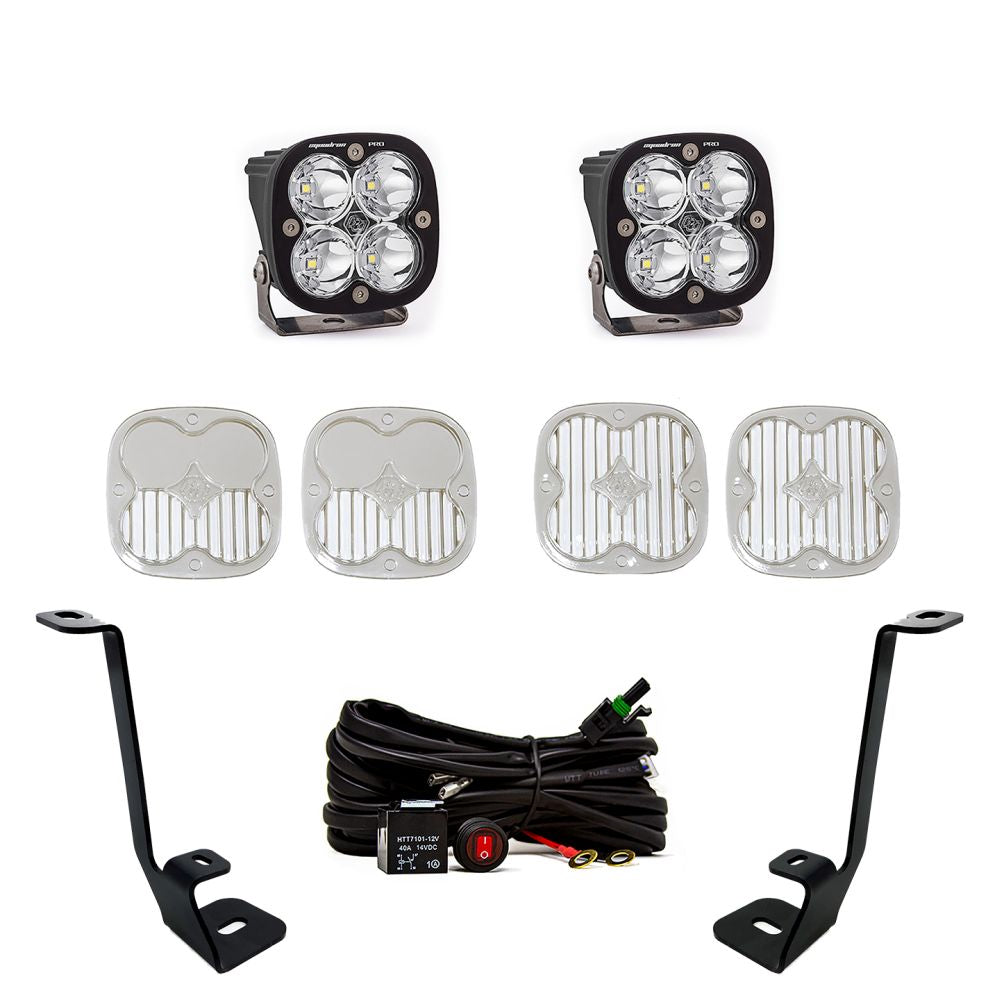

This kit includes powder coated A-Pillar brackets, stand-alone wiring harness, stainless-steel hardware as well as Squadron Driving Combo and Squadron Wide Cornering lenses to give you the option to fully customize the pattern of your A-Pillar lights.
Baja Designs Features:
- Satisfactions Guaranteeand30 Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Specifications (Per Light):
- Lumens: 4,600 Utilizing 2 types of Cree LEDs
- Wattage/Amps: 40W / 2.90A
- Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Application:
Ford F150 (21 - On)
Included:
- Squadron Pro, Spot Pair
- x2 A-Pillar Brackets
- x1 Toggle Switch Harness
- x1 Parts Bag
- x2 Driving Combo Lenses
- x2 Wide Cornering Lenses
Patterns:
Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (8 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
0Brand: Baja Designs
Part Number: 447696
Fitment:
- Ford F-150 King Ranch 2021-2022
- Ford F-150 Lariat 2021-2022
- Ford F-150 Limited 2021-2022
- Ford F-150 Platinum 2021-2022
- Ford F-150 Police Responder 2021-2022
- Ford F-150 Raptor 2021-2022
- Ford F-150 SSV 2021-2022
- Ford F-150 Tremor 2021-2022
- Ford F-150 XL 2021-2022
- Ford F-150 XLT 2021-2022
Note: Image is for reference only, actual product may vary slightly.
