Baja Designs Bumper LED Light Kit XL Linkable Series Multi Pattern Clear Lens Toggle Wiring

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs.

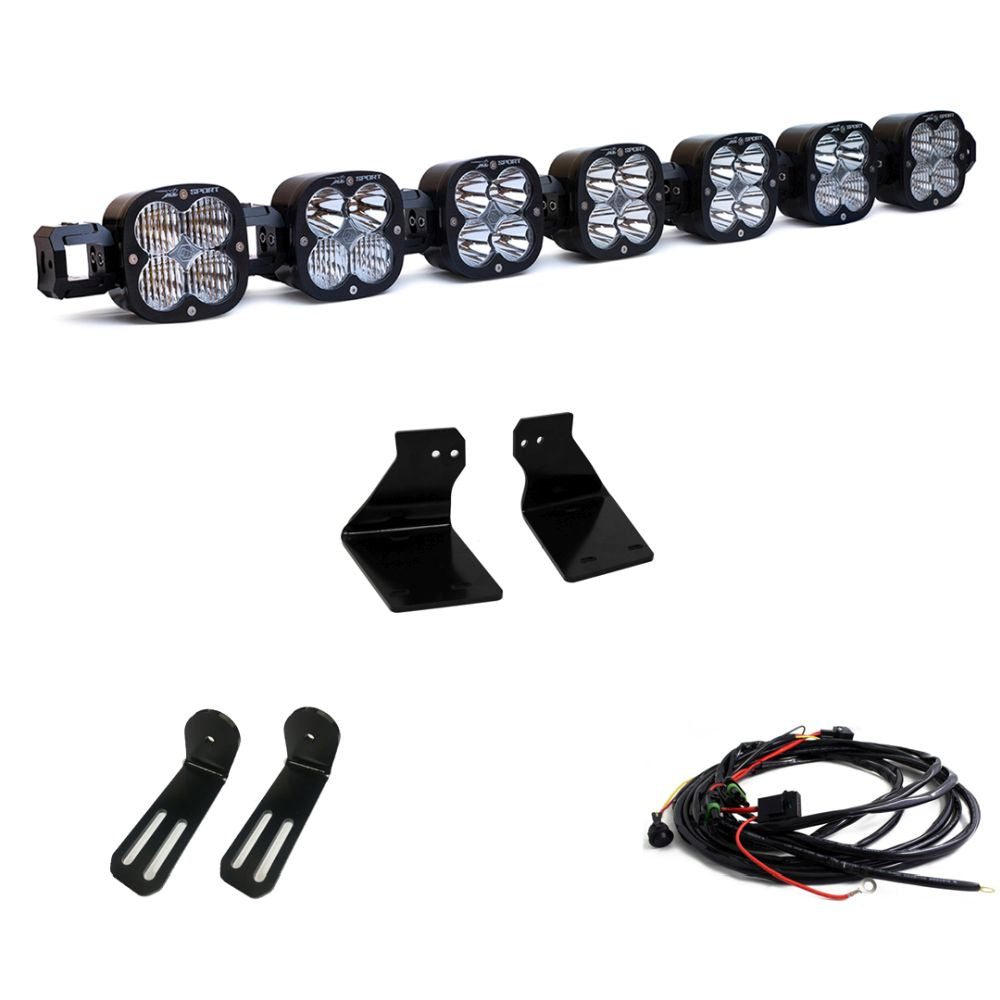

This kit includes 7 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

This kit includes all the necessary components to outfit your 2020+ Ford Superduty with 7 XL Linkables. The harness in this kit is a toggle switch style designed for the enthusiast who Does not have the factory upfitters in their Superduty.

Baja Designs Features:

• Satisfactions Guarantee - 30 Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It.
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:

• Lumens: 22,050 Utilizing 28 LEDs
• Wattage/Amps: 182W / 14A
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

Includes:

• x3 XL Sport Spot LED Light
• x2 XL Sport Driving/Combo LED Light
• x2 XL Sport Wide Cornering LED Light
• x7 XL Sport Rock Guards
• Support kit
• Standard Harness
• Super Duty Brackets

Application:
(2020- On) Ford Superduty
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Brand: Baja Designs
Part Number: 447732

Fitment:

• Ford F-250 Super Duty King Ranch 2020-2022
• Ford F-250 Super Duty Lariat 2020-2022
• Ford F-250 Super Duty Limited 2020-2022
• Ford F-250 Super Duty Platinum 2020-2022
• Ford F-250 Super Duty XL 2020-2022
• Ford F-250 Super Duty XLT 2020-2022
• Ford F-350 Super Duty King Ranch 2020-2022
• Ford F-350 Super Duty Lariat 2020-2022
• Ford F-350 Super Duty Limited 2020-2022
• Ford F-350 Super Duty Platinum 2020-2022
• Ford F-350 Super Duty XL 2020-2022
• Ford F-350 Super Duty XL Plus 2020-2022
• Ford F-350 Super Duty XLT 2020-2022

Note: Image is for reference only, actual product may vary slightly.
