Baja Designs Fog Pocket Light Kit Dual S2 Sport Series SAE Pattern Baja Amber Lens Toggle Wiring

We here at Baja Designs know that you use your Bronco for what it was designed for. That's why we offer the Squadron SAE/Dual S2 Steel Bumper Fog Pocket Light Kit designed specifically for the factory Steel Bumper.

Light up the trail, lead the pack, and differentiate yourself from the pack with a set of S2 Sport in spot, a set of S2 Sport in driving combo, and a set of Squadron SAE in wide cornering.

This is a comprehensive kit and does not require any additional parts for installation.

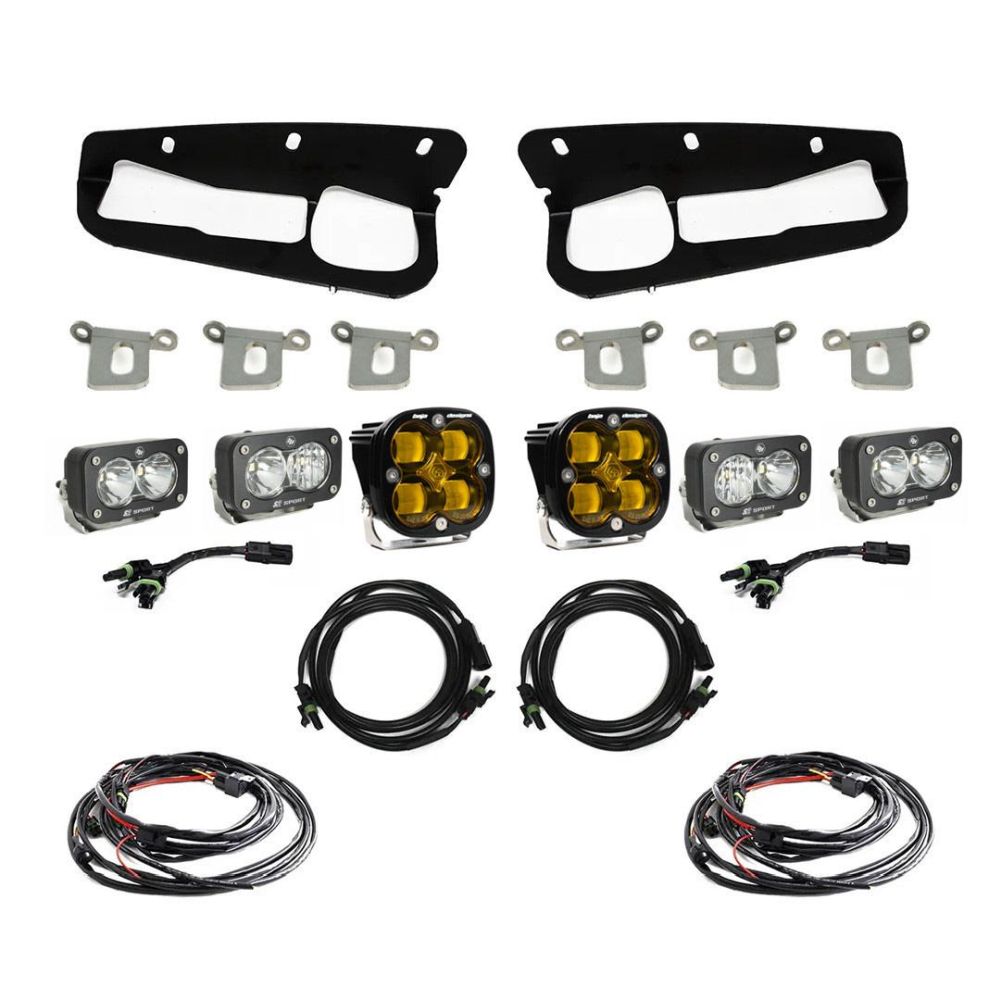

447761, 447762 Kit Includes:

• (2) S2 Sport Spot
• (2) S2 Sport Driving Combo
• (2) Squadron SAE Wide Cornering in Clear or Baja Amber
• (2) Left and Right side fog light facia mounts
• (2) Wire Harnesses (640117)
• (2) 55 Splitter (613606)
• (2) Splitter (613607)
• All Necessary hardwear and parts bags.

447761UP, 447762UP Kit Includes:

• (2) S2 Sport Spot
• (2) S2 Sport Driving Combo
• (2) Squadron SAE Wide Cornering in Clear or Baja Amber
• (2) Left and Right side fog light facia mounts
• (2) Upfitter Wire Harnesses (640093)
• (2) 55 Splitter (613606)
• (2) Splitter (613607)
• All Necessary hardwear and parts bags.
• Satisfaction Guarantee 30-Day Money Back Guarantee
• Limited Lifetime Warranty Complete Purchase Protection
• uService Replaceable Lenses And Optics
• ClearView All The Light, Right Where You Need It
• MoistureBlock Waterproof, Rain Proof, Submersible
• CopperDrive Only LED Driven At 100 Percent
• 5000K Daylight Less Driver Fatigue, Natural Color

Fits
2021-2022 Ford Bronco
Included With Kit:
SKU: 540003

• Dimensions
• Depth (in.) 1.680
• Height (in.) 1.760
• Length (in.) 2.930
• Weight (lbs.) 0.500

Specifications

• Amperage Rating (A) 0.900
• Average Rated Life (hr.) 49,930
• Beam Pattern Driving/Combo
• Bezel Material Billet Machined Aluminum
• Brightness (Lumens) 1581
• Description Driving/Combo; Clear
• Housing Color Black
• Housing Material Powder Coated Cast Aluminum
• Lens Color Clear
• Lighting Modes Hardcoated Polycarbonate
• Light Quantity 1
• Lens Material Beam
• Lighting Quantity 2
• Lighting Type LED
• Lighting Technology Forward Projecting
• Mounting Hardware Included Yes
• Mounting Hardware Material Stainless Steel
• Overvoltage Protection Built-In
• Product Type S2 Sport LED Light Pod
• Wattage (W) 12.420
• Wiring Harness Included No
• Standards & Compliance
• Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 540005
Dimensions
Depth (in.) 1.680
Height (in.) 1.760
Length (in.) 2.930
Weight (lbs.) 0.500
Specifications

• Amperage Rating (A) 0.900
• Average Rated Life (hr.) 49,930
• Beam Pattern Wide Cornering
• Bezel Material Billet Machined Aluminum
• Brightness (Lumens) 1581
• Description Wide Cornering; Clear
• Housing Color Black
• Housing Material Powder Coated Cast Aluminum
• Lens Color Clear
• Lighting Modes Hardcoated Polycarbonate
• Light Quantity 1
• Lens Material Beam
• Lighting Quantity 2
• Lighting Type LED
• Lighting Technology Forward Projecting
• Mounting Hardware Included Yes
• Mounting Hardware Material Stainless Steel
• Overvoltage Protection Built-In
• Product Type S2 Sport LED Light Pod
• Wattage (W) 12.420
• Wiring Harness Included No
• Standards & Compliance
• Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

Brand: Baja Designs
Part Number: 447762

Fitment:

• Ford Bronco Badlands 2021-2024
• Ford Bronco Base 2021-2024
• Ford Bronco Big Bend 2021-2024
• Ford Bronco Black Diamond 2021-2024
• Ford Bronco Everglades 2021-2024
• Ford Bronco First Edition 2021-2024
• Ford Bronco Heritage Edition 2021-2024
• Ford Bronco Heritage Limited Edition 2021-2024
• Ford Bronco Outer Banks 2021-2024
• Ford Bronco Raptor 2021-2024
• Ford Bronco Raptor 2022-2024
• Ford Bronco Wildtrak 2021-2024

Note: Image is for reference only, actual product may vary slightly.
