Dakota Digital Quad Air Pressure Tank Gauge Kit w/3 Sensors 0-300psi ODYR-19-7-3
Customer Ratings
Dakota Digital Quad Air Pressure Tank Gauge Kit w/3 Sensors 0-300psi ODYR-19-7-3

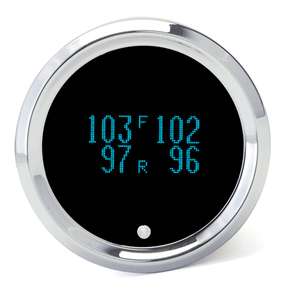

DAKOTA DIGITAL QUAD AIR PRESSURE MONITOR
ODYR-19-7-3 (teal display) kit with 3 x SEN-03-9
Description from Dakota Digital:
The ODYR-19-7 Quad Air Pressure gauge can monitor and simultaneously display the front and rear pressure on front/ rear or four wheel independent air ride systems to display each air bag for proper pressure. Selectable second screen displays tank pressure.
Dakota Digital Odyssey Series II instruments offer a high brightness, non-glare vacuum fluorescent display for excellent daytime visibility and a lifetime of trouble free use. Odyssey Series II instruments are fully backed by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you've come to expect from Dakota Digital!
Quad air pressure gauge in an industry standard 2-1/16" housing.
Range:
0- 300 psi.
A single sensor will be required for each pressure reading. For example, a full independent (front/back/side to side) air system would require 4 sensors (1 for each airbag). A fifth sensor (SEN-03-9) can be added to monitor the air tank pressure if desired.
Please note: The SEN-03-9 sensors are REQUIRED to make the gauge work, and this kit includes 3 of them. If you need more, you can purchase them separately in our eBay store. The individual gauge (ODYR-19-7) and the gauge with 5 x SEN-03-9 (ODYR-19-7-5) are also available for purchase separately in our store.
Resolution:
1 psi
- Separate control box for easy installation.
- User adjustable high and low warning points can trigger an external light or buzzer. (not included)
- Night dimming.
- Choice of either Chrome or Black bezel.
- Teal display.
- Machined aluminum housing.
The BIM-19-2 (updated version of BIM-19-1) shown in the installation manual is INCLUDED with the gauge. 3 of the SEN-03-9 sensors are included with this gauge, if you need more, they are sold separately.
Three of the following sensors are included with this gauge, more can be purchased separately in our store:
- SEN-03-9 - Air Pressure Sensor 0-300psi
Brand: Dakota Digital
Part Number: ODYR-19-7-3
DAKOTA DIGITAL QUAD AIR PRESSURE MONITOR
ODYR-19-7-3 (teal display) kit with 3 x SEN-03-9
Description from Dakota Digital:
The ODYR-19-7 Quad Air Pressure gauge can monitor and simultaneously display the front and rear pressure on front/ rear or four wheel independent air ride systems to display each air bag for proper pressure. Selectable second screen displays tank pressure.
Dakota Digital Odyssey Series II instruments offer a high brightness, non-glare vacuum fluorescent display for excellent daytime visibility and a lifetime of trouble free use. Odyssey Series II instruments are fully backed by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you've come to expect from Dakota Digital!
Quad air pressure gauge in an industry standard 2-1/16" housing.
Range:
0- 300 psi.
A single sensor will be required for each pressure reading. For example, a full independent (front/back/side to side) air system would require 4 sensors (1 for each airbag). A fifth sensor (SEN-03-9) can be added to monitor the air tank pressure if desired.
Please note: The SEN-03-9 sensors are REQUIRED to make the gauge work, and this kit includes 3 of them. If you need more, you can purchase them separately in our eBay store. The individual gauge (ODYR-19-7) and the gauge with 5 x SEN-03-9 (ODYR-19-7-5) are also available for purchase separately in our store.
Resolution:
1 psi
- Separate control box for easy installation.
- User adjustable high and low warning points can trigger an external light or buzzer. (not included)
- Night dimming.
- Choice of either Chrome or Black bezel.
- Teal display.
- Machined aluminum housing.
The BIM-19-2 (updated version of BIM-19-1) shown in the installation manual is INCLUDED with the gauge. 3 of the SEN-03-9 sensors are included with this gauge, if you need more, they are sold separately.
Three of the following sensors are included with this gauge, more can be purchased separately in our store:
- SEN-03-9 - Air Pressure Sensor 0-300psi
Brand: Dakota Digital
Part Number: ODYR-19-7-3
