Dakota Digital Universal 5 Hole RetroTech Gauges System Kit With Wings RET-2000

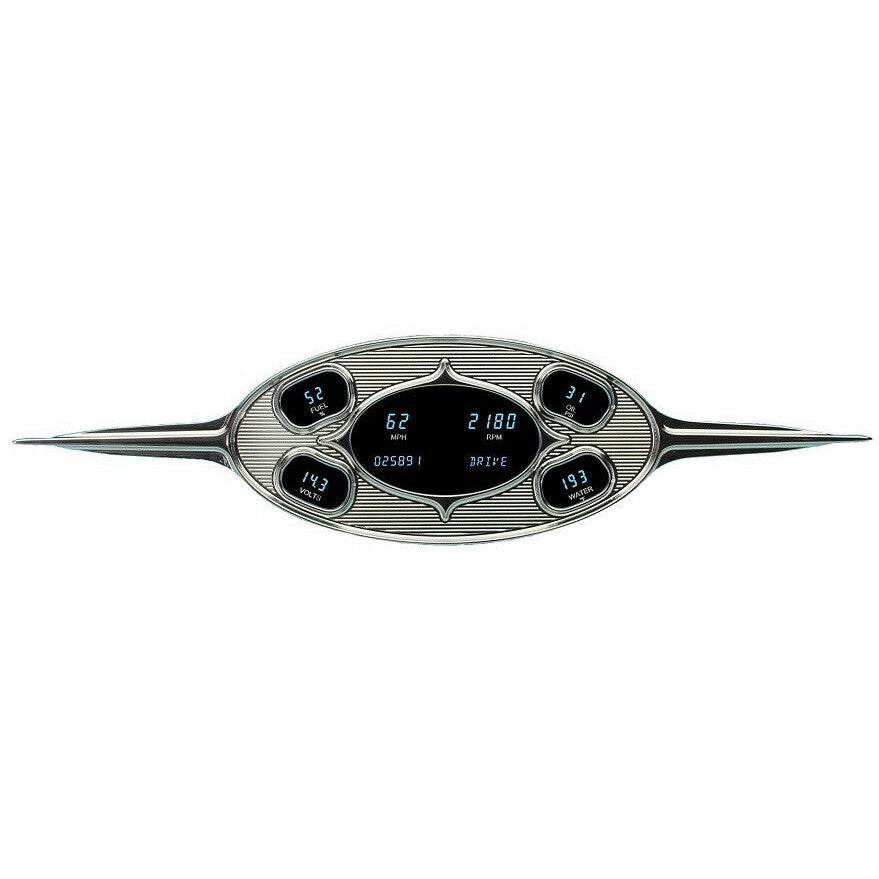

5-HOLE RETROTECH DIGITAL INSTRUMENT SYSTEM
from Dakota Digital
RET-2000 (with wings)
This listing is for one RET-2000 5-Hole Retrotech Digital Instrument System with wings.
Description from Dakota Digital:
Dakota Digital Series III instrument systems offer the latesttechnologies and features for your custom vehicle. High brightnessvacuum fluorescent displays provide a lifetime of trouble free usewhile offering increased accuracy and features!
RetroTech
As the name suggests, the RetroTech information systems are truly areawakening of the retro artistry of the past, coupled with the cuttingedge technology of today. Offering an extensive array of features suchas: 0-255 mph/kph speedometer, 0-9990 Tachometer, 0-80 psi oilpressure, 0-300 degree water temp, 8-17 volt voltmeter, 0-99% fuellevel, million-mile odometer, trip odometer, turn signals, high beam,gear shift, parking brake, cruise control, and check engine indicators!Also, several performance indications are standard features: 0-60mph/0-100 kph timer, 1/4 mile timer, 1/4 mile speed display, high speedrecall, high RPM recall, as well as service and hour meters!
Unit Dimensions:
5-7/8" x 23-7/8" W with Wings.
RET-2000 Side View:
System is available in MPH and degrees Fahrenheit or KM/H and degrees Celsius (metric MFD3 version). If you want to order the metric MFD3- version, please just let us know when you make your order. There is no additional cost, though it may take approx 1-3 weeks to build the metric version.
Please scroll through listing below for more information on the system.
Also available without wings, sold separately in our store:
RET-2000-S:
Specifications
Digital Gauges
Speedometer0-255 MPH (optional metric version: 0-255 km/h)Digital Message Centers
Tachometer0-17,500 RPM
Oil Temperature0-99 PSI
Water Temperature0-300°F (optional metric version 0-150°C)
Fuel Level0-99%
Voltmeter8-17 VDC
Standard ColorsBlue or Teal
Standard DisplaysOdometer (One Time User Settable, Million Mile)Dual (A/B) Trip Meter (0-9,999.9)Built-In Indicators
Performance Meters0-60 MPH Timer (0-100 km/h)1/4 mile time1/4 mile end speed (trap speed)High speed recallHigh RPM recall
GaugesSpeedometer (0-255 MPH/kmh) opposite scale of main speedometer.
IndicatorsTurn Signals (Left/Right)High BeamCheck EngineParking BrakeCruise Control (On / On & Engaged, when vehicle is equipped)Gear Position (Optional GSS-2000 sensor is required, sold separately, GSS-2000 is NOT included)4 x 4 (When vehicle is equipped)Wait to Start (When vehicle is equipped)
Water TemperatureCalibration
1/8" NPT, ground isolated sensor with a 10ft harness.
Oil Pressure1/8" NPT, solid state sensor with a 10ft harness.
Cable Drive Speed Sensor/GeneratorReplaces Ford and/or GM style speedometer cables with a 10ft harness.
BushingsEach kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Push ButtonDakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
Brand: Dakota Digital
Part Number: RET-2000
5-HOLE RETROTECH DIGITAL INSTRUMENT SYSTEM
from Dakota Digital
RET-2000 (with wings)
This listing is for one RET-2000 5-Hole Retrotech Digital Instrument System with wings.
Description from Dakota Digital:
Dakota Digital Series III instrument systems offer the latesttechnologies and features for your custom vehicle. High brightnessvacuum fluorescent displays provide a lifetime of trouble free usewhile offering increased accuracy and features!
RetroTech
As the name suggests, the RetroTech information systems are truly areawakening of the retro artistry of the past, coupled with the cuttingedge technology of today. Offering an extensive array of features suchas: 0-255 mph/kph speedometer, 0-9990 Tachometer, 0-80 psi oilpressure, 0-300 degree water temp, 8-17 volt voltmeter, 0-99% fuellevel, million-mile odometer, trip odometer, turn signals, high beam,gear shift, parking brake, cruise control, and check engine indicators!Also, several performance indications are standard features: 0-60mph/0-100 kph timer, 1/4 mile timer, 1/4 mile speed display, high speedrecall, high RPM recall, as well as service and hour meters!
Unit Dimensions:
5-7/8" x 23-7/8" W with Wings.
RET-2000 Side View:
System is available in MPH and degrees Fahrenheit or KM/H and degrees Celsius (metric MFD3 version). If you want to order the metric MFD3- version, please just let us know when you make your order. There is no additional cost, though it may take approx 1-3 weeks to build the metric version.
Please scroll through listing below for more information on the system.
Also available without wings, sold separately in our store:
RET-2000-S:
Specifications
Digital Gauges
Speedometer0-255 MPH (optional metric version: 0-255 km/h)Digital Message Centers
Tachometer0-17,500 RPM
Oil Temperature0-99 PSI
Water Temperature0-300°F (optional metric version 0-150°C)
Fuel Level0-99%
Voltmeter8-17 VDC
Standard ColorsBlue or Teal
Standard DisplaysOdometer (One Time User Settable, Million Mile)Dual (A/B) Trip Meter (0-9,999.9)Built-In Indicators
Performance Meters0-60 MPH Timer (0-100 km/h)1/4 mile time1/4 mile end speed (trap speed)High speed recallHigh RPM recall
GaugesSpeedometer (0-255 MPH/kmh) opposite scale of main speedometer.
IndicatorsTurn Signals (Left/Right)High BeamCheck EngineParking BrakeCruise Control (On / On & Engaged, when vehicle is equipped)Gear Position (Optional GSS-2000 sensor is required, sold separately, GSS-2000 is NOT included)4 x 4 (When vehicle is equipped)Wait to Start (When vehicle is equipped)
Water TemperatureCalibration
1/8" NPT, ground isolated sensor with a 10ft harness.
Oil Pressure1/8" NPT, solid state sensor with a 10ft harness.
Cable Drive Speed Sensor/GeneratorReplaces Ford and/or GM style speedometer cables with a 10ft harness.
BushingsEach kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Push ButtonDakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
Brand: Dakota Digital
Part Number: RET-2000
