High Lifter Apexx Adjustable Tie Rod HDAS-C-01

NOTES:

Adjustability just got better! The High Lifter APEXX Adjustable Tie Rod assembly offers a highly adaptable solution that can accommodate a wide range of tie rod lengths.

• The inner tie rod is made up of 24.5mm (15/16?) diameter 7.5mm wall DOM-tubing.
• The inner also uses 5/8?-11 high-strength threaded rod for fast adjustment.
• The outer tie rod is 32mm (1-1/4?) diameter 7mm wall DOM.
• Uses 2ea 1/4?-28 set-screws to lock the rods in place once they have been set to the desired length.
• Powder-Coated and zinc plated for superior scratch and corrosion resistance.
• Comes with upgraded heim-end to replace the outer factory tie rod-ends.
• Also includes two Heavy-Duty inner tie rod end that connects to the rack and pinion.
• Adjustability of 7-1/2? minimum length to maximum length.
• Patented design.

Brand: High Lifter
Part Number: HDAS-C-01

Fitment:

• 2023 Can-Am Defender HD10 4x4 Limited DPS CAB
• 2018-2023 Can-Am Defender HD10 4x4 XMR
• 2023 Can-Am Defender HD10 4x4 XMR with Doors
• 2019 Can-Am Defender HD10 4x4 XT Cab DPS
• 2016-2017 Can-Am Defender HD10 4x4 XT Cab DPS
• 2018 Can-Am Defender HD10 4x4 XT Cab DPS CAB
• 2020 Can-Am Defender HD10 4x4 XT Cab DPS CAB
• 2020-2021 Can-Am Defender HD10 6x6 Limited CAB
• 2023 Can-Am Defender HD10 6x6 XT CAB Limited
• 2023 Can-Am Defender Max HD10 4x4 Lone Star Cab DPS
• 2018-2023 Can-Am Defender Max HD10 4x4 Lone Star DPS
• 2019-2023 Can-Am Defender Max HD10 4x4 XMR DPS
• 2023 Can-Am Defender Max HD10 4x4 XMR with Doors
• 2021-2022 Can-Am Defender Pro HD10 4x4 Lone Star DPS

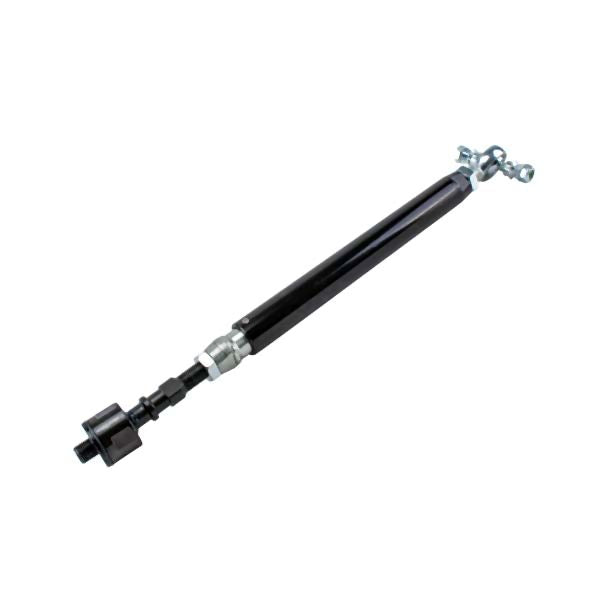

Note: Image is for reference only, actual product may vary slightly.
