Dakota Digital FiTech EFI Interface Module BIM Expansion BIM-01-2-FTCH
Dakota Digital FiTech EFI Interface Module BIM Expansion BIM-01-2-FTCH
NOTES:
The BIM-01-2-FTCH is designed to read the engine information from the FiTech LS, TBI and TCU kits. The BIM-01-2-FTCH module is a direct plug in using the supplied 2 or 4 pin harness for simple connection to the FiTech EFI system.
The BIM-01-2-FTCH will collect and output the following information to Dakota Digital Instrument Systems, shown within the chart below:
Notes: The BIM-01-2-FTCH is designed to decode the information provided by the FiTech LS, TBI and TCU and supply this information to the VFD3 rev. G, VHX, RTX and HDX control box instrument systems only.
Compatible Dakota Digital instrument system: VHX, HDX, RTX and VFD3 systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.
Brand: Dakota Digital
Part Number: BIM-01-2-FTCH

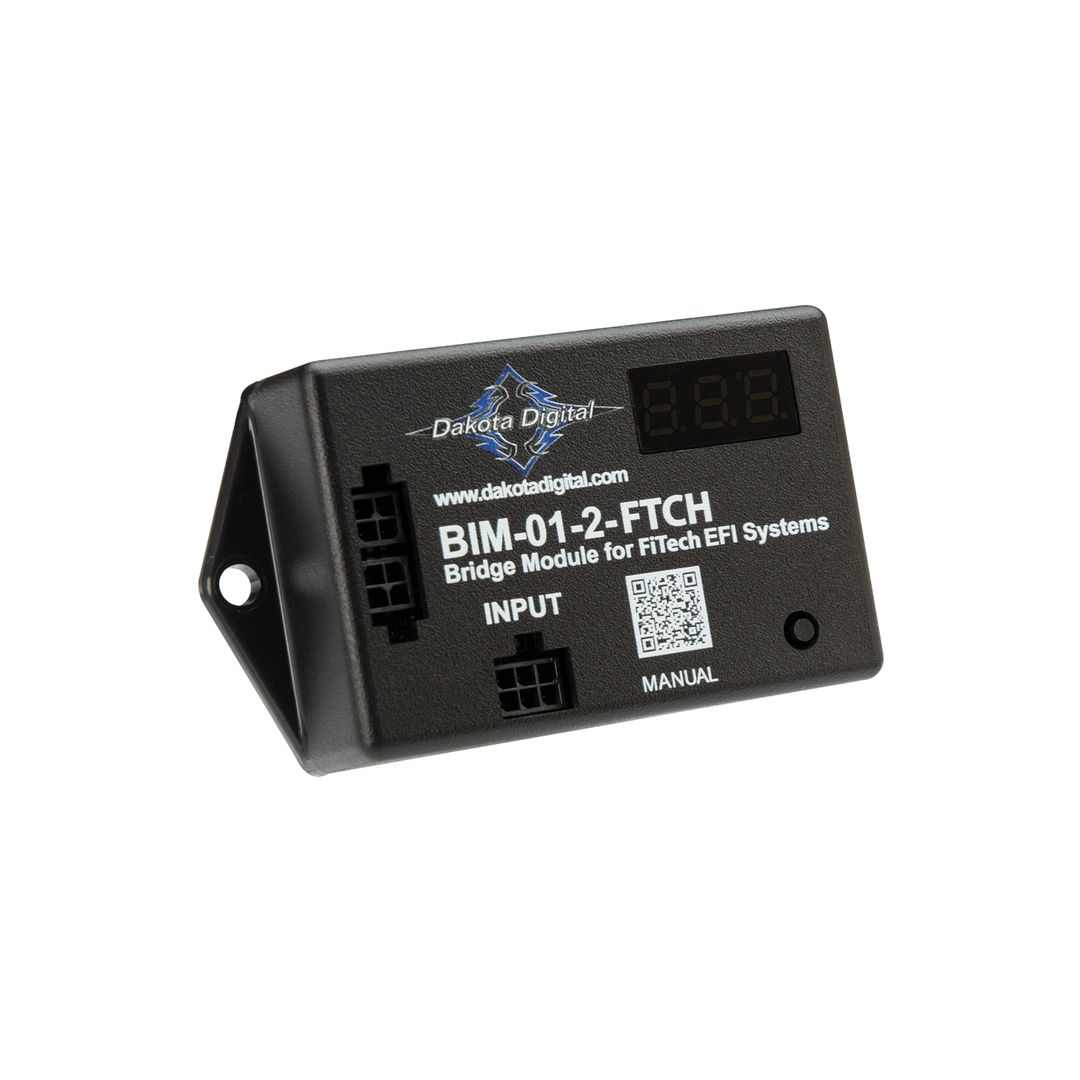

Note: Image is for reference only, actual product may vary slightly.
