Dakota Air Temperature Expansion Module for VFD3 VHX System BIM-14-1 New

Dakota Air Temperature Expansion Module for VFD3 VHX System BIM-14-1 New

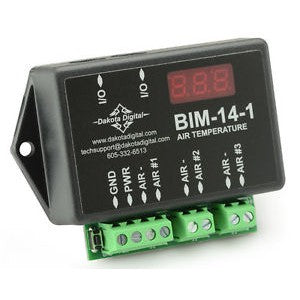

The Dakota Digital Air Temperature Module BIM-14-1 allows you to monitor up to 3 Air Temperature readings: Outside, Inside and Air Intake.

*Requires 1 sender per reading (sold separately).
* °F or °C set by system control box.

**The BIM-14-1 is designed to supply information to the VFD3 rev. G and VHX control box instrument systems only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of Expansion Modules.

Sender Sold Separately:

SEN-15-1 available for an additional $19.95.

Need More? NEW BIM SERIES from Dakota Digital

Dakota Digital is proud to introduce the BIM Expansion modules for Dakota Digital VFD and VHX instrument systems. The introduction of the Dakota Digital BIM modules allow you to add up to an additional 16 gauges, that's right we said SIXTEEN specialty gauges to your vehicle without the need to cut extra holes in the dash or installing pillar and pod mounts to your columns or under the dash.

Please note that the BIM modules are only compatible with current VFD, VHX and RET control boxes which have a black plastic housing. Control boxes with metal housings are not compatible with the BIM modules.
