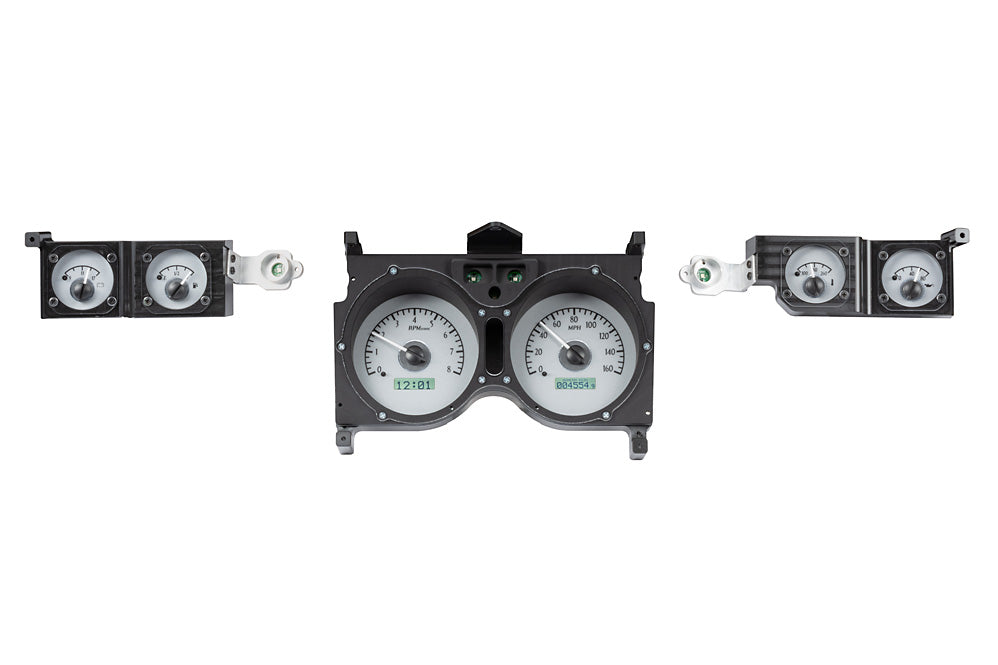

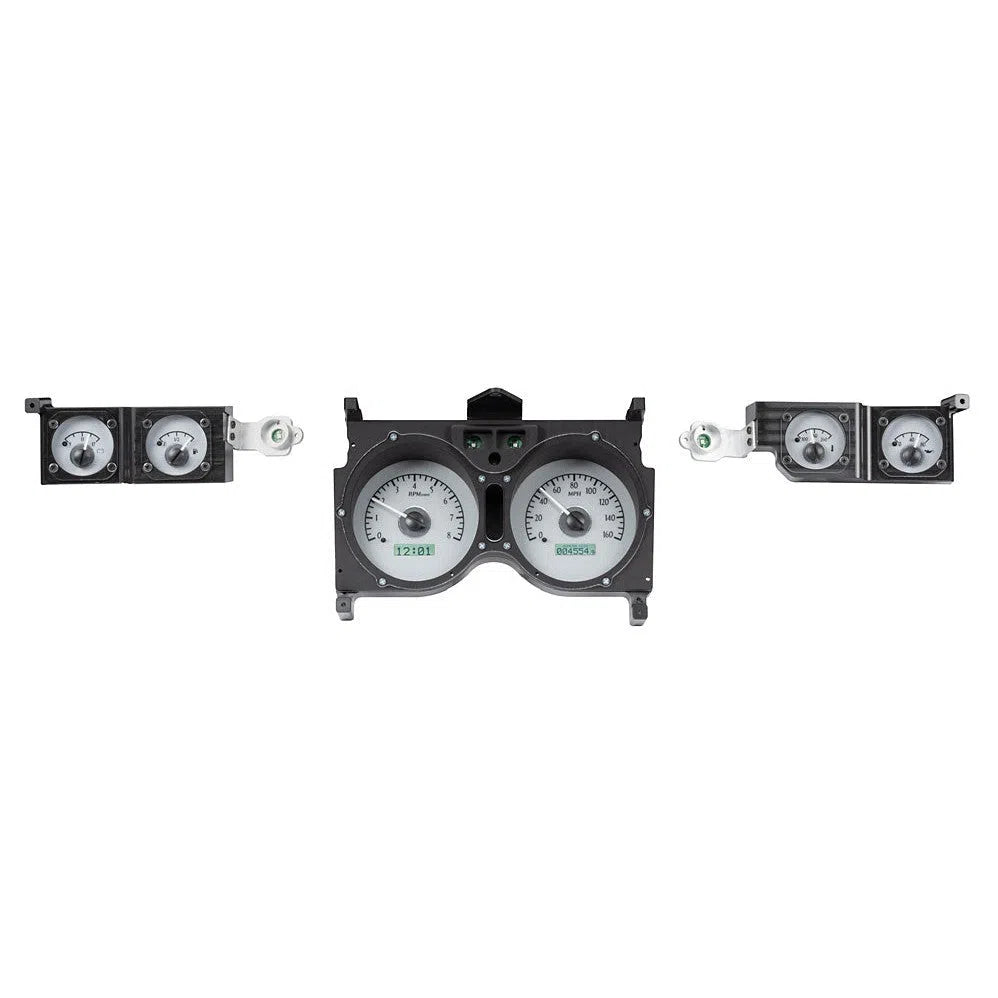

Dakota Digital 1973-1977 Chevrolet Malibu/Monte Carlo/El Camino/GMC Sprint VHX Silver White Display Gauge Kit VHX-73C-CVL-S-W
Customer Ratings
Dakota Digital 1973-1977 Chevrolet Malibu/Monte Carlo/El Camino/GMC Sprint VHX Silver White Display Gauge Kit VHX-73C-CVL-S-W
Dakota Digital 1973-1977 Chevrolet Malibu/Monte Carlo/El Camino/GMC Sprint VHX Silver White Display Gauge Kit VHX-73C-CVL-S-W
Still working through decades of middle-child syndrome, the 1973-77 Chevrolet A Body is a fresh option for those burnt out on ?the same old thing.? We?ve got direct-fit upgrades for cars with round gauges AND the rectangle variety! Either kit uses your original front bezel and gauge carrier to add modern technology, features and dependability to your Colonnade-era muscle car. Large LCD message center keeps you informed and allows expansion for auxiliary readings! Includes required sensors; bezel/gauge carrier not included.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday?s traditional approach to instrumentation. A few of the features which you don?t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Note: Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
Analog Gauges
- Speedometer: 0 -120 MPH (optional metric version 0- 195 kmh)
- Tachometer: 0- 8,000 RPM
- Oil Pressure: 0- 80 psi
- Water Temperature: 100- 260?F (optional metric version 40- 120?C)
- Feul Level: E, 1/4, 1/2, 3/4, F
- Volmeter: 9- 17 VDC
- Lighting: Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Center
- Odometer (One time user settable, Million Mile)
- Dual (A/B) Trip Meter (0- 9,999.9)
- Clock (12 hour)
- Estimated Range/ Miles to Empty
Performance Meters
- 0- 60 MPH Timer (0- 100 kmh)
- 1/4 and 1/8 mile time
- 1/4 and 1/8 mile end speed (trap speed)
- High speed recall
- High RPM recall
Gauges
- Speedometer:0-255 MPH/kmh)
- Tachometer: 0- 9,900 RPM
- Oil Pressure: 0-100 psi displayed in 1 psi increments
- Water Temperature: 100- 300?F/ 40- 150?C displayed in 1 ?F/?C increments
- Voltmeter: 9- 17 VDC
-
Fuel Level : 0-99% full
Lighting
- Auto-contrasting LCD display for optimal view in the brightest of sunlight.

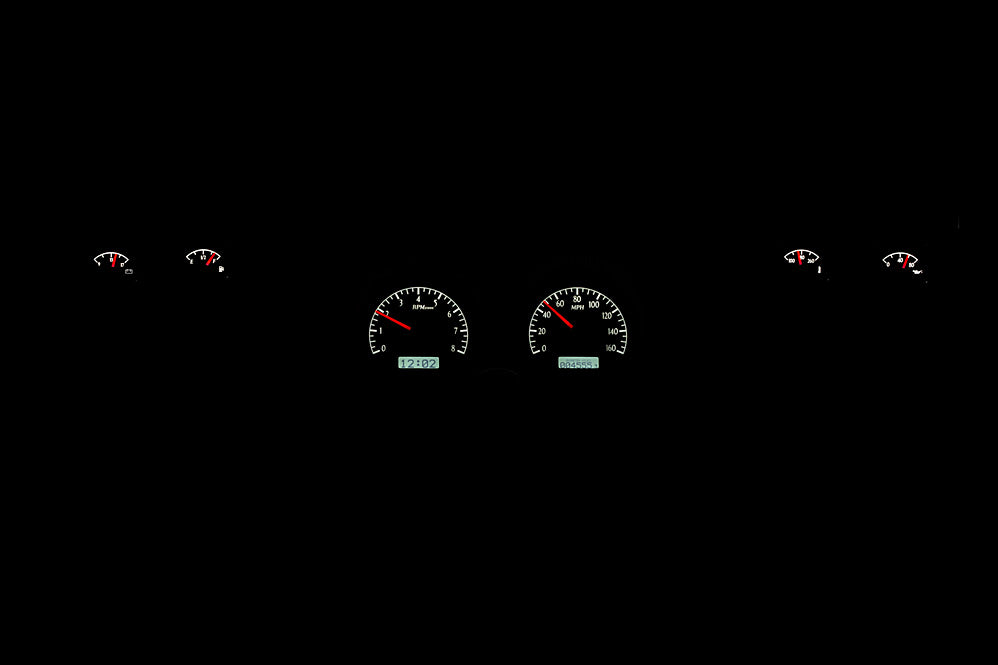

- LED backlit at night to match/ complete the look at night.
Built-In Indicators
- Turn Signals (Left/ Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/ On & Engaged when vehicle is equipped)
- Gear Position (Optional GSS-3000 sensor required)
- 4 x 4 (When vehicle is equipped)
- Wait to Start (When vehicle is equipped)
Note: Not all OEM indicator lamp functions will be replaced.
Standard Displays
Included
- Water Temperature Sensor : 1/8" NPT, ground isolated sensor with a 10 ft harness.
- Oil Pressure Sensor : 1/8" NPT solid state sensor with a 10 ft harness.
- Cable Driven Speed Sensor:Replaces OEM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.
- Bushings: Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
- Control Box Dimensions: 5.5" x 3.5"x 1"
Calibration
Push Button Control
Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
Optional Add-ons
DIM-1 - Light Dimming Knob: Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.
STA-1000 - OBD II Speedometer/ Tachometer Interface: The STA-1000 plugs directly into the OBDII diagnostic connector, providing a user-adjustable traditional Speedometer, Tachometer and Check-Engine output for your choice of aftermarket instruments.
SGI-100BT - Universal Speedometer and Tachometer Interface:The functionality of three devices in one 4? x 2? x 1? case! The SGI-100BT can adjust/split/recalibrate an electronic speed signal, calibrate a tach signal, and aid in the creation and adjustment of a gas tach signal for diesel swap applications!
BIM-01-2 - ODB II/ Can Interface Module: The BIM-01-2 OBD-II (J1850/CAN) Interface connects directly to the ECM diagnostic port to extract engine and transmission data and supply it to the VFD/ VHX/ HDX/ RTX instrument, making installation a breeze.
BIM-01-2-HLLY - Holley EFI Interface Module: The BIM-01-2-HLLY is designed to read the engine information from the Holley Terminator (including X and X Max), HP, Sniper (except Sniper 2), or Dominator EFI kits. The BIM-01-2-HLLY module is a direct plug in using the supplied 2 or 4 pin harness for simple connection to the Holley EFI system.
PAC-2800BT- Electronic Fan Controller 70 Amp with Bluetooth Control: The PAC-2800BT was designed for the ultimate in flexibility and to be a simple add-on in any application using an electric fan. Included is a 70amp relay, enough for even the most power hungry of cooling fans. Fully programmable, the PAC-2800BT will work with your existing water temp gauge, operating from the temperature sending unit already installed. A dedicated sending unit can be installed for applications without a water temp gauge.
GSS-3000 - Universal Gear Position Sensor: All Instrument packages contain a gear shift indicator display allowing the transmission gear position (Park, Reverse, etc.) to be shown within the message center. The GSS-3000 accommodates automatic transmissions with 2- 4 forward gears and enjoys a simple and straightforward installation.
GPS-50-2 - GPS Speed/ Compass Sender/ BIM: Highly advanced electronic and software design allow the GPS-50-2 to work unlike anything else, with accelerometers and predictive software to compensate for times when GPS inherently struggles: overpasses, mountains, tunnels, heavy tree cover, large buildings, passing large vehicles, etc. Unique electronic architecture provides for negligible current usage when off, yet lightning fast start-up and signal acquisition. Updating the speed information 10 times per second provides tremendous accuracy, while the integrated omni-directional antenna provides for a wide range of installation flexibility.
Many more options available. Contact us for more details!
Fitment:
- 1973-1977 Chevrolet El Camino Base
- 1975-1977 Chevrolet El Camino Classic
- 1977 Chevrolet El Camino Conquista
- 1973-1974 Chevrolet El Camino Custom
- 1973-1977 Chevrolet El Camino SS
- 1973-1977 Chevrolet Malibu Base
- 1974-1977 Chevrolet Malibu Classic
- 1975-1976 Chevrolet Malibu Classic Estate
- 1976-1977 Chevrolet Malibu Classic Landau
- 1977 Chevrolet Malibu Classic Sport
- 1973-1974 Chevrolet Malibu Estate
- 1976 Chevrolet Malibu Landau
- 1977 Chevrolet Malibu Sport
- 1973-1974 Chevrolet Monte Carlo Base
- 1973-1974 Chevrolet Monte Carlo Landau
- 1976 Chevrolet Monte Carlo Landau
- 1973 Chevrolet Monte Carlo S
- 1975-1977 Chevrolet Monte Carlo S
- 1973-1977 GMC Sprint Base
- 1975-1977 GMC Sprint Classic
- 1973-1974 GMC Sprint Custom
- 1975 GMC Sprint High Sierra
- 1976 GMC Sprint Sierra Madre Del Sur
- 1975-1976 GMC Sprint SP
Note: Image is for reference only, actual product may vary slightly.
