Dakota Digital 2-1/16" Round Quad Air Pressure Monitor Gauge Tank Teal ODYR-19-7
DAKOTA DIGITAL QUAD AIR PRESSURE MONITOR
ODYR-19-7 (teal display)
Description from Dakota Digital:

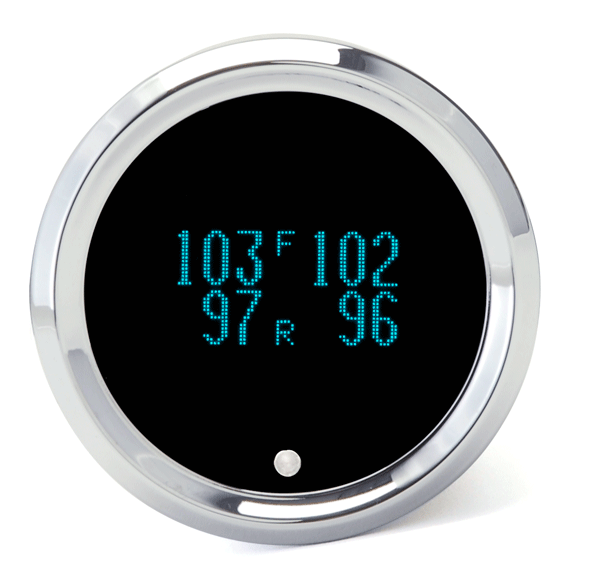

The ODYR-19-7 Quad Air Pressure gauge can monitor and simultaneously display the front and rear pressure on front/ rear or four wheel independent air ride systems to display each air bag for proper pressure. Selectable second screen displays tank pressure.
Dakota Digital Odyssey Series II instruments offer a high brightness, non-glare vacuum fluorescent display for excellent daytime visibility and a lifetime of trouble free use. Odyssey Series II instruments are fully backed by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you've come to expect from Dakota Digital!
Quad air pressure gauge in an industry standard 2-1/16" housing.
Range:
0- 300 psi.
A single sensor will be required for each pressure reading. For example, a full independent (front/back/side to side) air system would require 4 sensors (1 for each airbag). A fifth sensor (SEN-03-9) can be added to monitor the air tank pressure if desired.
Please note: The SEN-03-9 sensors are REQUIRED to make the gauge work, but they areNOT included with the gauge. They can be purchased separately in our store.
Resolution:
1 psi
- Separate control box for easy installation.
- User adjustable high and low warning points can trigger an external light or buzzer. (not included)
- Night dimming.
- Choice of either Chrome or Black bezel.
- Teal display.
- Machined aluminum housing.
The BIM-19-2 (updated version of BIM-19-1) shown in the installation manual is INCLUDED with the gauge. The SEN-03-9 sensors are sold separately.
The following sensors can be purchased separately:
- SEN-03-9 - Air Pressure Sensor 0-300psi, available separately in our eBay store for an additional $37.95.
Brand: Dakota Digital
Part Number: ODYR-19-7
