Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!

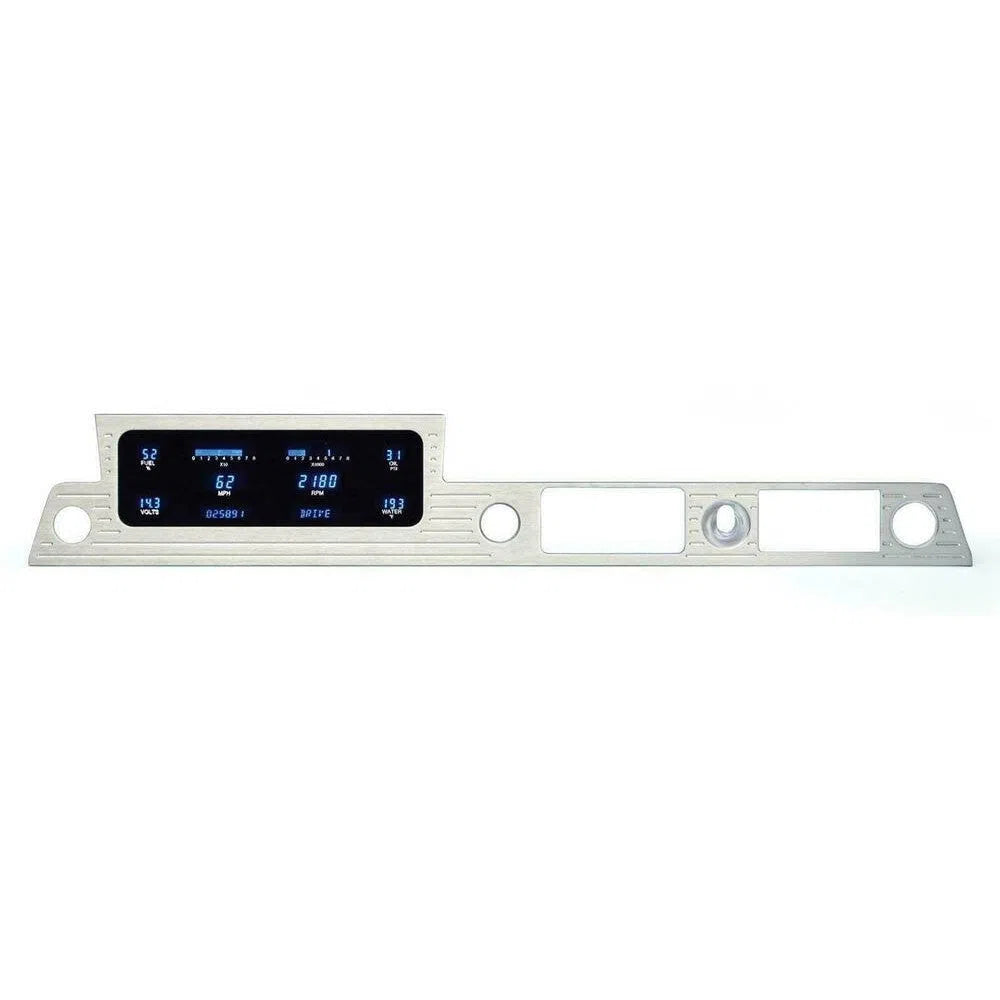

Full 6 Gauge Instrument System includes new aluminum panel for 1961- 62 Chevy Impala.

Please CLICK HERE to see all the options for this item!

Kit Includes:

Gauge Cluster
Computer/ Brain Box
Sensors as Shown

VFD System Includes:



Digital Gauges


Speedometer - 0-255 MPH (optional metric version 0-255 kmh)
Tachometer - 0-17,500 RPM
Oil Pressure - 0-99 psi
Water Temperature - 0-350ºF (optional metric version 40-150ºC)
Fuel Level - 0-99 percent (uses your factory Fuel Sending Unit, or you can purchase a generic SEN-06-1)
Voltmeter - 8-17 VDC
Standard Colors - Blue or Teal


Digital Message Center



Standard Displays:


Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)



Performance Meters:


0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall


Gauges:


Speedometer (0-255 MPH / KM/H) opposite scale of main speedometer.
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)


Built-In Indicators


Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)


Included Sensors:


Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.


Calibration


Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.

Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.

Dakota Digital is proud to introduce the BIM Expansion modules for Dakota Digital VFD, VHX and HDX instrument systems. The introduction of the Dakota Digital BIM modules allow you to add up to an additional 16 gauges, that's right we said SIXTEEN specialty gauges to your vehicle without the need to cut extra holes in the dash or installing pillar and pod mounts to your columns or under the dash.

CLICK HERE - to see all of the Upgrade Options!

Brand: Dakota Digital
Part Number: VFD3-61C-IM-PZ
