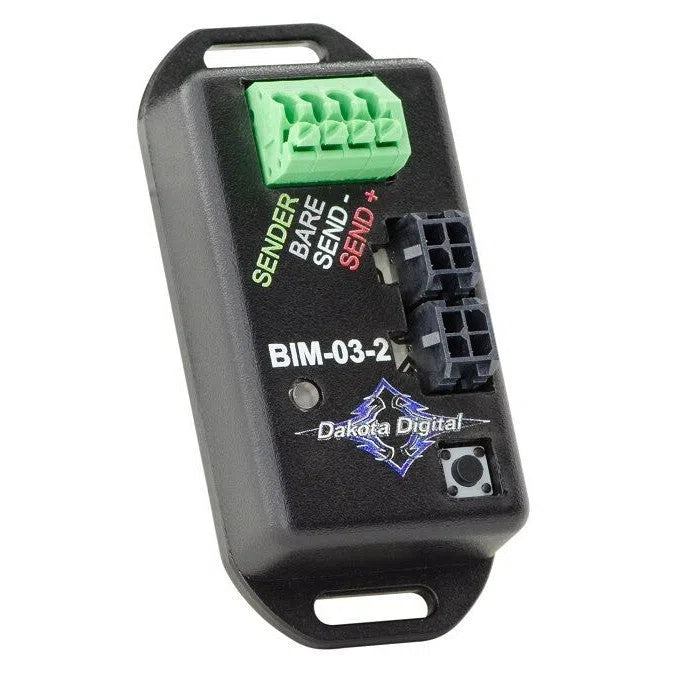

Dakota Digital Fuel Air Boost / Vacuum NOS Pressure Expansion Module BIM-03-2
Dakota Digital Pressure Module - BIM-03-2
Please note: This item may have approx 1 week lead time before it goes out.
The BIM-03-2 is a pressure module that allows you to display additional pressure readings within your VFD3 (rev G), VHX or HDX gauge systems. The BIM-03-2 utilizes Solid State Pressure senders to give you phenomenal accuracy (*see resolutions in the chart below).
Pressure Inputs:
- Pressure (generic fluid or air)
- Fuel Pressure
- Air Pressure
- Boost/Vacuum
- NOS Pressure
Input senders and specifications:
*The BIM-03-2 is designed to supply information to the VFD3 rev. G, VHX and HDX control box instrument systems only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of Expansion Modules.
** BIM-03-2 Supersedes BIM-03-1
Senders sold separately.
SEN-03-8 (0-100psi Fuel Pressure Sender) is available for an additional $75.95.
SEN-03-9 (0-300psi Pressure Sender) is available for an additional $42.70.
SEN-09-6 (30Hg/ 80 PSI Vacuum/ Boost Sender) is available for an additional $118.75.
SEN-23-2 (0-2000psi NOS Pressure Sender) is available for an additional $118.75.
Brand: Dakota Digital
Part Number: BIM-03-2
