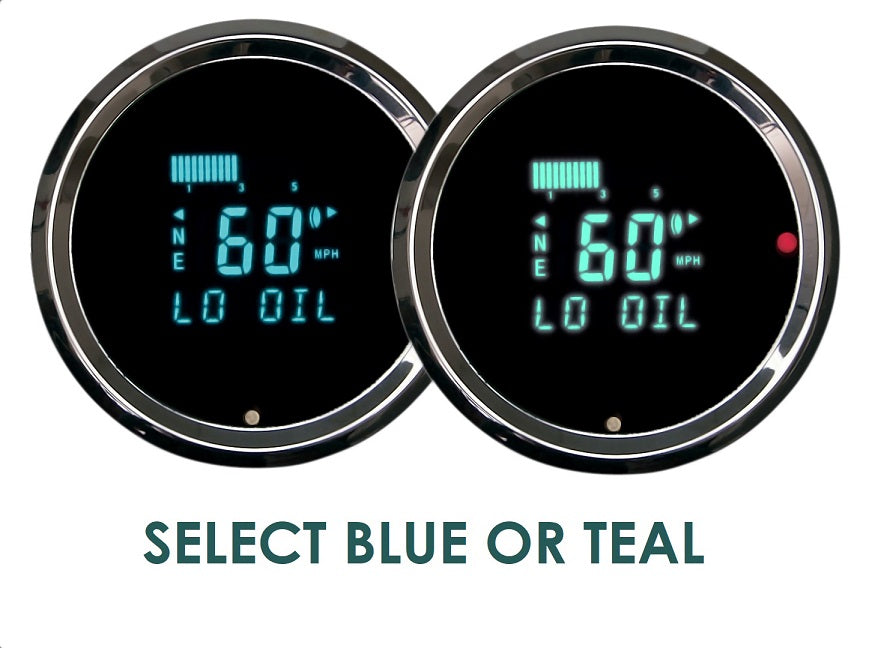

Dakota Digital 1984-1987 Buick Regal Series III Gauge Kit with Teal/Blue Display With Integrated Vac & Boost Gauge

Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!

Note: With Integrated Vac & Boost Gauge

Digital Gauges

• Speedometer: 0 -255 MPH (optional metric version 0-255 kmh)

• Tachometer: 0-17,500 RPM

• Oil Pressure: 0-99 psi

• Water Temperature: 0-300°F (optional metric version 0-150°C)

• Fuel Level: 0-99%

Digital Message Center

Standard Displays

• Odometer (One time user settable, Million Mile)
• Dual (A/B) Trip Meter (0-9,999.9)
• Clock (12 hour)
• Estimated Range/ Miles to Empty

  Performance Meters

• 0-60 MPH Timer (0-100 kmh)
• 1/4 mile time
• 1/4 end speed (trap speed)
• High speed recall
• High RPM recall

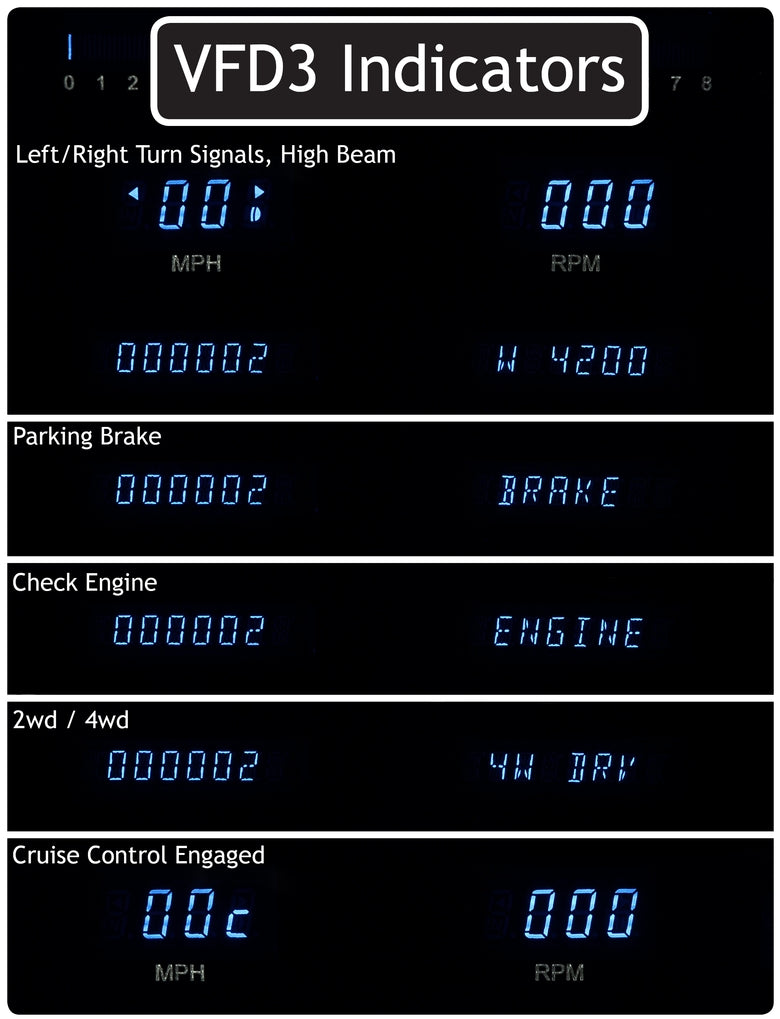

  Built-In Indicators

• Turn Signals (Left/ Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On/ On & Engaged when vehicle is equipped)
• Gear Position (Optional GSS-3000 sensor required)
• 4 x 4 (When vehicle is equipped)
• Wait to Start (When vehicle is equipped)

  Not all OEM indicator lamp functions will be replaced.

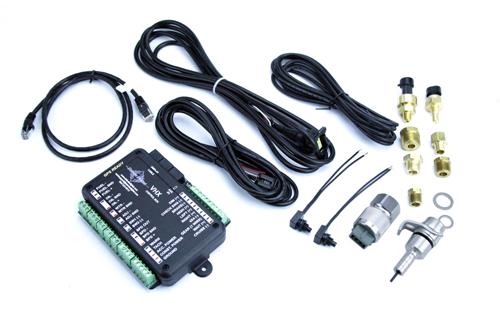

Included

• Water Temperature Sensor : 1/8’ NPT, ground isolated sensor with a 10 ft harness.
• Oil Pressure Sensor : 1/8’ NPT solid state sensor with a 10 ft harness.
• Speedometer Sensor: Replaces OEM style speedometer cables with a 10 ft harness. Sensor requires approximately 5’clearance extending between the cable drive output and any obstruction.
• Bushings: Each kit comes with 1/8’to 1/4’, 3/8’and 1/2’ NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
• Control Box Dimensions: 5.5’x 3.5’x 1’

Calibration and Use:

Push Button Control

Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Optional Add-ons

DIM-1 - Light Dimming Knob: Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.

STA-1000 - OBD II Speedometer/ Tachometer Interface: The STA-1000 plugs directly into the OBDII diagnostic connector, providing a user-adjustable traditional Speedometer, Tachometer and Check-Engine output for your choice of aftermarket instruments.

SGI-100BT - Universal Speedometer and Tachometer Interface:The functionality of three devices in one 4’’ x 2’’ x 1’’ case! The SGI-100BT can adjust/split/recalibrate an electronic speed signal, calibrate a tach signal, and aid in the creation and adjustment of a gas tach signal for diesel swap applications!

BIM-01-2 - ODB II/ Can Interface Module: The BIM-01-2 OBD-II (J1850/CAN) Interface connects directly to the ECM diagnostic port to extract engine and transmission data and supply it to the VFD/ VHX/ HDX/ RTX instrument, making installation a breeze.

BIM-01-2-HLLY - Holley EFI Interface Module: The BIM-01-2-HLLY is designed to read the engine information from the Holley Terminator (including X and X Max), HP, Sniper (except Sniper 2), or Dominator EFI kits. The BIM-01-2-HLLY module is a direct plug in using the supplied 2 or 4 pin harness for simple connection to the Holley EFI system.

PAC-2800BT- Electronic Fan Controller 70 Amp with Bluetooth Control: The PAC-2800BT was designed for the ultimate in flexibility and to be a simple add-on in any application using an electric fan. Included is a 70amp relay, enough for even the most power hungry of cooling fans. Fully programmable, the PAC-2800BT will work with your existing water temp gauge, operating from the temperature sending unit already installed. A dedicated sending unit can be installed for applications without a water temp gauge.

GSS-3000 - Universal Gear Position Sensor: All Instrument packages contain a gear shift indicator display allowing the transmission gear position (Park, Reverse, etc.) to be shown within the message center. The GSS-3000 accommodates automatic transmissions with 2- 4 forward gears and enjoys a simple and straightforward installation.

GPS-50-2 - GPS Speed/ Compass Sender/ BIM: Highly advanced electronic and software design allow the GPS-50-2 to work unlike anything else, with accelerometers and predictive software to compensate for times when GPS inherently struggles: overpasses, mountains, tunnels, heavy tree cover, large buildings, passing large vehicles, etc. Unique electronic architecture provides for negligible current usage when off, yet lightning fast start-up and signal acquisition. Updating the speed information 10 times per second provides tremendous accuracy, while the integrated omni-directional antenna provides for a wide range of installation flexibility.

Many more options available. Contact us for more details!

Brand: Dakota Digital
Part Number: VFD3-82B-REGT-Z

Fitment:

• 1984-1987 Buick Regal

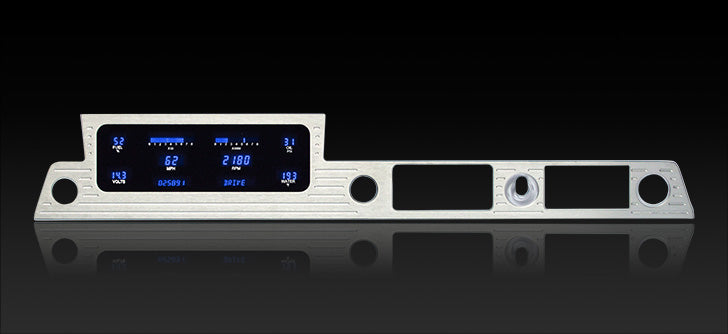

Note: Image is for reference only, actual product may vary slightly.
