RMStator Stator RM01591
Customer Ratings
RMStator Stator RM01591
RMStator Stator RM01591

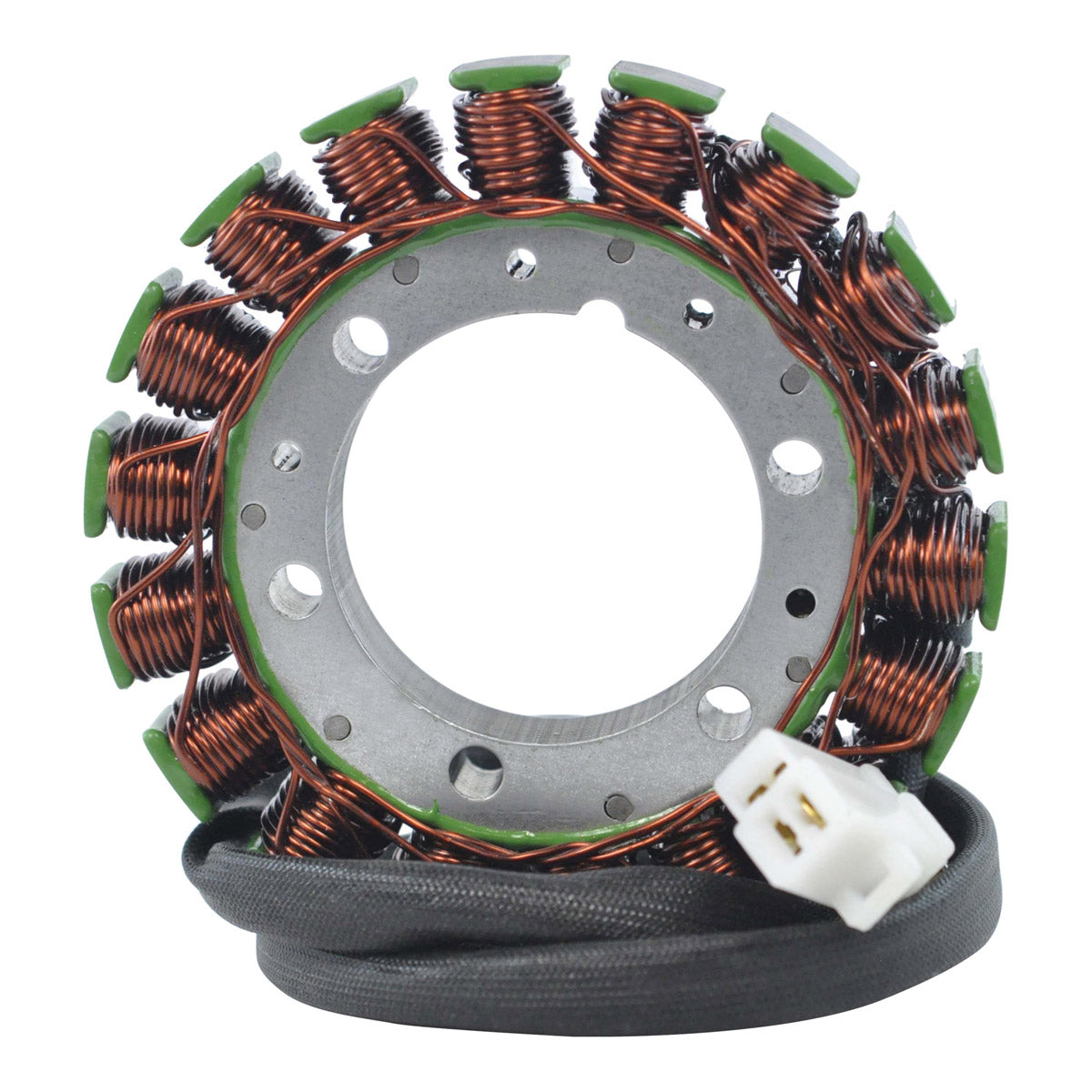

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 54mm
Exterior diameter : 119.5mm
Thickness : 18.3mm
Length of wires stator to grommet : 120mm
Length of wires grommet to plug : 600mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.3ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01591
Fitment:
- 2004 Honda Shadow 750 VT750C
- 2005-2009 Honda Shadow Aero 750 VT750C
- 2007-2009 Honda Shadow Spirit 750 VT750C2
Note: Image is for reference only, actual product may vary slightly.
