RMStator Stator CDI Box RM23009
Customer Ratings
RMStator Stator CDI Box RM23009
RMStator Stator CDI Box RM23009

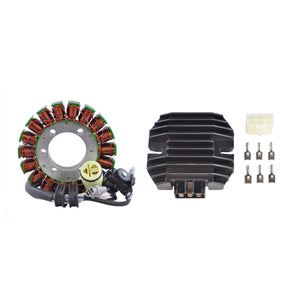

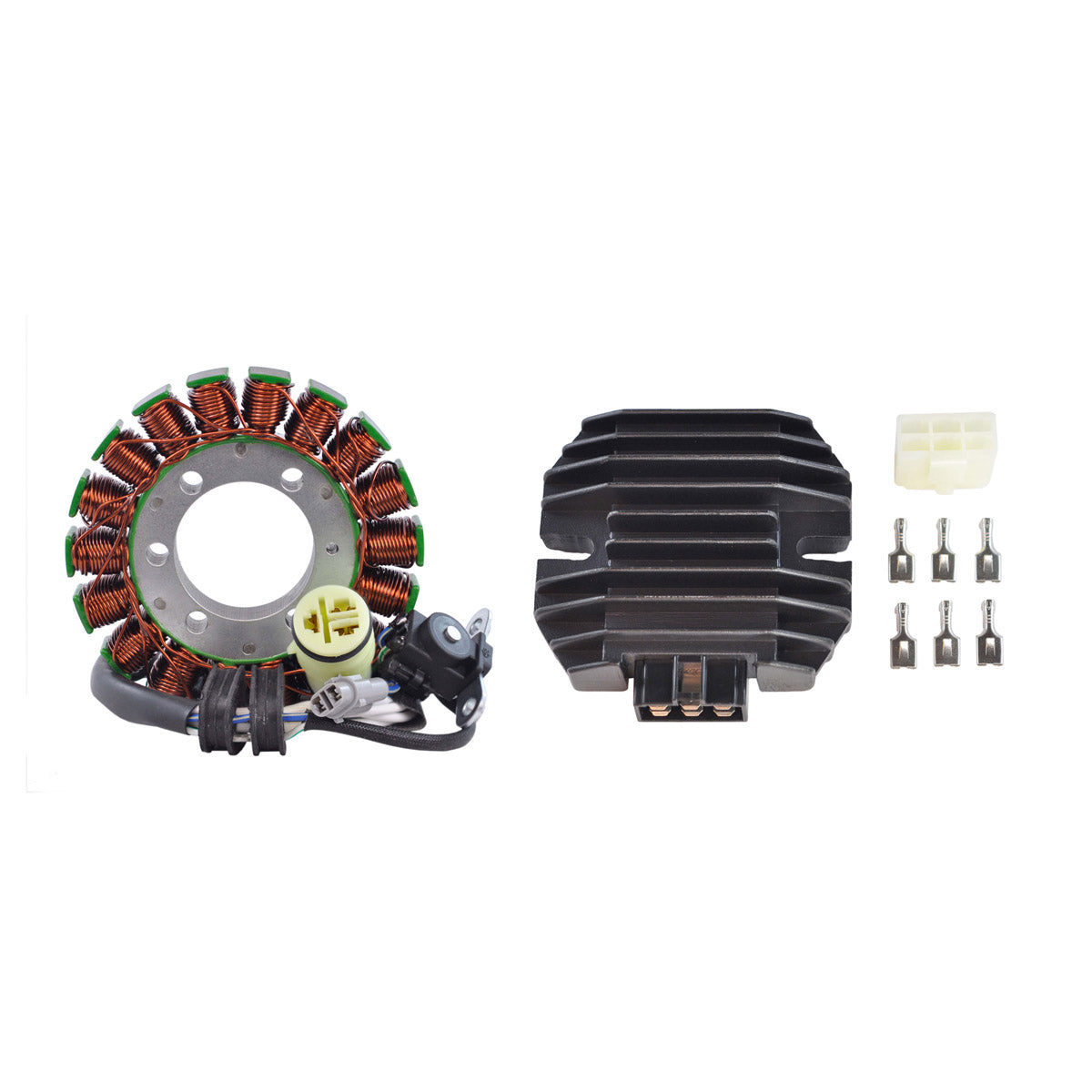

Brand new high output stator 200 watts, AC voltage regulator rectifier and PeakRPM CDI box
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- The Quality exceeds the OEM equipment
- All product shipped are tested
- All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
High output stator 200 watts
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Adjustable timing plate to advance and retard up to 10 degrees included
AC Regulator
- 12 Volts regulator used by Baja winners
- For use with all standard halogen and quartz lights
- Precise voltage control, eliminates light burnout
- Reduce flickering and dimming
- Rated at 225 watts.
PeakRPM CDI Box
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components.
Technical Data
High output stator 200 watts Dimensions
Interior diameter: 41 mm
Exterior diameter: 103 mm
Thickness: 14 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 380 mm
Length of pickup coil's wire to grommet: 100 mm
Other specifications:
Number of wires: 6
Number of plugs: 3
Number of pins: 6
Wire to wire resistance:
Alternator: Black to Yellow = 0.2 ohms +/-20%
Pickup: White/Red to White/Green = 100 ohms +/-20%
Source: Red to Green = 15 ohms +/-20%
AC Regulator Dimensions
Width: 45 mm
Length: 45 mm
Height: 20 mm
Wires length: 130 mm
Other specifications:
Number of wires: 2
Number of terminals: 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A - 10 A / 50 W - 200 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?
Please note: This regulator has two wires, yellow to power and black to ground.
High performance CDI Box Dimensions
Height: 25 mm
Length: 85 mm
Width: 71 mm
Wires length : 120 mm & 140 mm
Fixation holes center to center: 85 mm
Other specifications:
Number of plugs: 8
Number of pins: 2
Please note: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this; we recommend that you rule everything else out before replacing the CDI box.
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM23009
Fitment:
- 1987-1994 Yamaha Banshee 350 YFZ350
Note: Image is for reference only, actual product may vary slightly.
