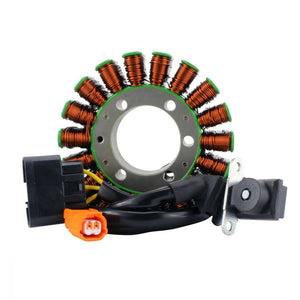

RMStator Generator Stator RMS010-107116

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 107 mm
Thickness: 24 mm
Length of wires stator to grommet: 110 mm
Length of wires grommet to plug: 370 mm & 835 mm
Length of pickup coil's wire to grommet: 80 mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Between each Yellow = 0.6 ohms +-20%
Pickup: Blue/Yellow to Green = 116 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-107116

Fitment:

• 2014-2016 Honda Rancher 420 TRX420FA1 4x4 Auto DCT
• 2014-2021 Honda Rancher 420 TRX420FA2 4x4 Auto DCT EPS
• 2015-2021 Honda Rancher 420 TRX420FA5 4x4 Auto DCT IRS
• 2015-2019 Honda Rancher 420 TRX420FA6 4x4 Auto DCT IRS EPS
• 2021 Honda Rancher 420 TRX420FA6 4x4 Auto DCT IRS EPS

Note: Image is for reference only, actual product may vary slightly.
