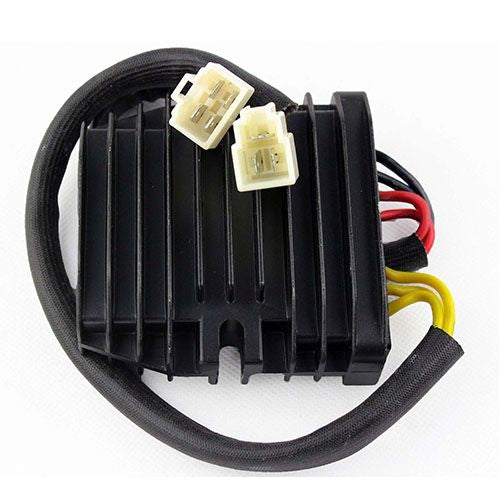

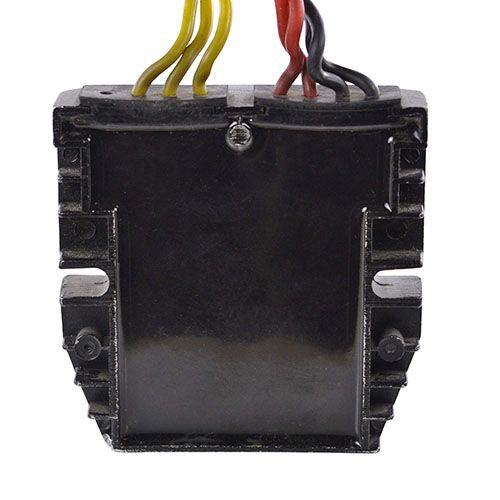

RMStator Mosfet Regulator Rectifier RM30507H
Customer Ratings
RMStator Mosfet Regulator Rectifier RM30507H
RMStator Mosfet Regulator Rectifier RM30507H
Brand new Mosfet Voltage Regulator Rectifier
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- All shipped products are tested

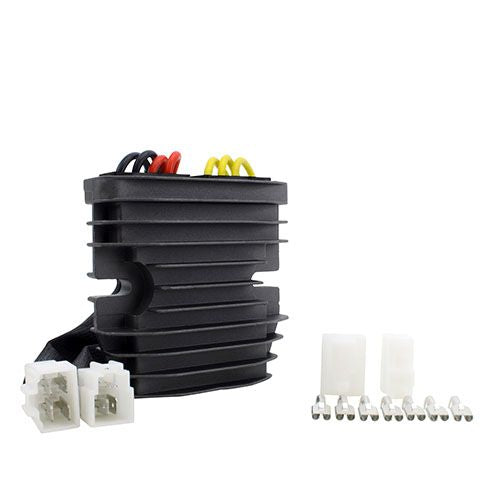

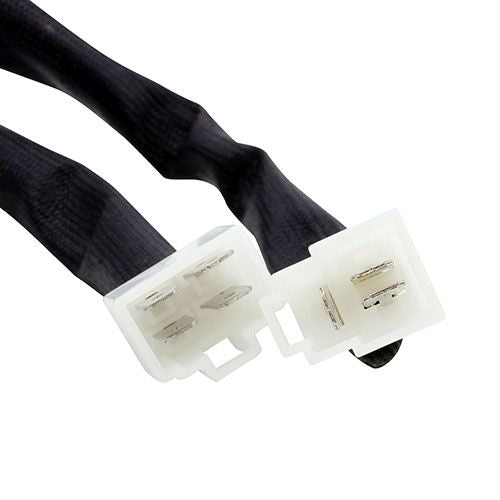

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Technical Data
Dimensions :
Width: 90 mm
Length: 94 mm
Height: 30 mm
Fixation holes center to center: 75 mm
Wires Length: 320 mm & 235 mm
Other specifications :
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM30507H
Fitment:
- 2008-2009 Ducati 1098 R Superbike
- 2007-2008 Ducati 1098 S Superbike
- 2009-2011 Ducati 1198 Superbike
- 2010 Ducati 1198 R Corse SE Superbike
- 2009-2010 Ducati 1198 S Superbike
- 2003-2007 Ducati 749 Biposto
- 2004-2006 Ducati 749 R Superbike
- 2003-2006 Ducati 749 S Superbike
- 2008-2013 Ducati 848 Super Bike
- 2003-2007 Ducati 999 Monoposto
- 2003-2006 Ducati 999 R Superbike
- 2003-2006 Ducati 999 S Superbike
- 2003-2006 Ducati Multistrada 1000 DS
- 2012-2015 Ducati Streetfighter 848
- 2009-2013 Ducati Streetfighter S 1099
- 2002-2005 Triumph Daytona 600
- 2002-2005 Triumph Daytona 650
- 2006-2020 Triumph Daytona 675
- 1997-2006 Triumph Daytona 955i
- 2002-2005 Triumph Speed Four 600
- 2005-2018 Triumph Speed Triple 1050
- 1994-1998 Triumph Speed Triple 900
- 1999-2004 Triumph Speed Triple 955
- 2010-2020 Triumph Sprint GT 1050
- 2000-2004 Triumph Sprint RS 955
- 2005-2012 Triumph Sprint ST 1050
- 2019-2020 Triumph Sprint ST 1050
- 1999-2004 Triumph Sprint ST 955
- 2009-2010 Triumph Street Triple R 675
- 2001-2007 Triumph Tiger 955
- 2007-2012 Triumph Tiger 1050
Note: Image is for reference only, actual product may vary slightly.
