RMStator Stator And Voltage Regulator Rectifier Kit For 2000-2001 Honda CBR929RR RM22967
Customer Ratings
RMStator Stator And Voltage Regulator Rectifier Kit For 2000-2001 Honda CBR929RR RM22967
RMStator Stator And Voltage Regulator Rectifier Kit For 2000-2001 Honda CBR929RR RM22967
You save 15% off the items price combined, when buying a kit.

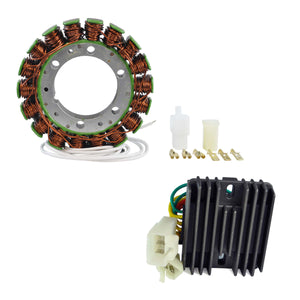

Brand new stator and voltage regulator rectifier kit
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Stator- You must re-install your original connector and grommet (see picture).
- Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Connector included
- The Quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components.
Technical Data
Stator
Dimensions :
Interior diameter : 53mm
Exterior diameter : 114mm
Thickness : 16mm
Length of wires stator to terminals : 1220mm
Other specifications :
Number of wires : 3
Number of plugs : 0
Number of pins : 3
Wire to wire resistance :
Alternator : White between each White = 0.2 ohms +/-20%
Voltage regulator rectifier
Dimensions:
Width:103mm
Length: 80mm
Height: 33mm
Wires length: 300mm
Fixation holes center to center: 70mm
Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22967
Fitment:
- 2000-2001 Honda CBR929RR
Note: Image is for reference only, actual product may vary slightly.
