RMStator Mosfet Red Machined Aluminum Mosfet Regulator RMS022-106226
Customer Ratings
RMStator Mosfet Red Machined Aluminum Mosfet Regulator RMS022-106226
RMStator Mosfet Red Machined Aluminum Mosfet Regulator RMS022-106226

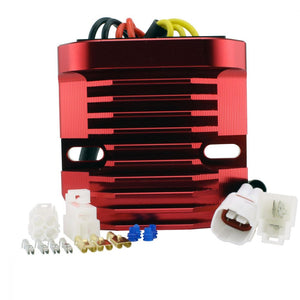

Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator
Our new RMSTATOR machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATOR red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- All shipped products are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Technical Data
Dimensions :
Width : 92 mm
Length : 92 mm
Height : 30 mm
Fixation holes center to center : 75 mm
Wires length: 300 mm
Other specifications :
Number of plugs : 2
Number of pins : 7
Number of wires : 7
Minimum Charging Voltage : 14.5 V +/- 0.5 V
Maximum Charging Current : 50 A / 500 W
Open Circuit Voltage : < 15 V
Operation Temperature : -20? C to 85? C
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS022-106226
Fitment:
- 2007-2009 Suzuki Bandit 1250S GSF1250S
- 2016 Suzuki Bandit 1250S GSF1250S
- 2008-2009 Suzuki B-King GSX1300BK
- 2005-2009 Suzuki Boulevard C50 VL1800
- 2011-2017 Suzuki Boulevard C50 VL1800
- 2019 Suzuki Boulevard C50 VL1800
- 2004 Suzuki Boulevard C50T VL800T
- 2006-2009 Suzuki Boulevard C50T VL800T
- 2011-2017 Suzuki Boulevard C50T VL800T
- 2005-2009 Suzuki Boulevard C90 VL1500
- 2005-2009 Suzuki Boulevard C90T VL1500T
- 2005-2009 Suzuki Boulevard M50 VZ800
- 2013-2017 Suzuki Boulevard M50 VZ800
- 2011 Suzuki GSX1250FA ABS
- 2005-2009 Suzuki GSXR1000
- 2011-2016 Suzuki GSXR1000
- 2006-2009 Suzuki GSXR600
- 2011-2019 Suzuki GSXR600
- 2006-2009 Suzuki GSXR750
- 2011-2019 Suzuki GSXR750
- 2015-2016 Suzuki GSXS750
- 2008-2009 Suzuki Hayabusa GSX1300R
- 2011-2012 Suzuki Hayabusa GSX1300R
- 2001-2005 Suzuki Intruder Volusia 800 VL800
- 2008-2009 Suzuki Katana 650 GSX650F
- 2005-2006 Suzuki King Quad 700 LTA700X 4x4
- 2009 Suzuki SFV650 Gladius
- 2014-2015 Suzuki SFV650 Gladius
- 2017 Suzuki SV650
- 2008-2017 Suzuki Vstrom 650 DL650
- 2019 Suzuki Vstrom 650 DL650
Note: Image is for reference only, actual product may vary slightly.
