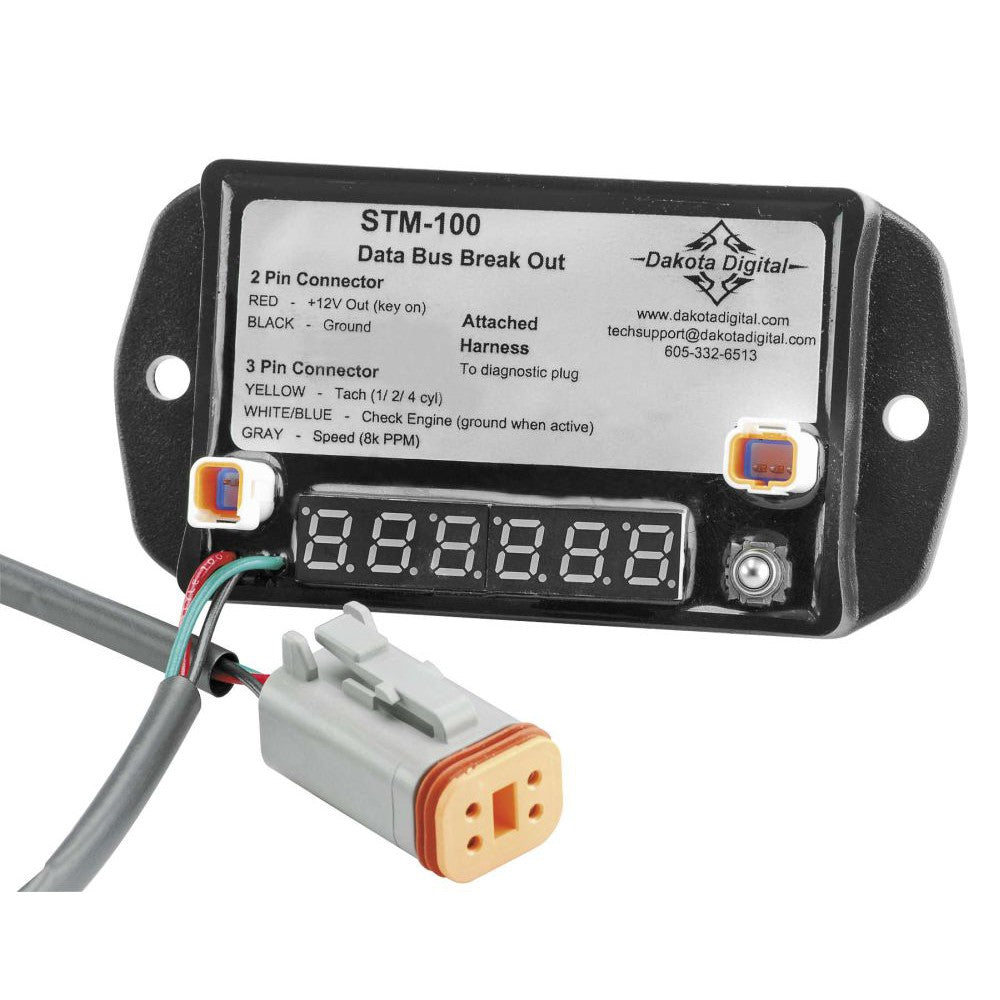

Dakota Digital STM-100 Data Bus Break Out - STM-100
Customer Ratings
Dakota Digital STM-100 Data Bus Break Out - STM-100
Dakota Digital STM-100 Data Bus Break Out - STM-100
NOTES:
- Allows you to interface universal Dakota Digital and most aftermarket speedometers and/or tachometers with the data bus signal created from the stock Harley-Davidson ECU 04-13 excluding 11-13 Softail®, Dyna® models. Connects to the bike's data bus and outputs traditional analog signals for a gauge of your choice. Outputs provided for accessory power and ground, tachometer signal adjustable for 1-, 2- or 4-cylinder outputs, speedometer signal 8,000 rpm in addition to the check engine signal, normally only available on the data bus. In addition to wired outputs, the STM-100 contains a digital readout which allows for both reading back and clearing diagnostic trouble codes, similar to a scan tool.
Description:
- Made in USA.
Brand: Dakota Digital
Part Number: STM-100
Note: Image is for reference only, actual product may vary slightly.
