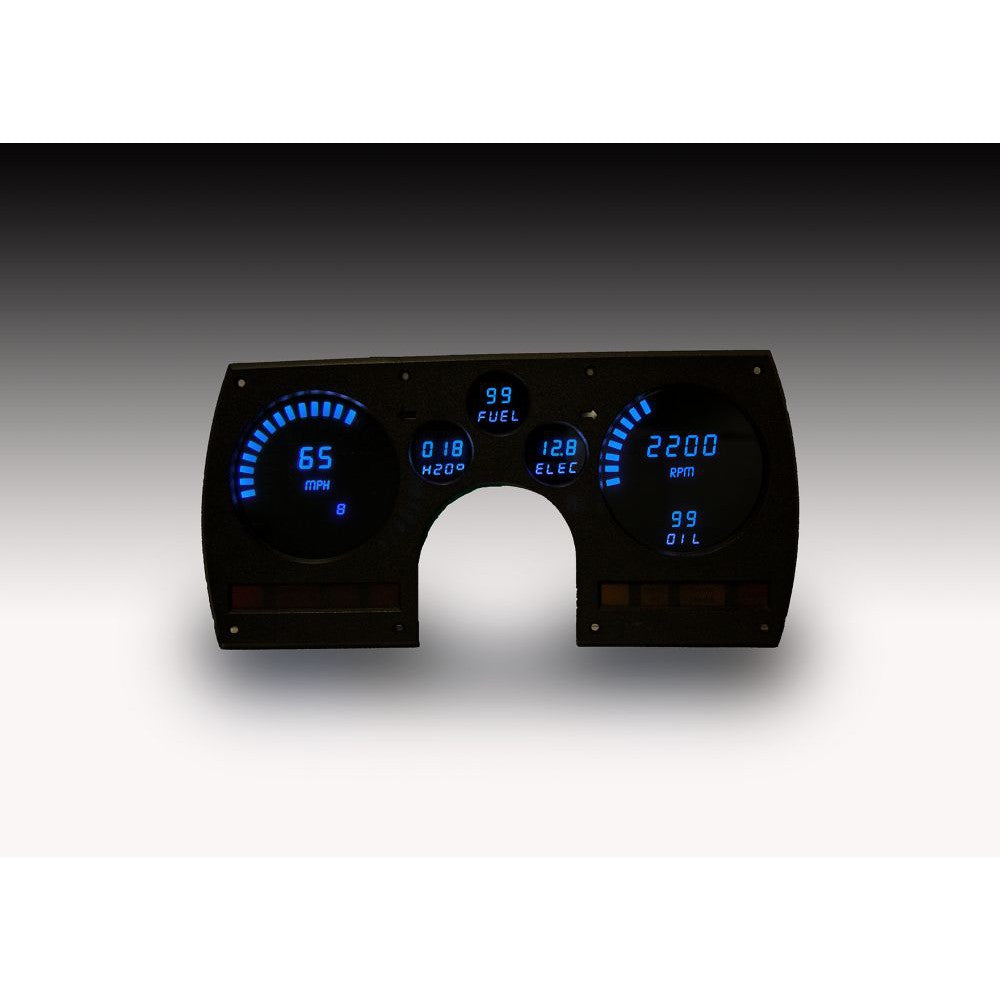

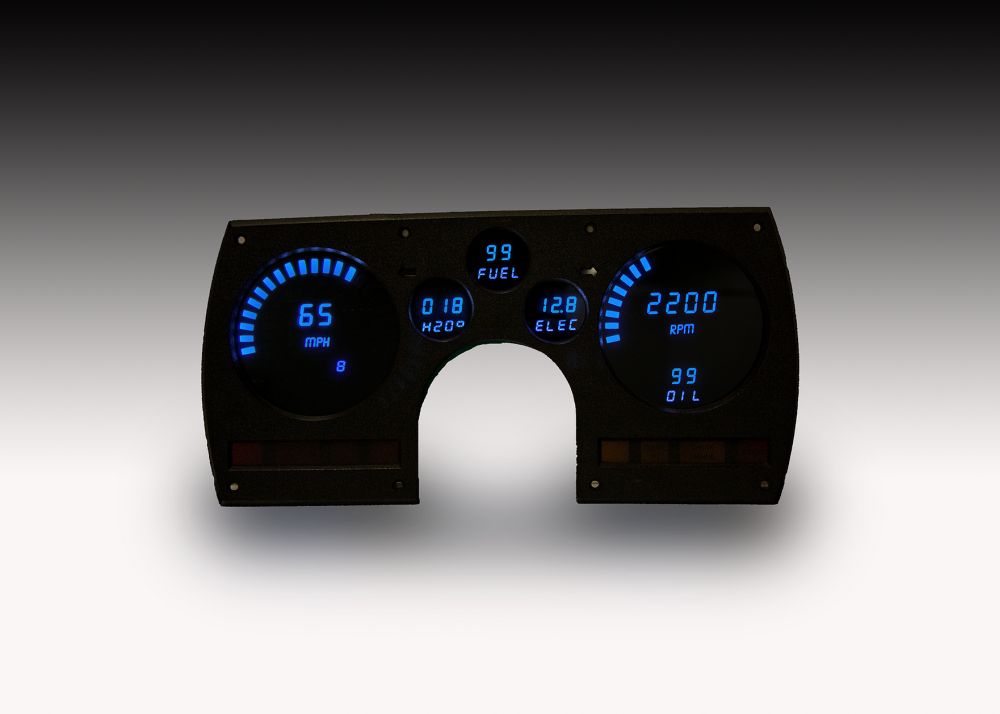

Intellitronix 1982-1990 Camaro LED Digital DP4003 - Blue

You will love your 1982-1990 Camaro with a best-in-class 1982-1990 Camaro LED Digital Replacement Gauge Panel from Intellitronix. The 82-90 Camaro dash comes with direct fit printed circuit boards, custom fit smoked plexiglass faceplate, universal water temperature S8013, and speedometer S9013 sending units including sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.

Speedometer reads up to 255 mph and includes odometer, trip meter, one button calibration, regardless of tire size, gear ratio, or transmission, 0-60 time, ¼ mile elapsed time and high-speed recall. The speedometer can be used with electronic cruise control senders or use included S9013 (universal speedometer sending unit) if your vehicle is not equipped with a functional cruise control. Everything directly fits into your existing housing, but you may need to run some new wires to the speed sensor.

Tachometer displays 0-9999 RPM in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999). Fully programmable for 1-2-4-6-8-10-12-cylinder engines.

Water Temperature displays a range of 18–255°F.

Oil Pressure shows a range of 0–99 PSI.

Voltmeter displays 7.0-25.5 volts range. No sending unit required.

Fuel Level reads 0 – 99% range in 1% increments. User programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders.

The panel resuses factory turn signals, highbeams and brake lights

BEZEL NOT INCLUDED

FEATURES:

AVAILABLE COLORS: White, Red, Blue and Green

SPEEDOMETER READING: Order your speedometer in either MPH or KPH

ACCESSORIES: All required sending and sensor units are included.

Brand: Intellitronix
Part Number: DP4003B

Note: Image is for reference only, actual product may vary slightly.
