Intellitronix 1967-1972 Chevy Truck LED Digital Bargragh BG6003 - Red

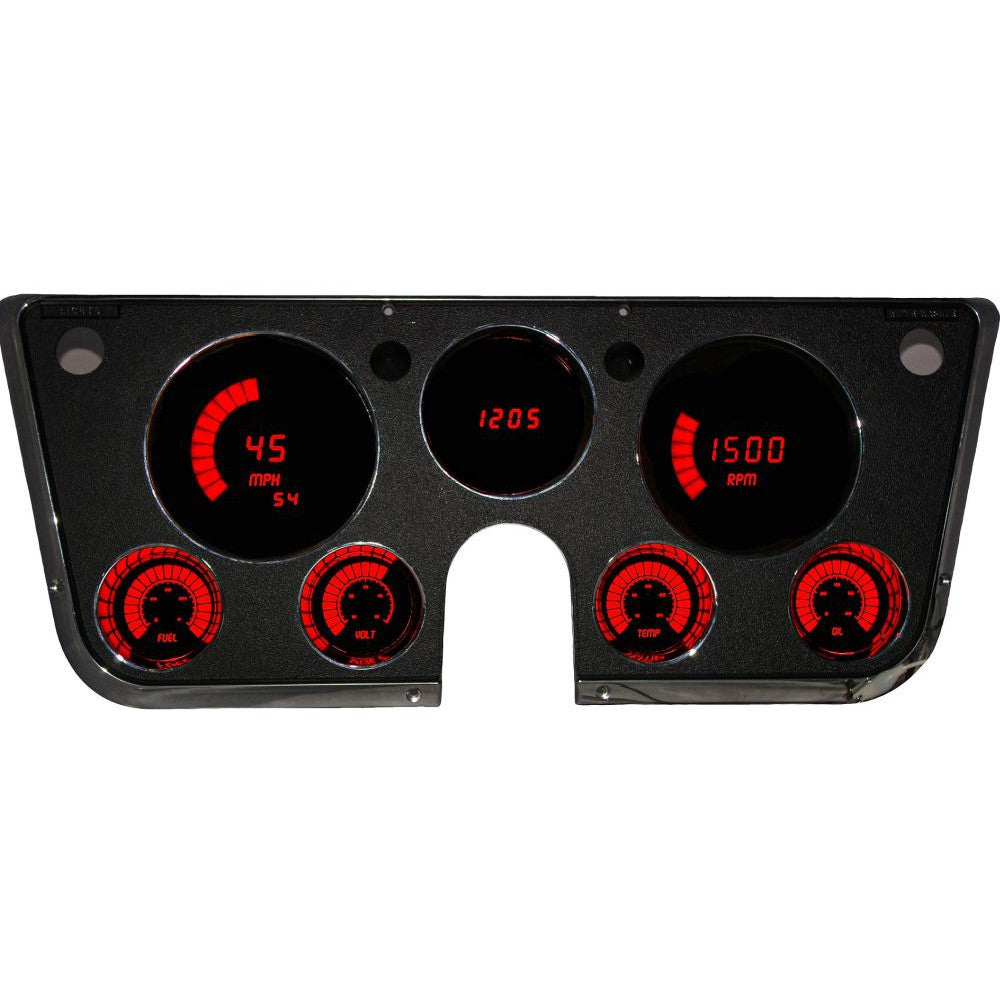

Your vintage 1967-72 Chevy Truck will be the talk of the town with a new 67-72 Chevy Truck LED Digital Bargragh Direct Fit Dash Panel Replacement by Intellitronix. Fully loaded with direct fit printed circuit boards, custom fit smoked Plexiglas faceplate, universal temperature, oil pressure, and speedometer sending units for vehicles without electronic transmission or cruise control, and instructions for installation.

A custom-designed LED bargraph is microprocessor controlled with peak rpm memory recall, and automatic night dimming, shift light, and RPM activated switch that can handle 3 amps. It also includes in-dash mounting hardware and installation instructions. It has a 0-9999 readout in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999). It works on 1-2-4-6-8-10-12-cylinder engines. Red is best for night driving. Size dimensions are 3 3/8 inches in diameter and 1 ½ inches deep.

Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 with universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.

Temperature display reads 160° to 240°F range. Sender S8013 is included. Please add a note if you need a 3/8in bushing, because we send the more common 1/2in bushing--otherwise, you will have to supply the bushing on your own.

The Oil Pressure display reads 0-80 PSI range plus Oil Pressure sender is included.

Voltmeter display with 12-16 volt range and no sending unit is required.

Fuel Level display with Empty to Full in 1/4 increments works with most existing fuel level sending unit. The gauge is set at industry standard 0-90. Please include a note in your order, if your sender works off a different Ohms range.

The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.

Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your truck to the next level.

BEZEL NOT INCLUDED

FEATURES:

ACCESSORIES: All required sending and sensor units are included.

Brand: Intellitronix
Part Number: BG6003R

Note: Image is for reference only, actual product may vary slightly.
