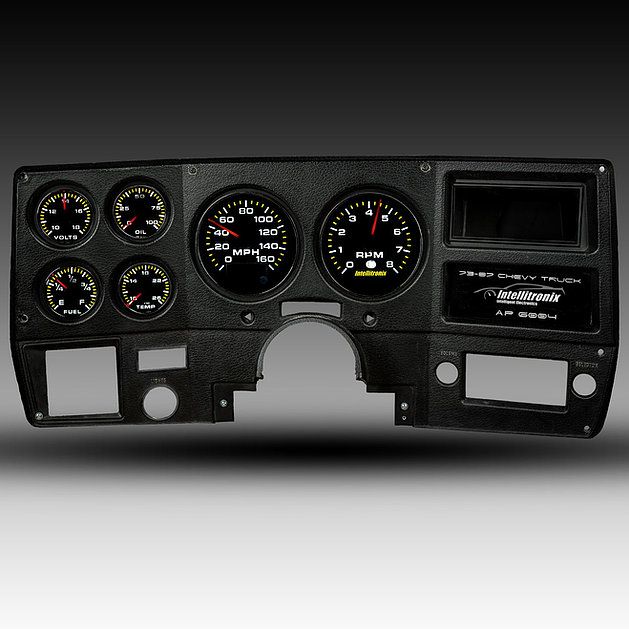

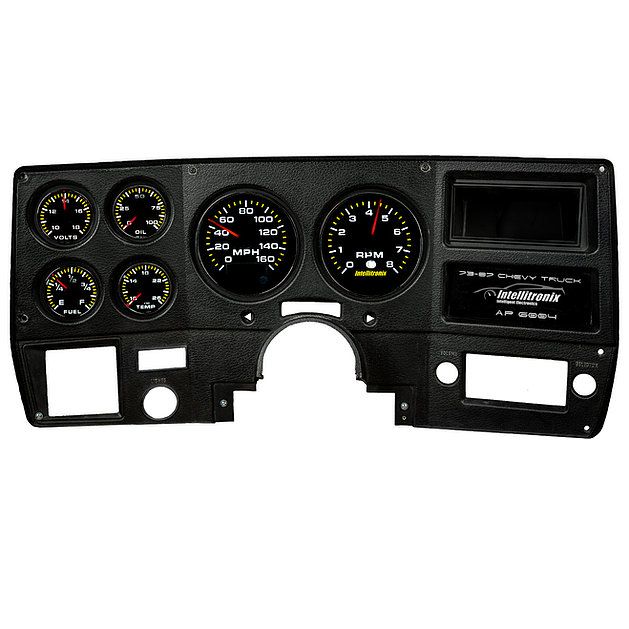

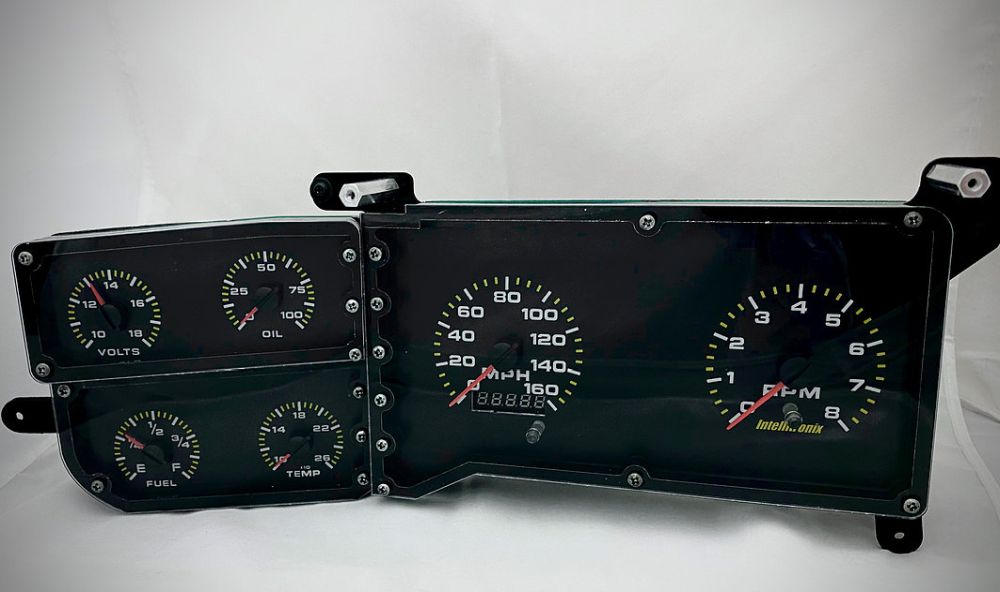

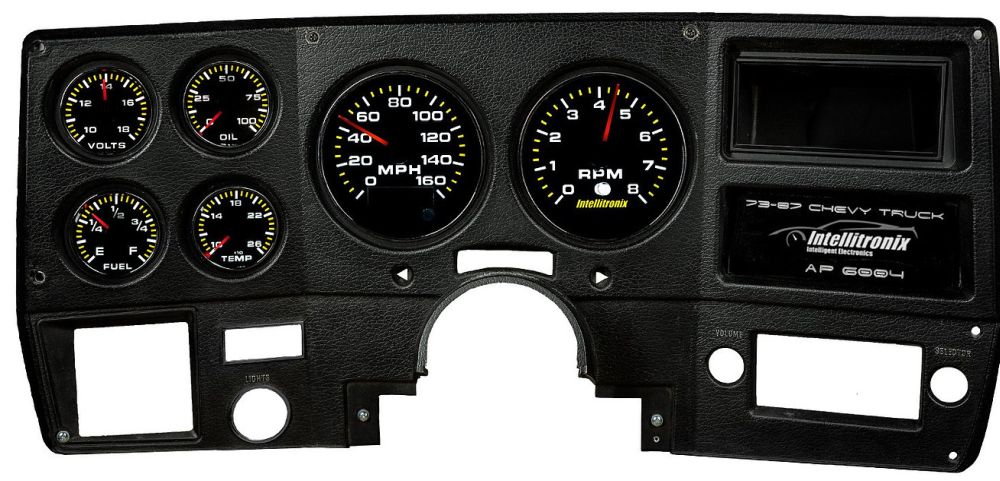

Intellitronix 1973-1987 Chevy C10/K10 Analog Gauge Panel AP6004 - Black

Our black polycarbonate subsurface with brush stroke finish makes it an unforgettable show stopping dash. The 73-87 Chevy Truck Analog Replacement Gauge Panel comes complete with speedometer, Tachometer, fuel level, voltmeter, oil pressure, and water temperature gauges, acrylic plexiglass faceplate, hardware and all required sending units.

Works with any mechanical or electronic transmissions or you can purchase separately a GPS speedometer sender from Intellitronix.

Speedometer reads up to 160 MPH includes one button calibration, regardless of tire size, gear ratio, or transmission, odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time, all with the push of a button!

Tachometer reads 0-8000 RPM in 1000 RPM increments with 4-6-8 cylinder selection

Voltmeter with high and low voltage reads from 10.0 to 18.0 and no sending unit required.

Oil Pressure Gauge reads from 0-100 psi. Oil pressure sender included.

Water Temperature Gauge reads from 100 to 260 °F range with sending unit included.

Fuel Gauge reads in 1/4 increments and is programmed for 0-90 ohms fuel senders.

Indicators included: check engine, high beam, turn signals & brake light.

Includes GM universal speedometer sender, water temperature sender and oil sender Please add a note at checkout if you need a 3/8in bushing because we send the more common 1/2in bushing--otherwise, you will have to supply the bushing on your own, and oil pressure sender.

Automatic nighttime dimming.

Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.

BEZEL NOT INCLUDED

FEATURES: Check Engine, High Beam, Turn Signals, Brake Light

ACCESSORIES: All required sending and sensor units are included.

Brand: Intellitronix
Part Number: AP6004

Note: Image is for reference only, actual product may vary slightly.
