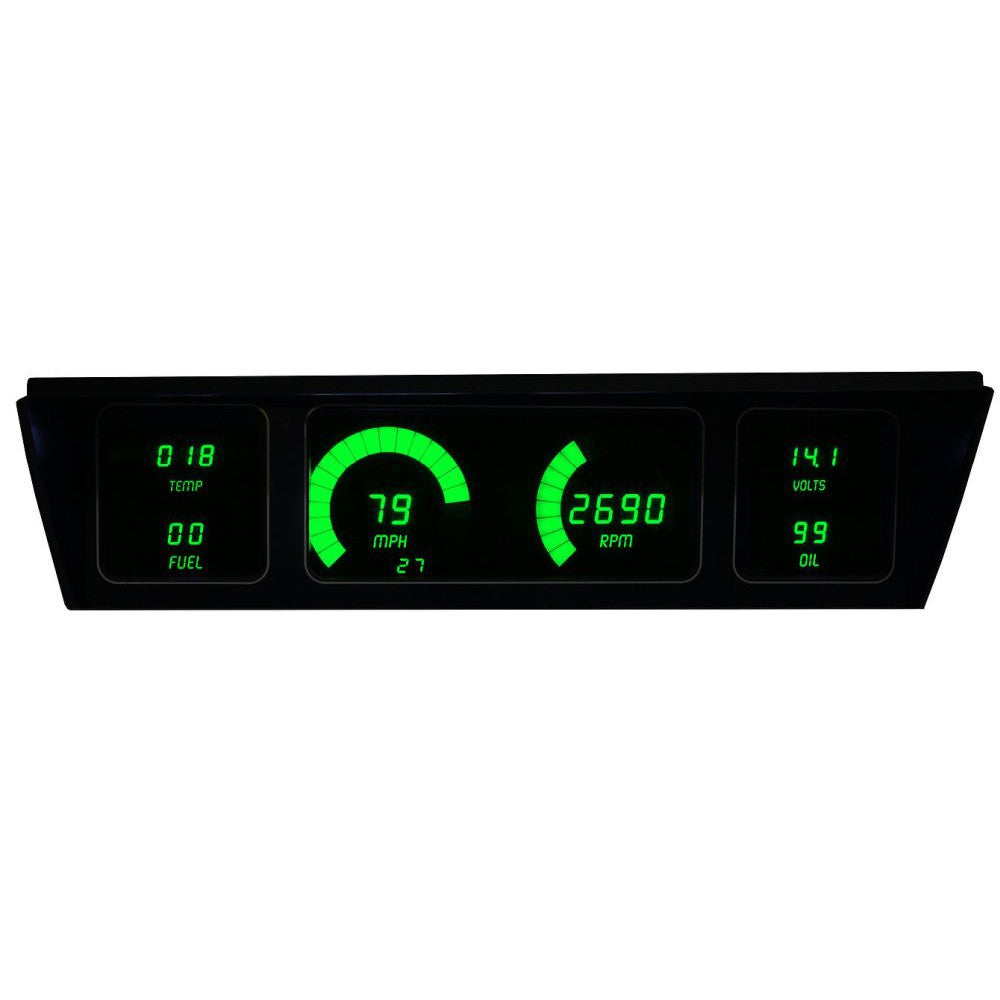

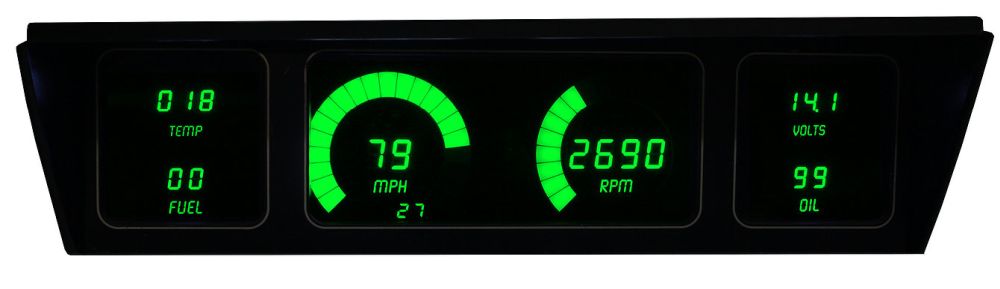

Intellitronix 1977-1990 Impala Caprice LED Digital DP1211 - Green

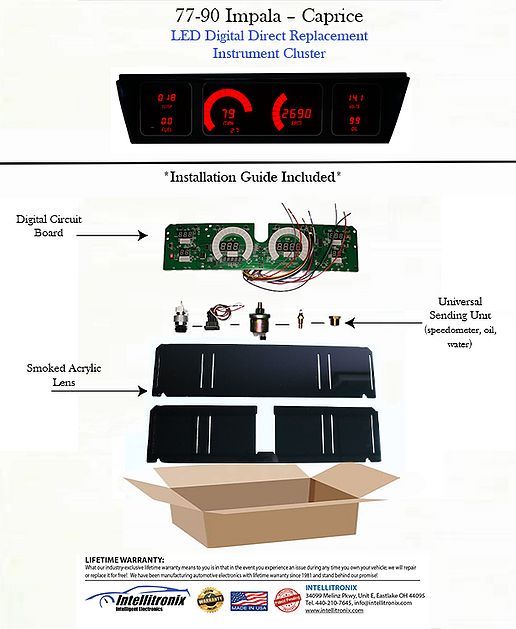

Intellitronix elegant 1977-1990 Impala and 1977-1990 Caprice LED Digital Replacement Gauge Panel for your 1977-1990 Chevrolet Impala or Caprice will set the world afire. The vibrant and crisp easy to read lights will increase accuracy and give the interior of your car a completely high-tech look. Comes complete with direct fit printed circuit boards, custom fit smoked plexiglass faceplate, universal temperature sending unit, oil pressure sending unit, and speedometer sending unit with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.

Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration; regardless of tire size, gear ratio or transmission, 0-60 time with 1⁄4 mile elapse time plus high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013, universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.

Tachometer displays 0-9900 RPM in 100 RPM increments.

Water Temperature displays 100-300°F range with sender S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please just add a note at check-out; otherwise, you will have to get the correct bushing on your own.

Oil Pressure reads 0-100 PSI range and the oil pressure sender is included.

Voltmeter displays 7.0-18.0 volts range and no sending unit is required.

Fuel Level reads 0-99% range in 1% increments and works with existing GM fuel level sending unit.

The 1977-1990 Chevrolet Impala and 1977-1990 Chevrolet Caprice with this elegant LED Digital Replacement Gauge Panel features turn signals and high beam indicator.

BEZEL NOT INCLUDED

FEATURES:

AVAILABLE COLORS: White, Red, Blue and Green

SPEEDOMETER READING: Order your speedometer in either MPH or KPH

ACCESSORIES: All required sending and sensor units are included.

These gauges fit into separate gauge pods, so if your gauge cluster does not have separate gauge pods, then DO NOT order this product.

Brand: Intellitronix
Part Number: DP1211G

Note: Image is for reference only, actual product may vary slightly.
