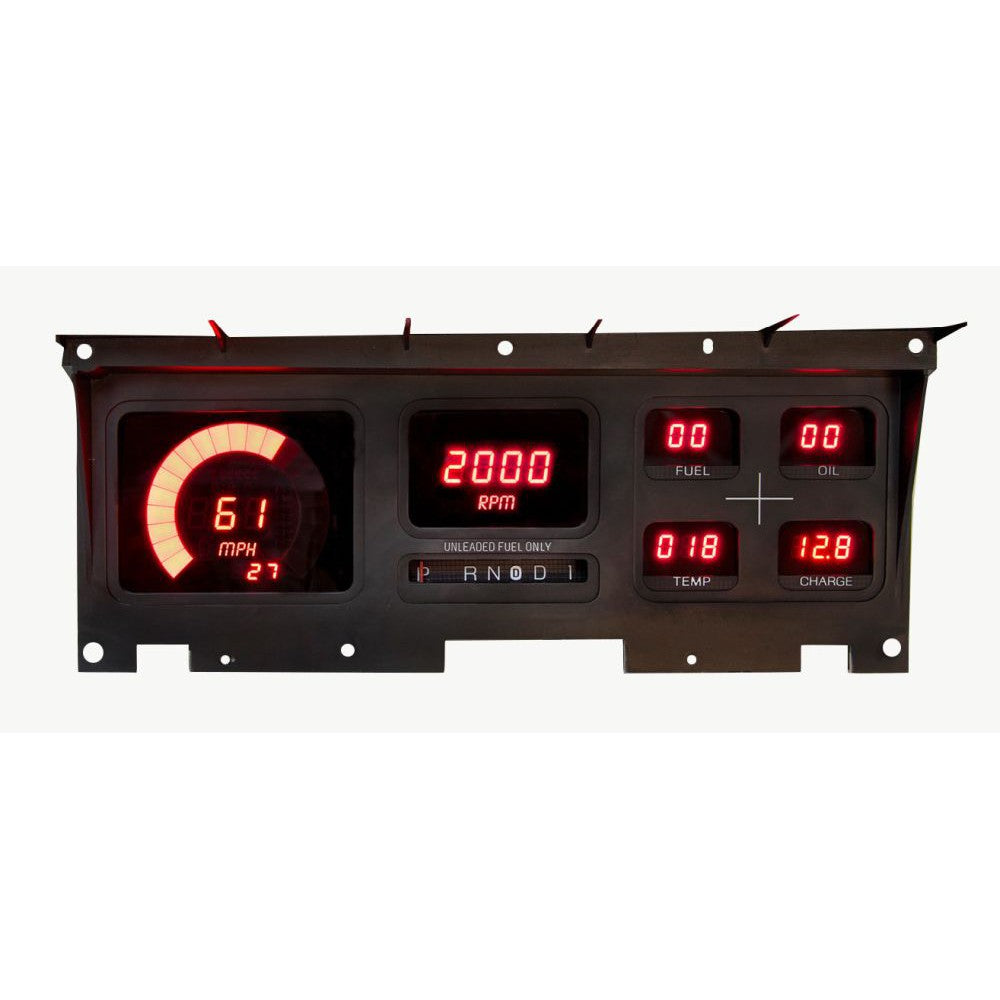

Intellitronix 1980-1986 Ford Truck F Series LED Digital DP1011 - Red

Dress up your 1980-86 Ford Truck F Series with the latest LED Digital Replacement Gauge Panel by Intellitronix. This smashing panel comes complete with direct fit printed circuit boards, custom fit smoked plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.

Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9024 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.

Tachometer displays 0-9900 RPM in 100 RPM increments.

Water Temperature display with 18-255°F range with sender S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request.

Oil Pressure display with 0-100 PSI range. Oil pressure sender included.

Voltmeter displays with 7.0-18.0 volt range and no sending unit is required.

Fuel Level display with 0-99% range in 1% increments and works with existing Ford fuel level sending unit.

The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.

BEZEL NOT INCLUDED

FEATURES:

AVAILABLE COLORS: White, Red, Blue and Green

SPEEDOMETER READING: Order your speedometer in either MPH or KPH

ACCESSORIES: All required sending and sensor units are included.

Brand: Intellitronix
Part Number: DP1011R

Note: Image is for reference only, actual product may vary slightly.
