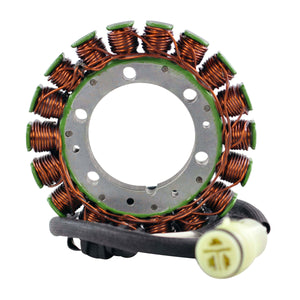

RMStator High Output Stator RM01074
Customer Ratings
RMStator High Output Stator RM01074
RMStator High Output Stator RM01074
Brand new high output aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 14 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 500 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : White to White = 0.4 ohms +/-20%
Alternator : White to Ground = O.L. on Display
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01074
Fitment:
- 2003-2012 Kawasaki Prairie 360 KVF360A 4x4
- 1999-2002 Kawasaki Prairie 400 KVF400A 4x4
Note: Image is for reference only, actual product may vary slightly.
