RMStator Stator CDI Box Coil Kit RM22969
Customer Ratings
RMStator Stator CDI Box Coil Kit RM22969
RMStator Stator CDI Box Coil Kit RM22969
WE HIGHLY RECOMMEND REPLACING THE VOLTAGE REGULATOR AT THE SAME TIME AS THE CDI UNIT.
IT IS THE REASON FOR CDI FAILURES.

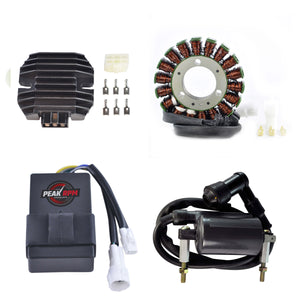

Brand New Kit Stator + Regulator Rectifier+ CDI Box + External Ignition Coil
- All shipped products are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Stator- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- The Quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- Our part is a Plug-and-play unit, direct fit, and easy to install
- Original timing curve
- Higher grade of electronic components
- The Quality exceeds the OEM equipment
There is more than one possible CDI Box for this model, please compare your part with our picture.
Here is the other possible part : RM02006
External ignition coil
- Highest grade of lamination materials
- The Quality exceeds the OEM equipment
If your old parts are defective, RM Stator offer replacements parts of high qualities at a fraction of the cost of genuine parts.
Technical Data
Stator
Interior diameter : 28mm
Exterior diameter : 102mm
Thickness : 20mm
Length of wires stator to terminals: 700mm
Other specifications :
Number of wires : 3
Number of plugs : 0
Number of pins : 3
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Dimensions Voltage Regulator Rectifier
Height: 28mm
Length: 89mm
Width: 80mm
Fixation holes center to center: 70mm
Other Specifications:
Number of plugs: 1
Number of pins : 6
Dimensions CDI Box
Height: 22mm
Length: 80mm
Width: 74mm
Other Specifications:
Number of plugs: 2
Number of pins: 5
External Ignition Coil:
Fixation holes center to center: 80mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22969
Fitment:
- 1992-1998 Kawasaki Bayou 300 KLF300B
- 1989-1998 Kawasaki Bayou 300 KLF300C 4x4
Note: Image is for reference only, actual product may vary slightly.
